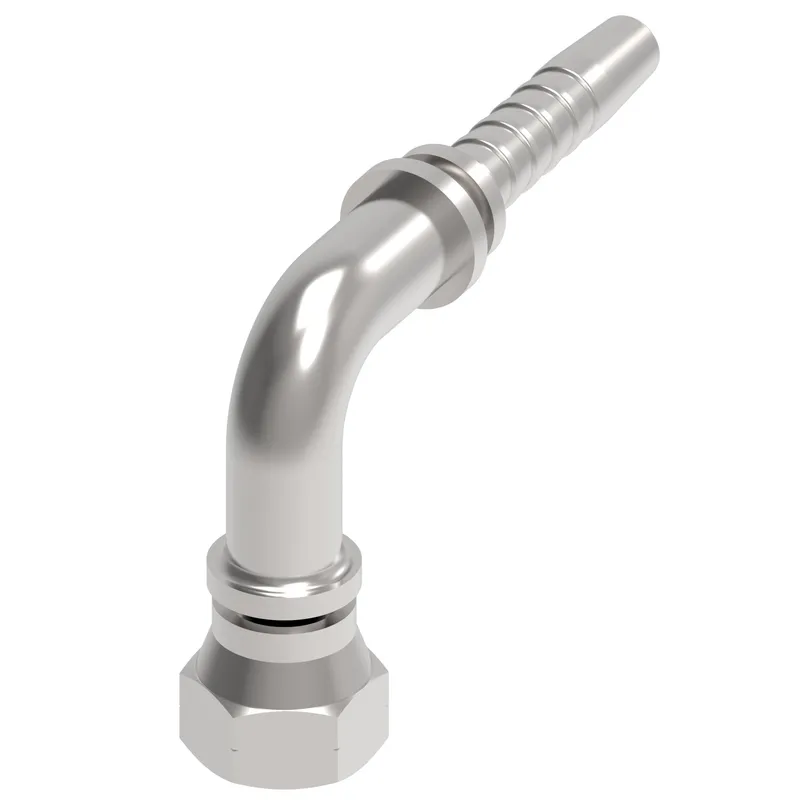

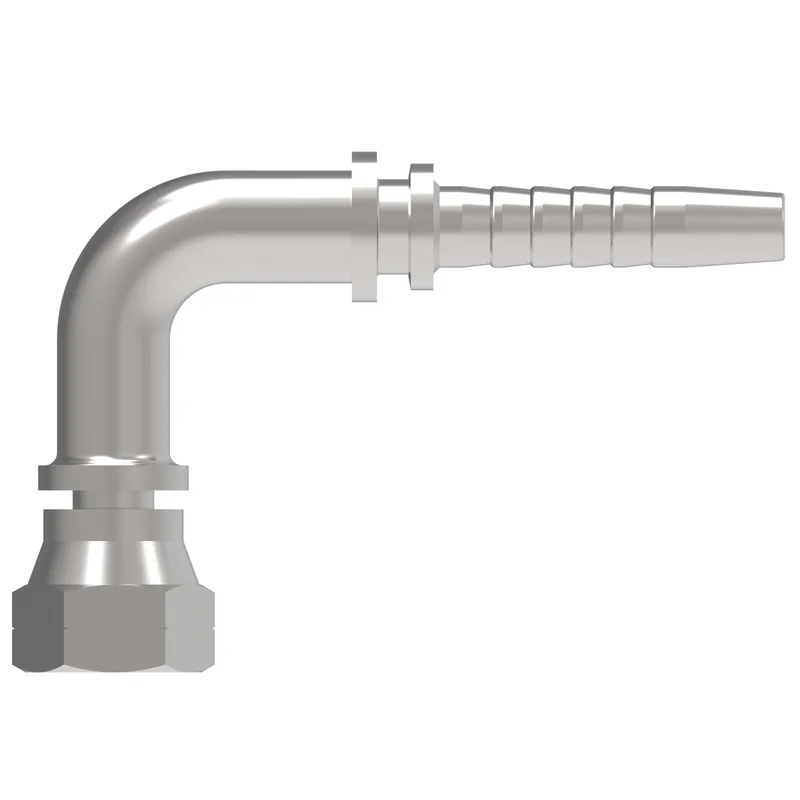

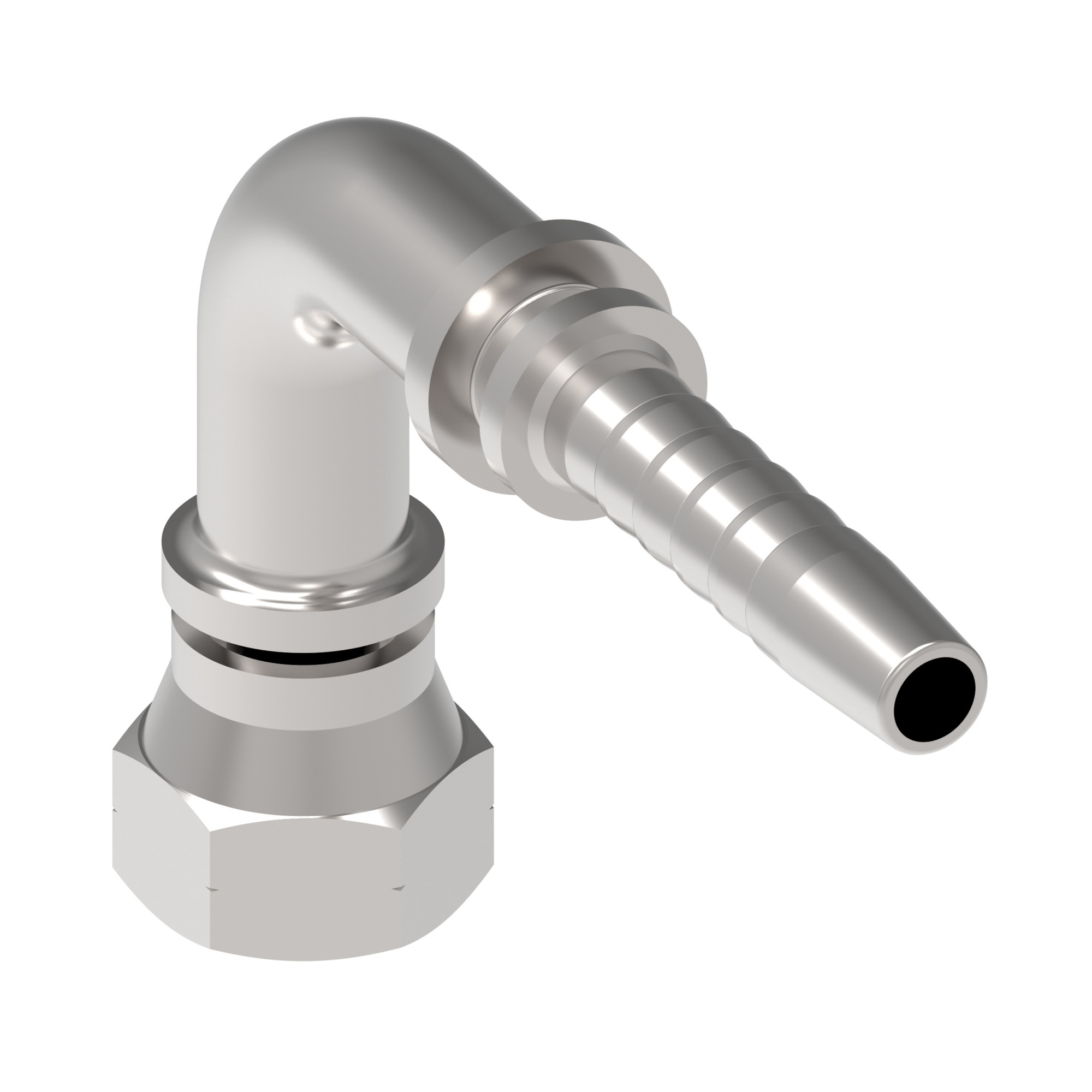

Danfoss 22691-06-08Z

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D

MPN: 22691-06-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691-06-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D, manufacturer part number 22691-06-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.854
A dimension MM	72.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Construction Style	Crimp
Drop dimension IN	1.937
Drop dimension MM	49.20
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.614
Hose cut off factor MM	41.000
Inside diameter IN	0.314
Inside diameter MM	8.000
Product height in	2.560
Product height mm	65.024
Product length in	3.290
Product length mm	83.566
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Proposition 65	Cancer and Reproductive Harm
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
