Danfoss 20591YT-20-06TZ

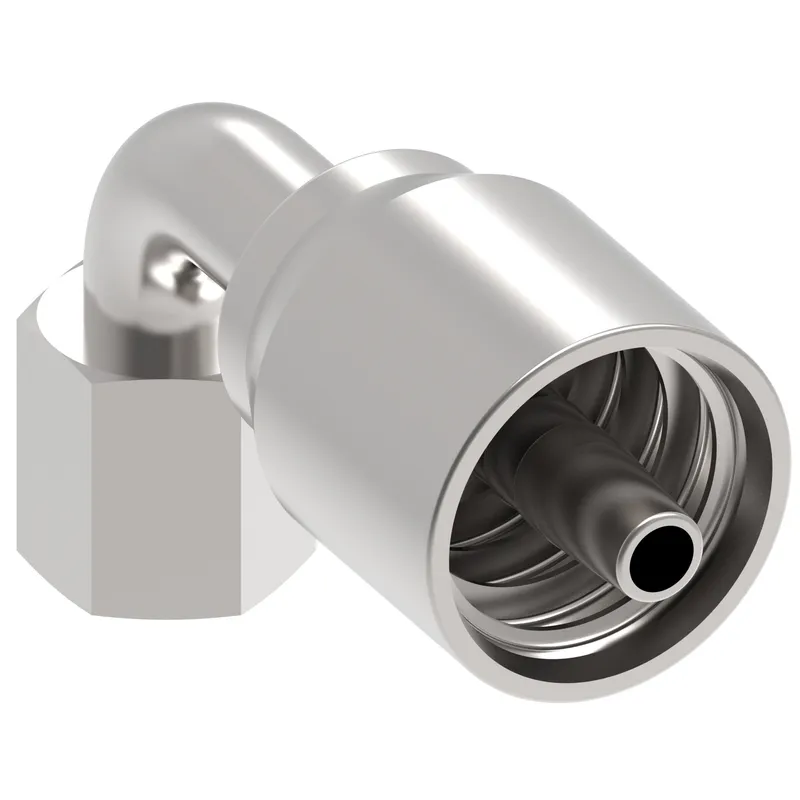

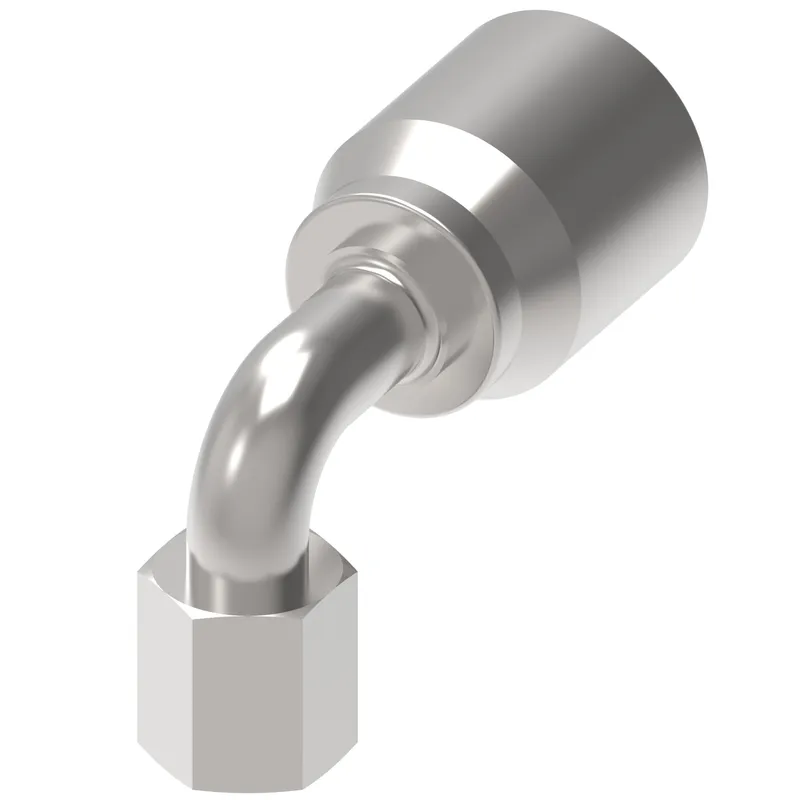

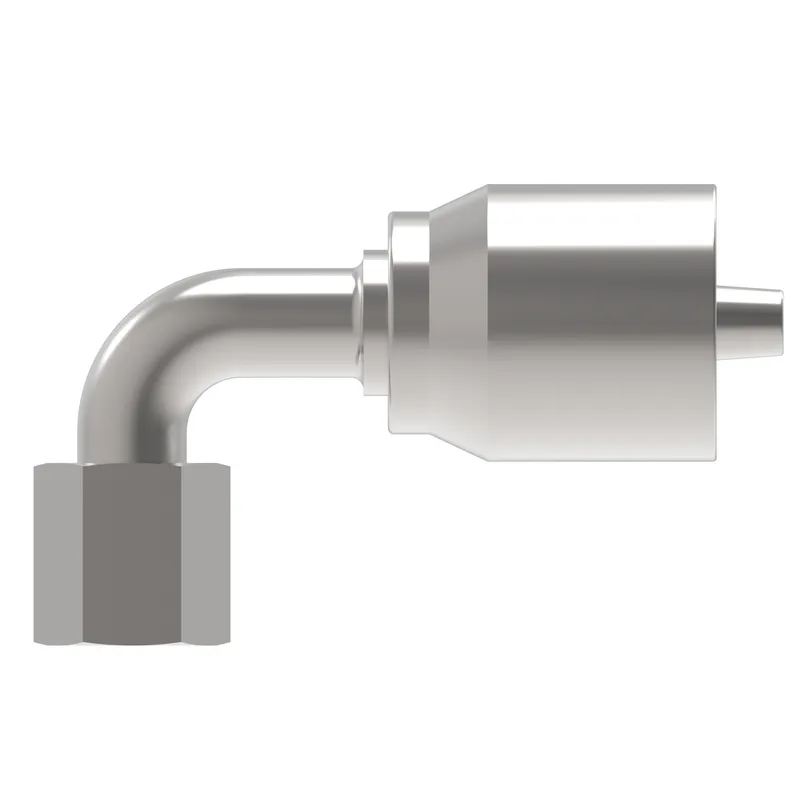

HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,90D

MPN: 20591YT-20-06TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591YT-20-06TZ?

Danfoss HOSE NIPPLE ASSY,1P/06,DKOH-B/20,CS,90D, manufacturer part number 20591YT-20-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.539
A dimension MM	64.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.397
Drop dimension MM	35.50
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.945
Hex size 1 MM	24.003
Hex size 2 IN	0.945
Hex size 2 MM	24.000
Hose cut off factor IN	1.358
Hose cut off factor MM	34.500
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.791
Product height mm	45.491
Product length in	3.012
Product length mm	76.504
Product material	Carbon steel
Product width in	0.945
Product width mm	24.003
Thread sealant	No
Thread size 1	M20x1.5
Tube OD 1 IN	0.472
Tube OD 1 MM	12.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20591YT-20-06TZ: frequently asked questions

When can 20591YT-20-06TZ be shipped?

20591YT-20-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20591YT-20-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20591YT-20-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591YT-20-06TZ, subject to availability and destination.
