Danfoss 20591Y-52-24TZ

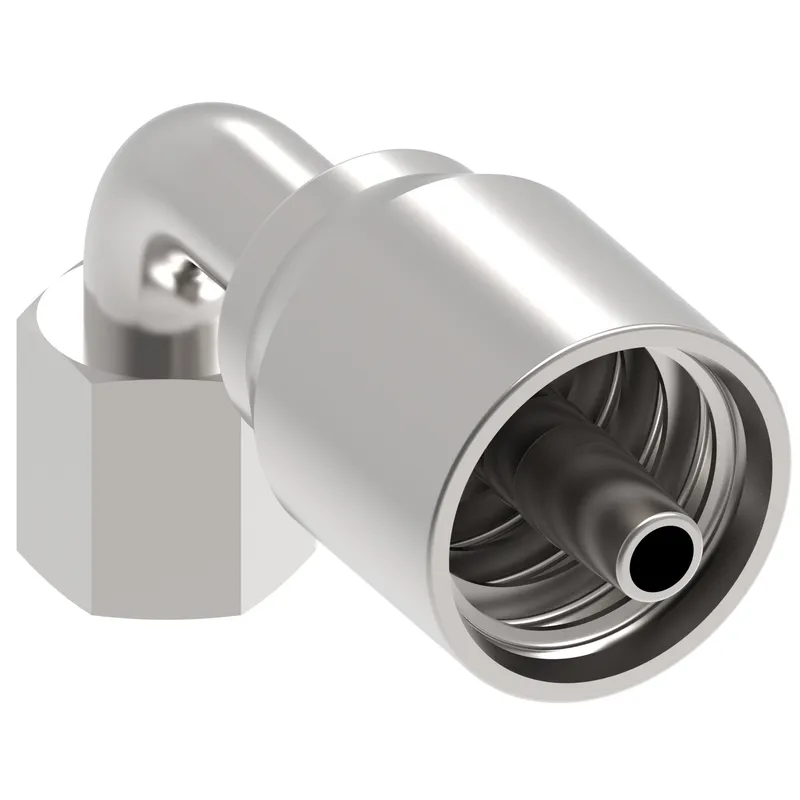

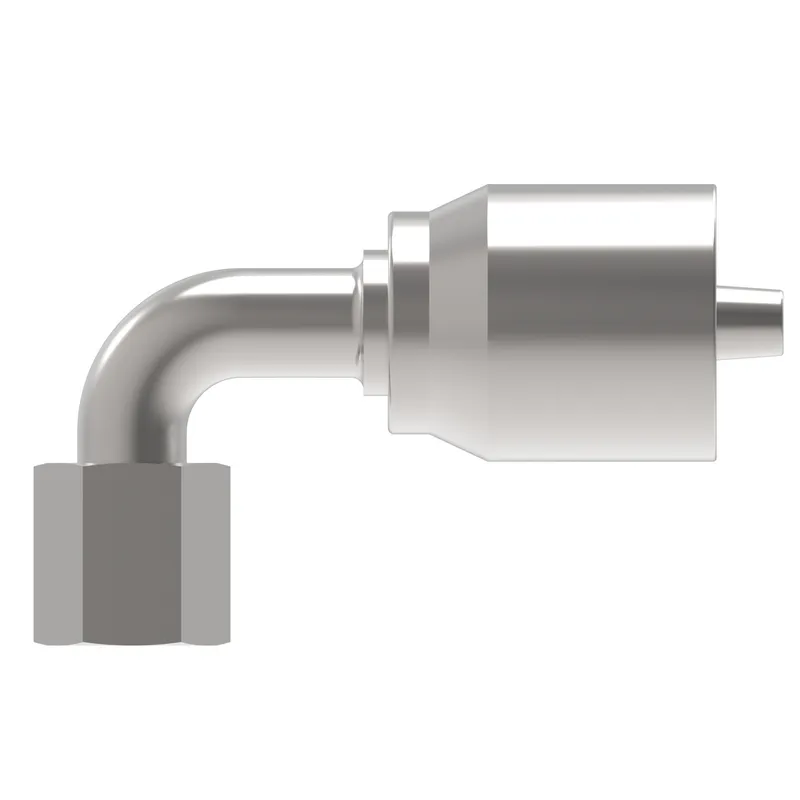

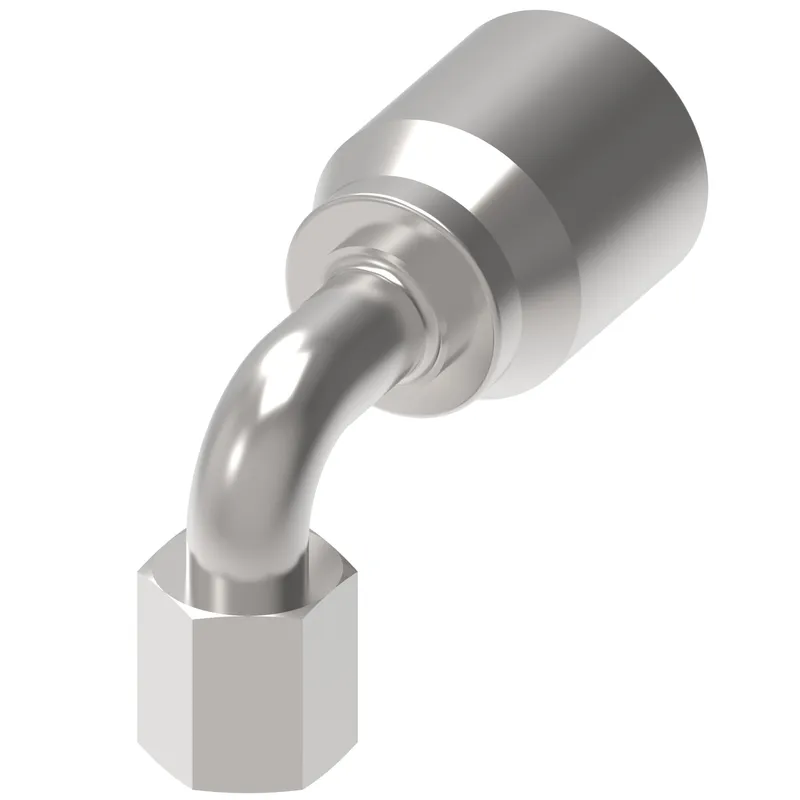

HOSE NIPPLE ASSY,1P/24,DKOH-B/52,CS,90D

MPN: 20591Y-52-24TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591Y-52-24TZ?

Danfoss HOSE NIPPLE ASSY,1P/24,DKOH-B/52,CS,90D, manufacturer part number 20591Y-52-24TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	6.590
A dimension MM	177.400
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	3.937
Drop dimension MM	100.00
End connection torque	210-280 lb-ft(285-380 Nm)
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	2.362
Hex size 1 MM	59.995
Hex size 2 IN	2.362
Hex size 2 MM	60.000
Hose cut off factor IN	4.307
Hose cut off factor MM	109.400
Hose size	-24
Inside diameter IN	1.259
Inside diameter MM	32.000
Product height in	4.990
Product height mm	126.746
Product length in	8.165
Product length mm	207.391
Product material	Carbon steel
Product width in	2.362
Product width mm	59.994
Thread sealant	No
Thread size 1	M52x2
Tube OD 1 IN	1.496
Tube OD 1 MM	38.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
