Danfoss 20591YT-30-12TZ

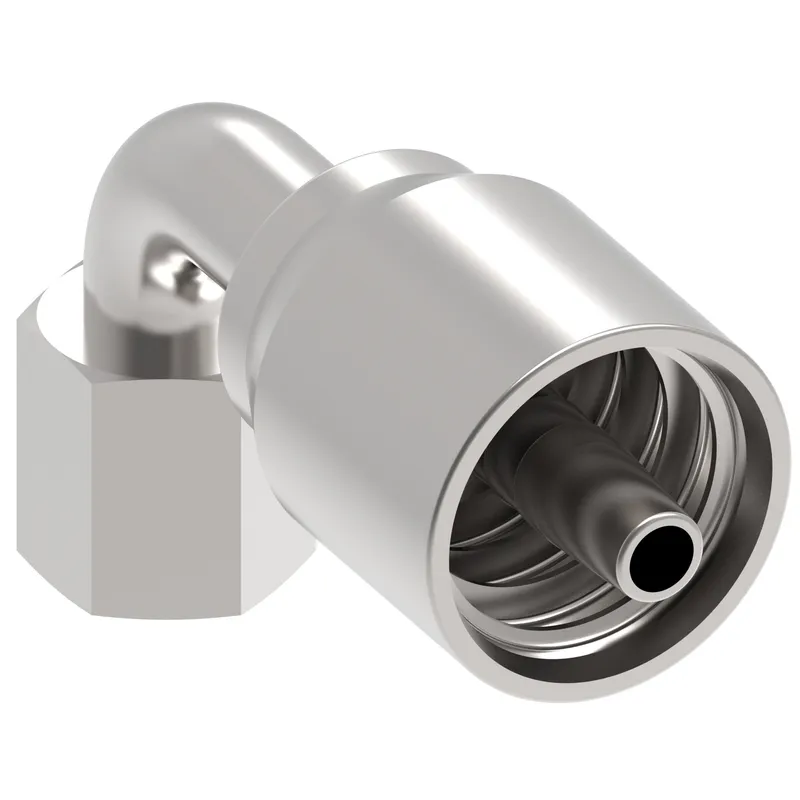

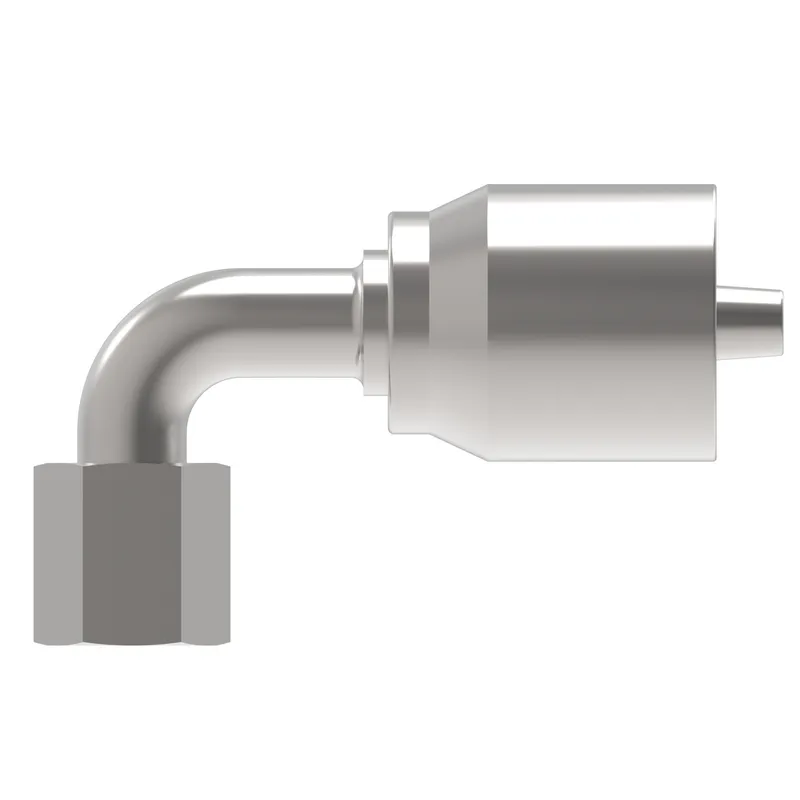

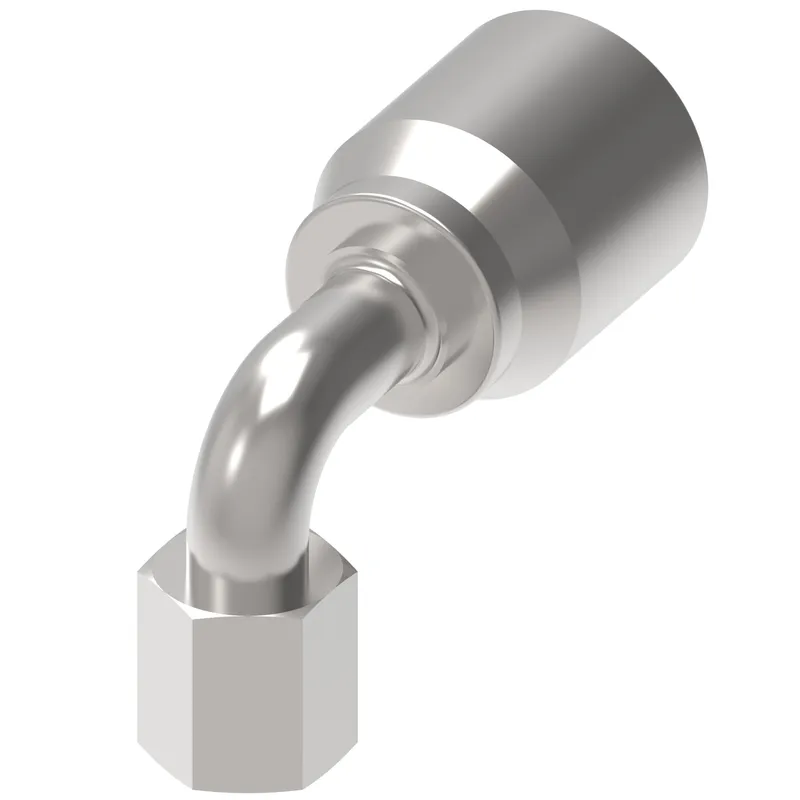

HOSE NIPPLE ASSY,1P/12,DKOH-B/30,CS,90D

MPN: 20591YT-30-12TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591YT-30-12TZ?

Danfoss HOSE NIPPLE ASSY,1P/12,DKOH-B/30,CS,90D, manufacturer part number 20591YT-30-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.712
A dimension MM	94.300
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	2.145
Drop dimension MM	54.50
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hose cut off factor IN	2.196
Hose cut off factor MM	55.800
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	2.870
Product height mm	72.898
Product length in	4.810
Product length mm	122.174
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	0.787
Tube OD 1 MM	20.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
