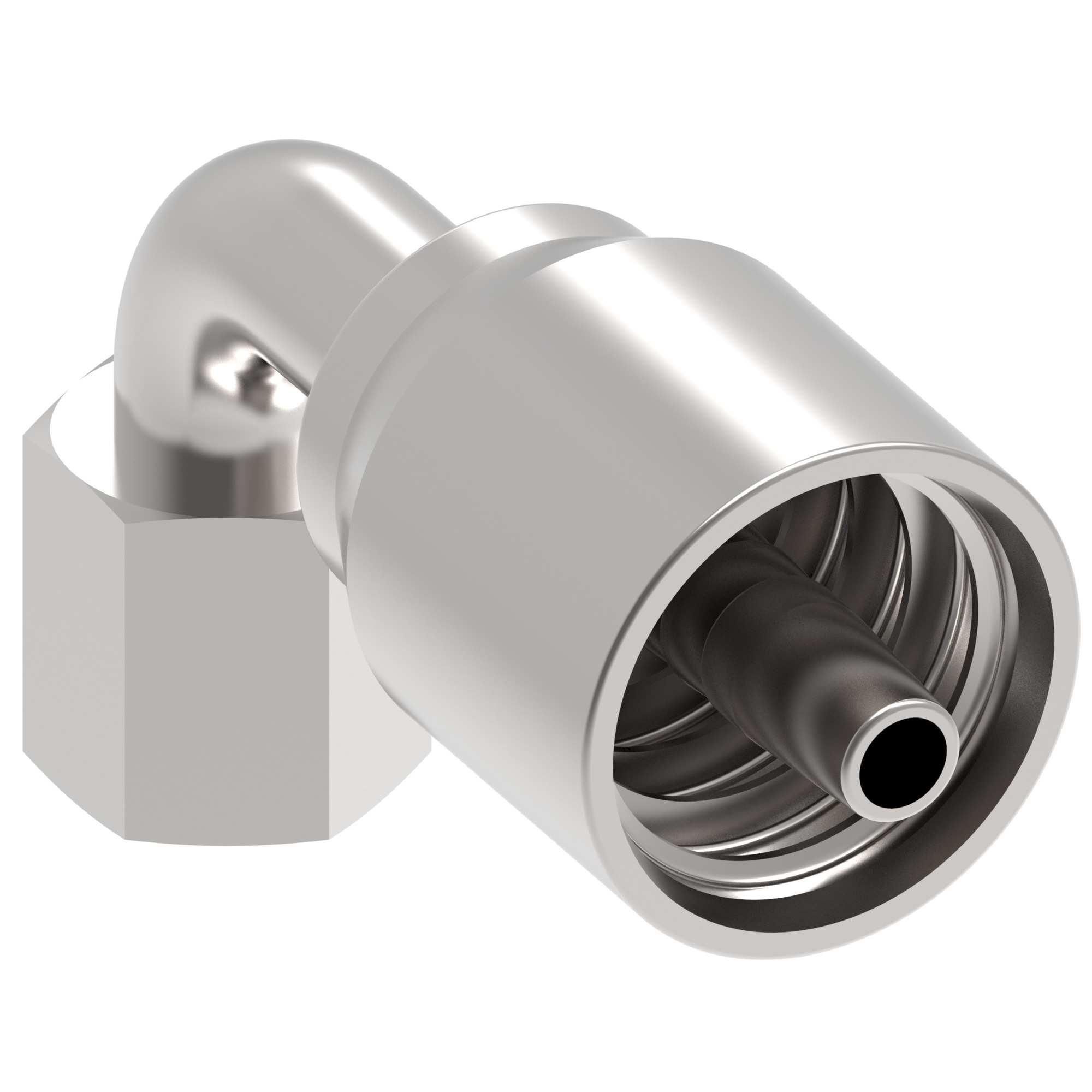

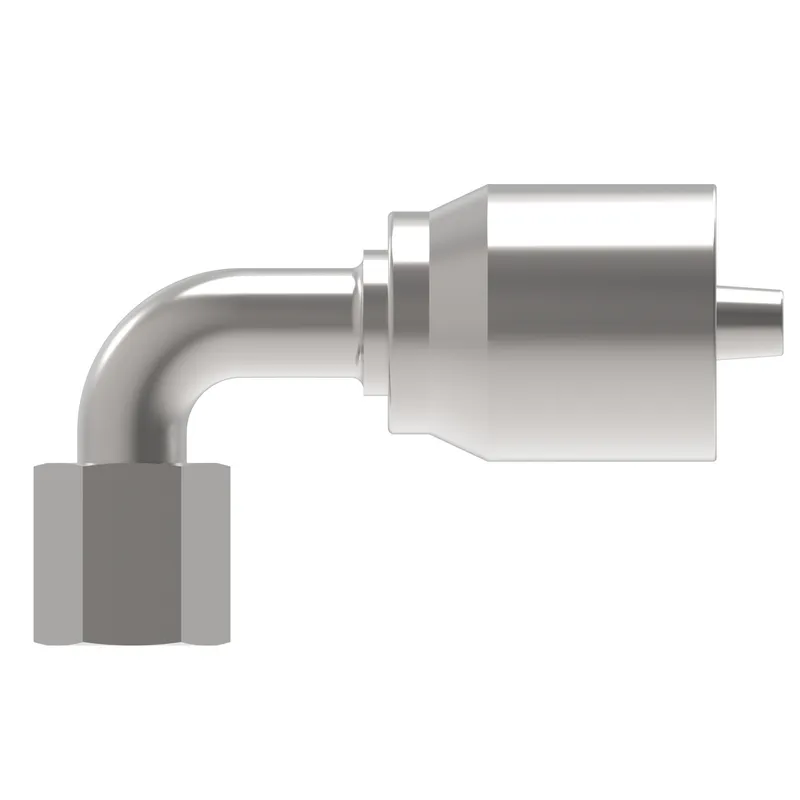

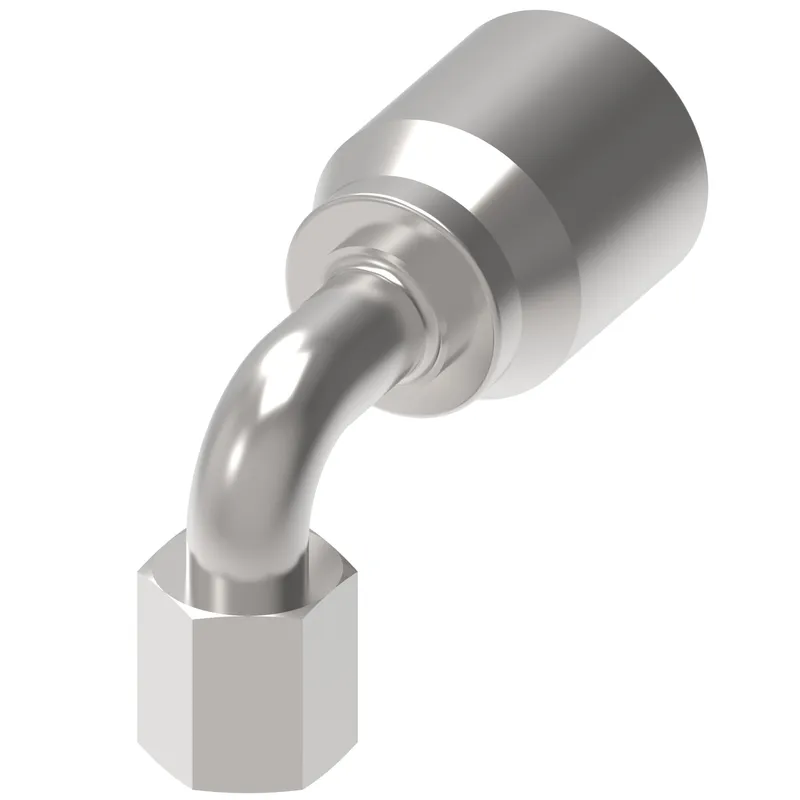

Danfoss 20591YT-36-12TZ

HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,90D

MPN: 20591YT-36-12TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591YT-36-12TZ?

Danfoss HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,90D, manufacturer part number 20591YT-36-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.720
A dimension MM	94.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	2.322
Drop dimension MM	59.00
End connection torque	125-140 lb-ft(170-190 Nm)
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.811
Hex size 1 MM	45.999
Hex size 2 IN	1.811
Hex size 2 MM	46.000
Hose cut off factor IN	2.204
Hose cut off factor MM	56.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	2.953
Product height mm	75.006
Product length in	4.626
Product length mm	117.500
Product material	Carbon steel
Product width in	1.811
Product width mm	45.999
Thread sealant	No
Thread size 1	M36x2
Tube OD 1 IN	0.984
Tube OD 1 MM	25.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40
