Danfoss 20591Y-24-08TZ

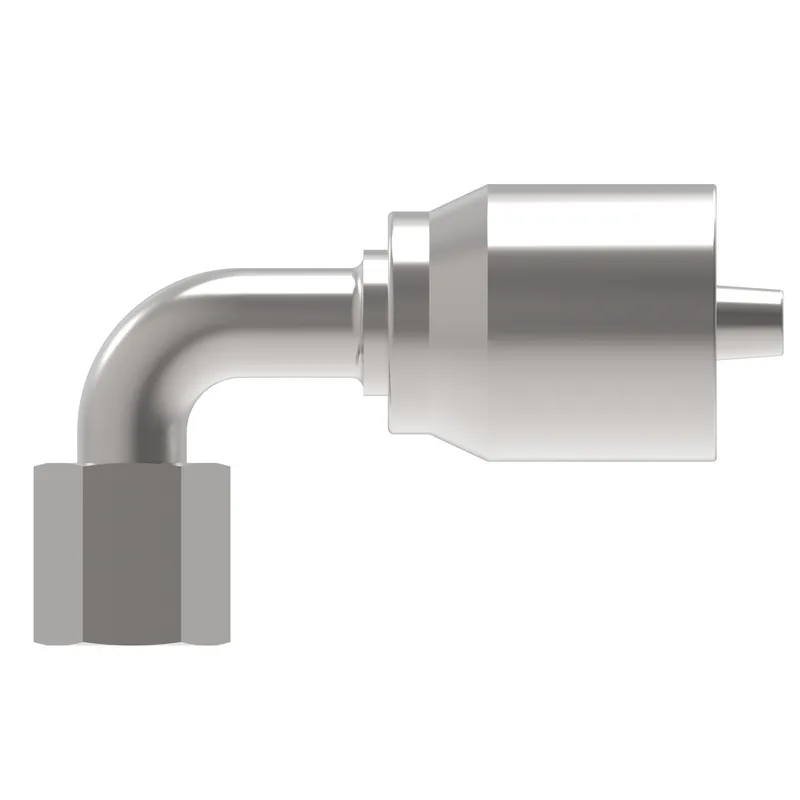

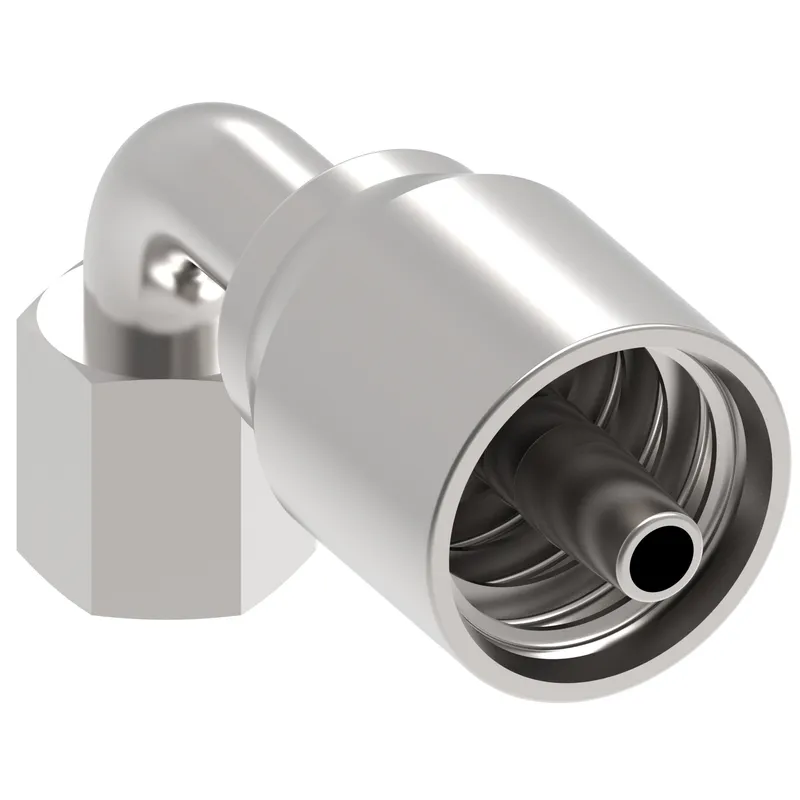

HOSE NIPPLE ASSY,1P/08,DKOH-B/24,CS,90D

MPN: 20591Y-24-08TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591Y-24-08TZ?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOH-B/24,CS,90D, manufacturer part number 20591Y-24-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.795
A dimension MM	71.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.692
Drop dimension MM	43.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.181
Hex size 1 MM	30.000
Hex size 2 IN	1.181
Hex size 2 MM	30.000
Hose cut off factor IN	1.555
Hose cut off factor MM	39.500
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.185
Product height mm	55.499
Product length in	3.386
Product length mm	86.004
Product material	Carbon steel
Product width in	1.181
Product width mm	29.997
Thread sealant	No
Thread size 1	M24x1.5
Tube OD 1 IN	0.629
Tube OD 1 MM	16.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
