Danfoss 20591Y-18-04SRT

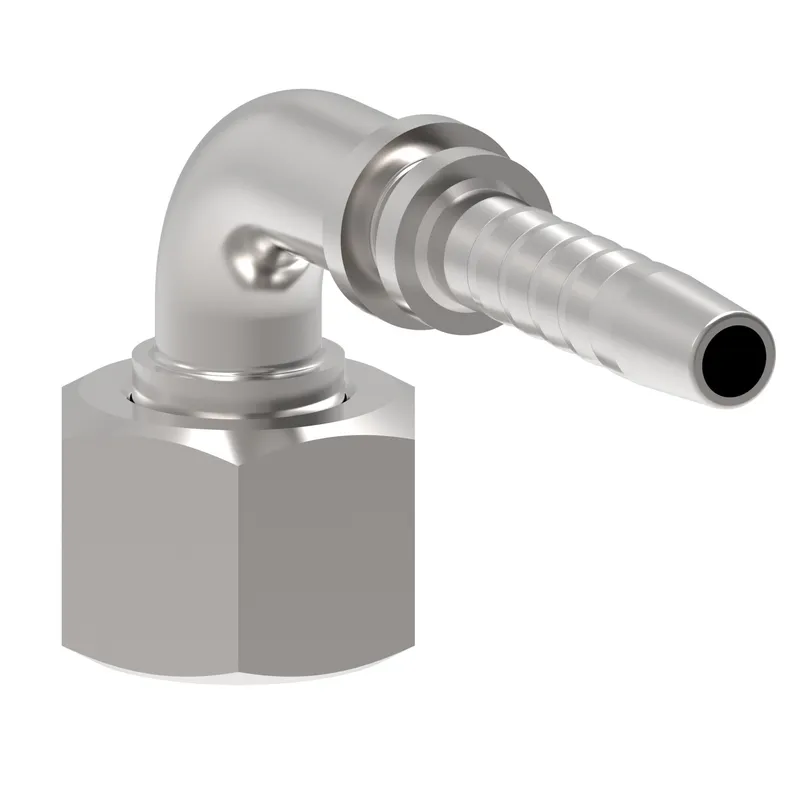

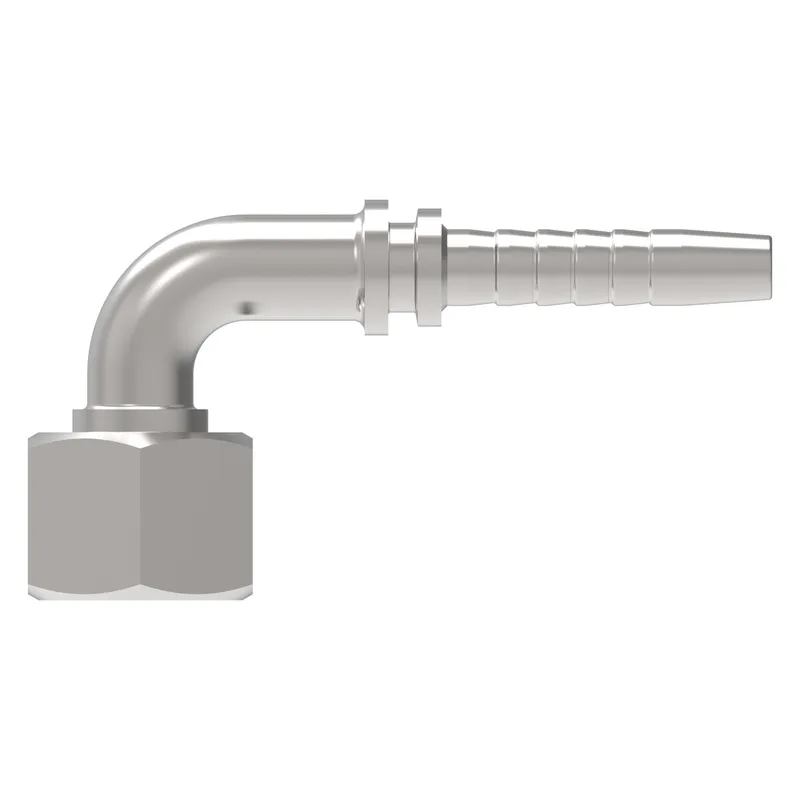

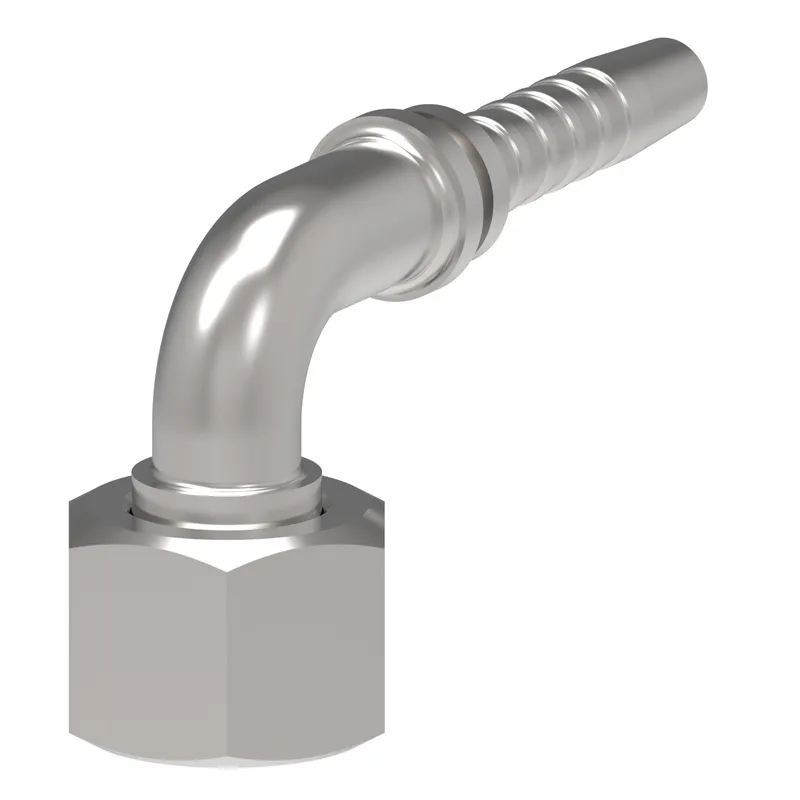

HOSE NIPPLE ASSY,1P/04,DKOH-B/18,AN,90D

MPN: 20591Y-18-04SRT
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591Y-18-04SRT?

Danfoss HOSE NIPPLE ASSY,1P/04,DKOH-B/18,AN,90D, manufacturer part number 20591Y-18-04SRT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.283
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	1.259
Drop dimension MM	32.00
End connection torque	37-44 lb-ft(50-60 Nm)
End Type 1	24 deg. DKO swivel heavy duty
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.179
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	1.767
Product height mm	44.900
Product length in	2.716
Product length mm	69.000
Product material	304 Stainless steel
Product width in	0.897
Product width mm	22.8
Thread sealant	No
Thread size 1	M18x1.5
Tube OD 1 IN	0.393
Tube OD 1 MM	10.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
