Danfoss 20591Y-16-06WZ

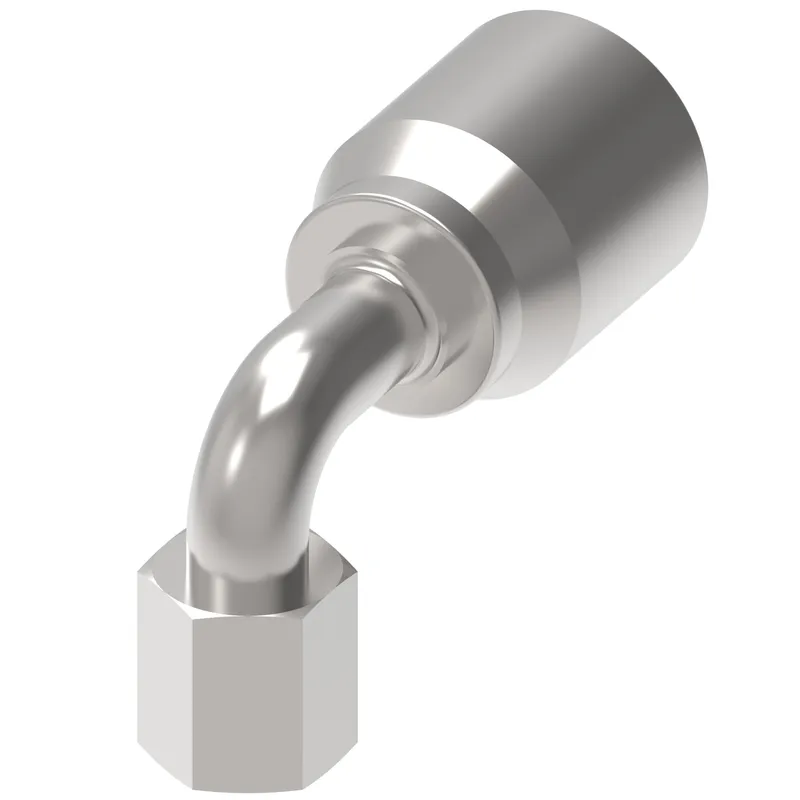

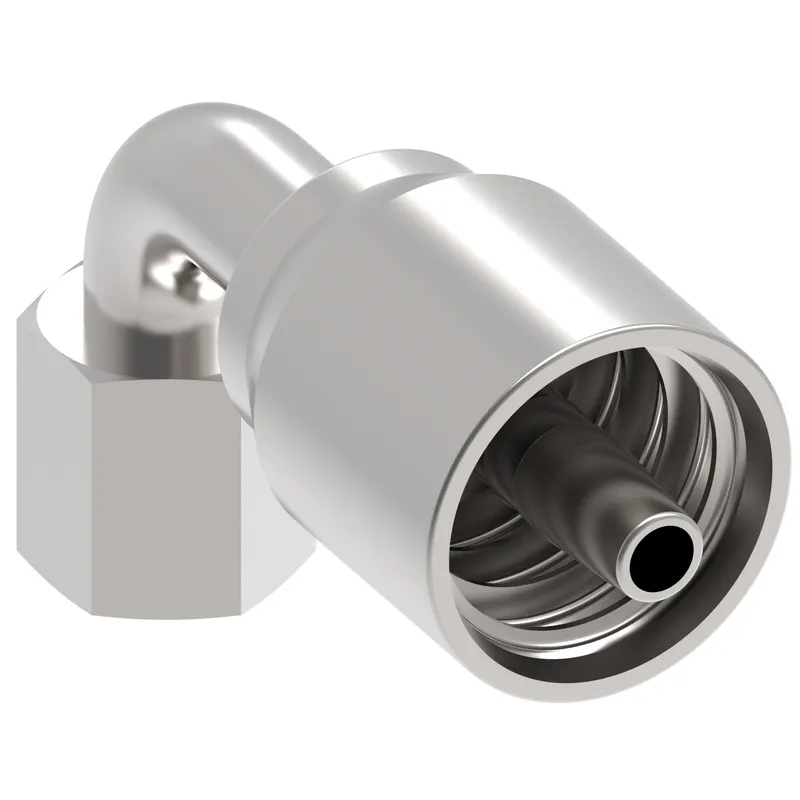

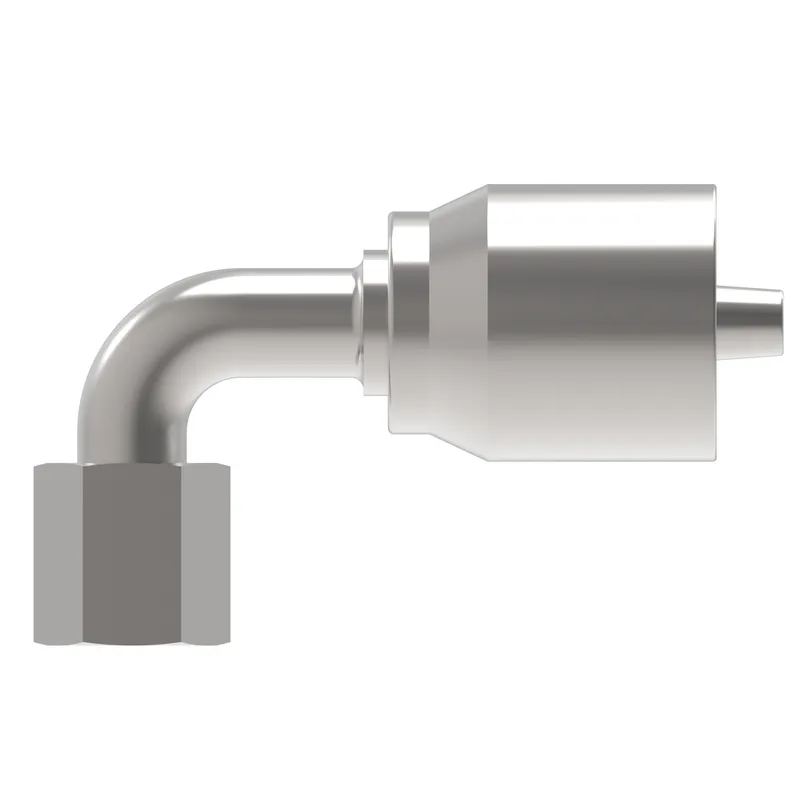

HOSE NIPPLE ASSY,1P/06,DKOH-B/16,CS,90D

MPN: 20591Y-16-06WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591Y-16-06WZ?

Danfoss HOSE NIPPLE ASSY,1P/06,DKOH-B/16,CS,90D, manufacturer part number 20591Y-16-06WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.362
A dimension MM	60.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.218
Drop dimension MM	31.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 2 IN	0.748
Hex size 2 MM	18.999
Hose cut off factor IN	1.179
Hose cut off factor MM	30.000
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.830
Product height mm	46.482
Product length in	2.790
Product length mm	70.866
Product material	Carbon steel
Product width in	1.075
Product width mm	27.305
Thread sealant	No
Thread size 1	M16x1.5
Tube OD 1 IN	0.314
Tube OD 1 MM	8.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40
