Danfoss 20591Y-30-08EQSVT

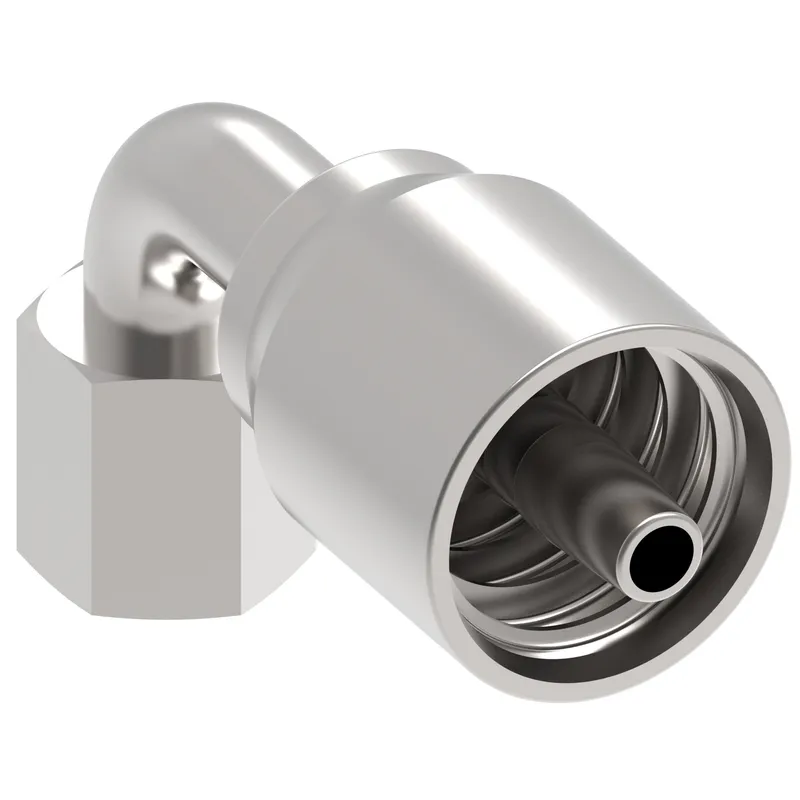

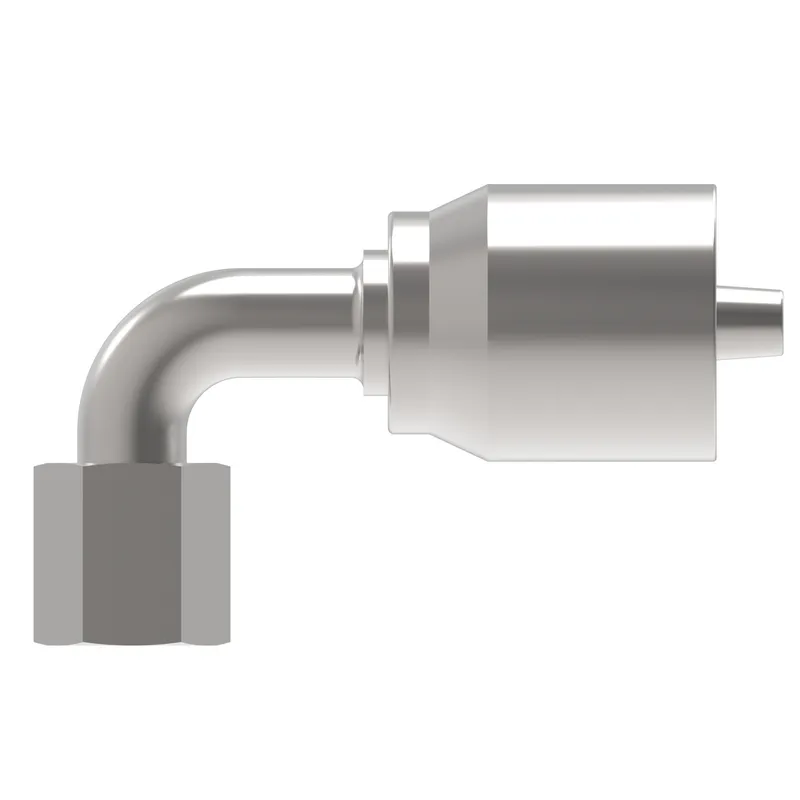

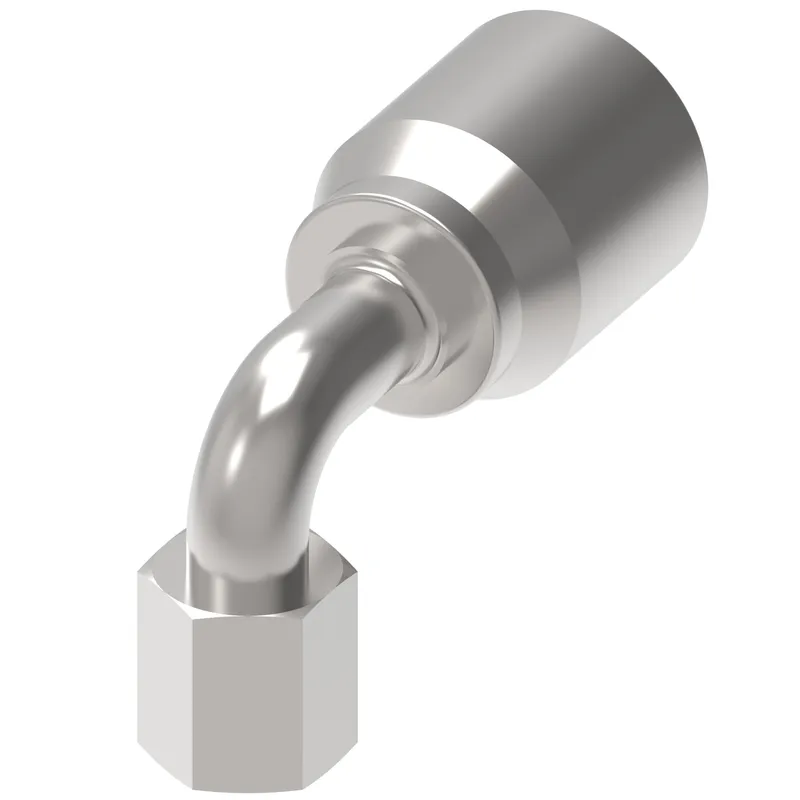

HOSE NIPPLE ASSY,1P/08,DKOH-B/30,AP,90D

MPN: 20591Y-30-08EQSVT
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591Y-30-08EQSVT?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOH-B/30,AP,90D, manufacturer part number 20591Y-30-08EQSVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.992
A dimension MM	76.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.811
Drop dimension MM	46.00
End Type 1	24 deg. DKO swivel heavy duty
Hex size 2 IN	1.060
Hex size 2 MM	26.924
Hose cut off factor IN	1.751
Hose cut off factor MM	44.500
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.515
Product height mm	63.881
Product length in	3.622
Product length mm	91.998
Product material	316L Stainless steel
Product width in	1.212
Product width mm	30.784
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	0.787
Tube OD 1 MM	20.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40

20591Y-30-08EQSVT: frequently asked questions

When can 20591Y-30-08EQSVT be shipped?

20591Y-30-08EQSVT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20591Y-30-08EQSVT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20591Y-30-08EQSVT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591Y-30-08EQSVT, subject to availability and destination.
