Danfoss 20491-45-20TZN

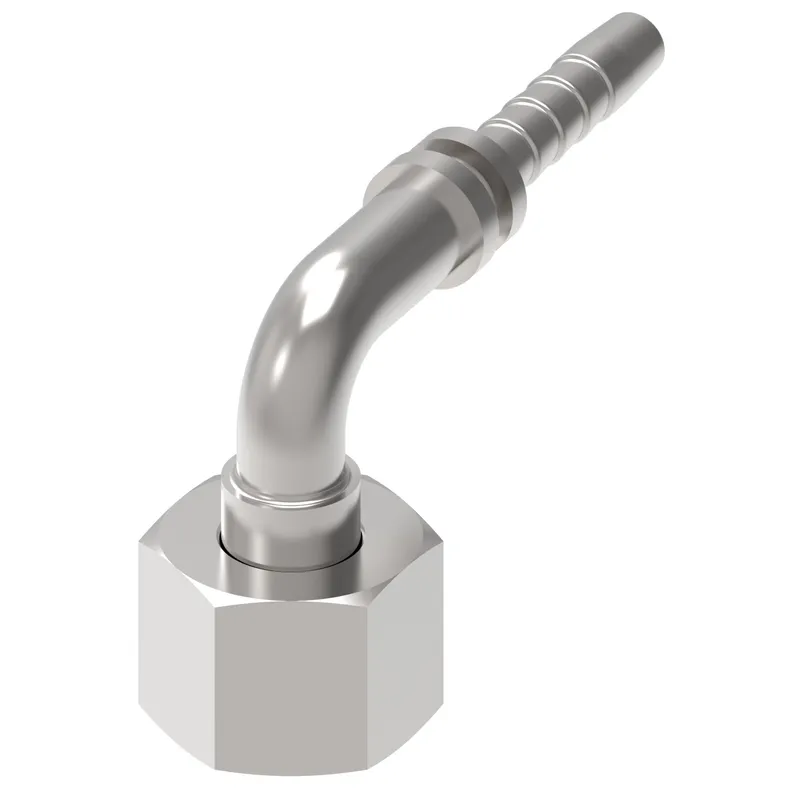

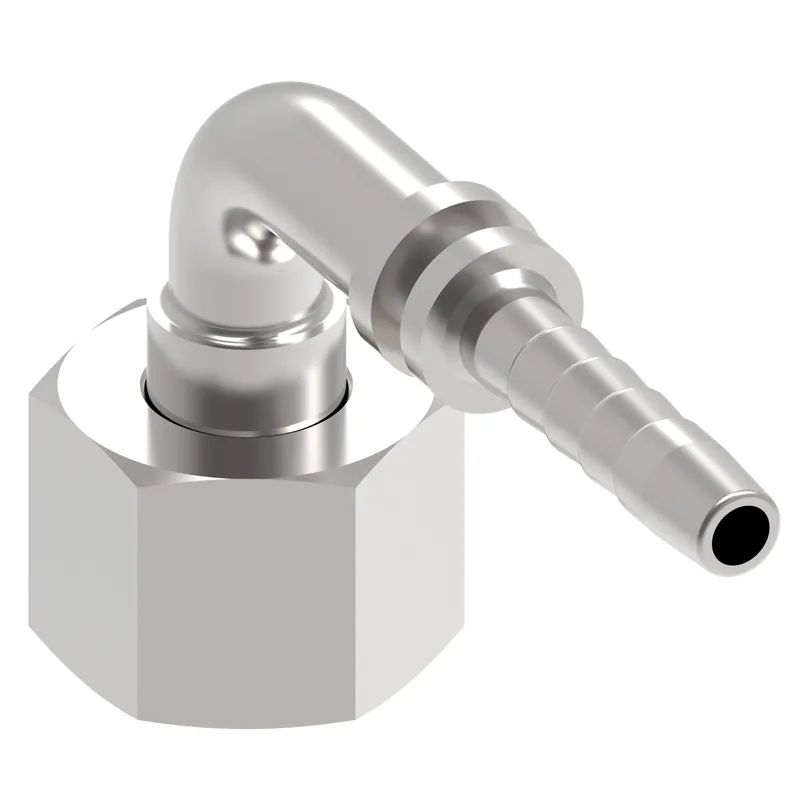

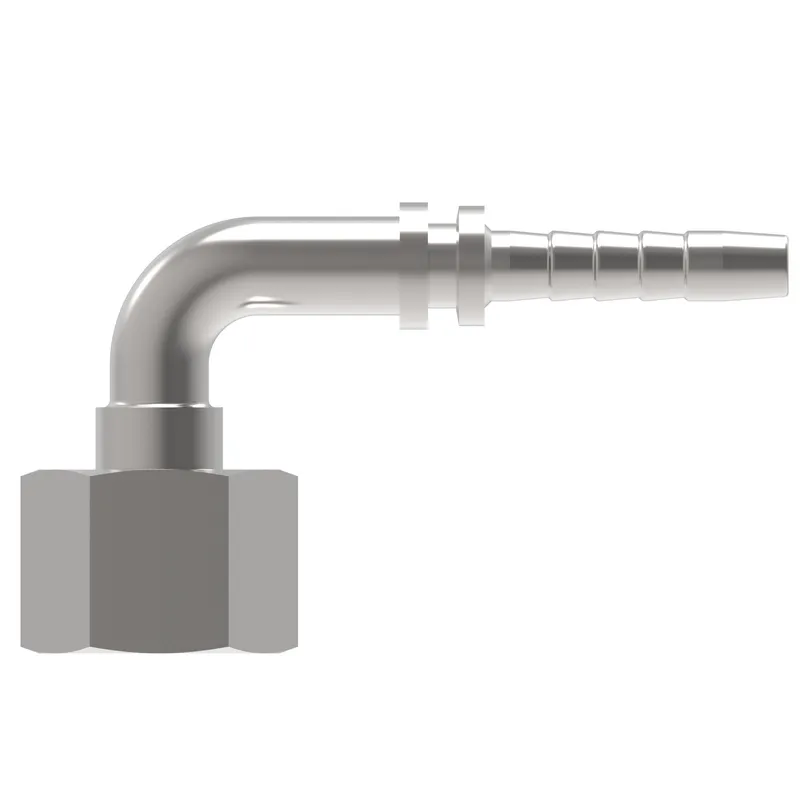

HOSE NIPPLE ASSY,2P/20,DKOL/45,CS,90D

MPN: 20491-45-20TZN
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-45-20TZN?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOL/45,CS,90D, manufacturer part number 20491-45-20TZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.730
A dimension MM	145.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	3.390
Drop dimension MM	86.00
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.968
Hex size 1 MM	49.987
Hex size 2 IN	1.970
Hex size 2 MM	50.038
Hose cut off factor IN	3.600
Hose cut off factor MM	91.500
Hose size	-20
Inside diameter IN	1.060
Inside diameter MM	27.000
Product height in	5.275
Product height mm	133.985
Product length in	6.712
Product length mm	170.485
Product material	Carbon steel
Product width in	1.970
Product width mm	50.038
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M45x2
Tube OD 1 IN	1.377
Tube OD 1 MM	35.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
