Danfoss 20491-36-20WZ

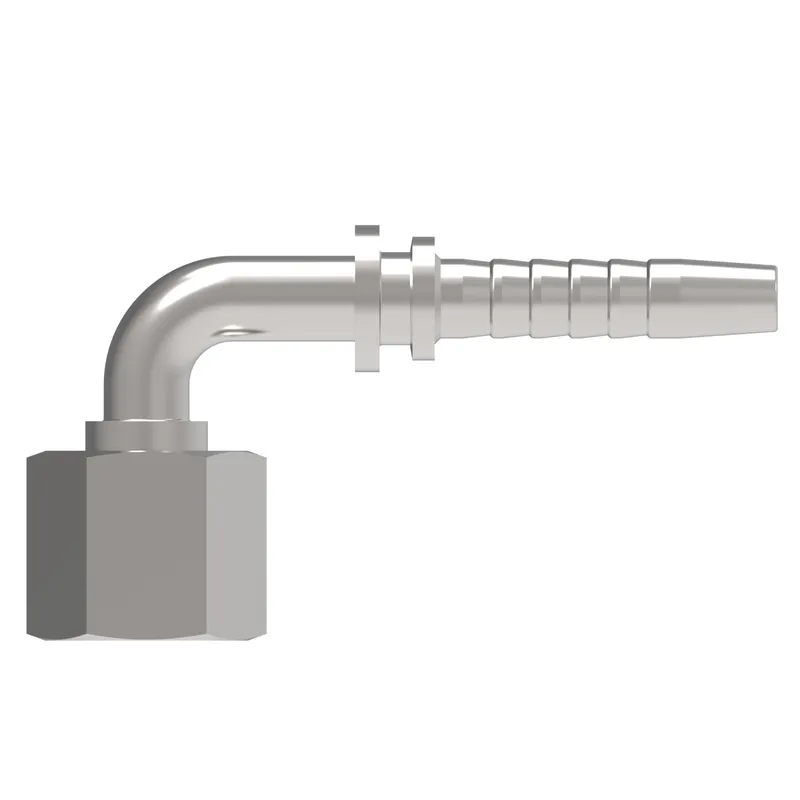

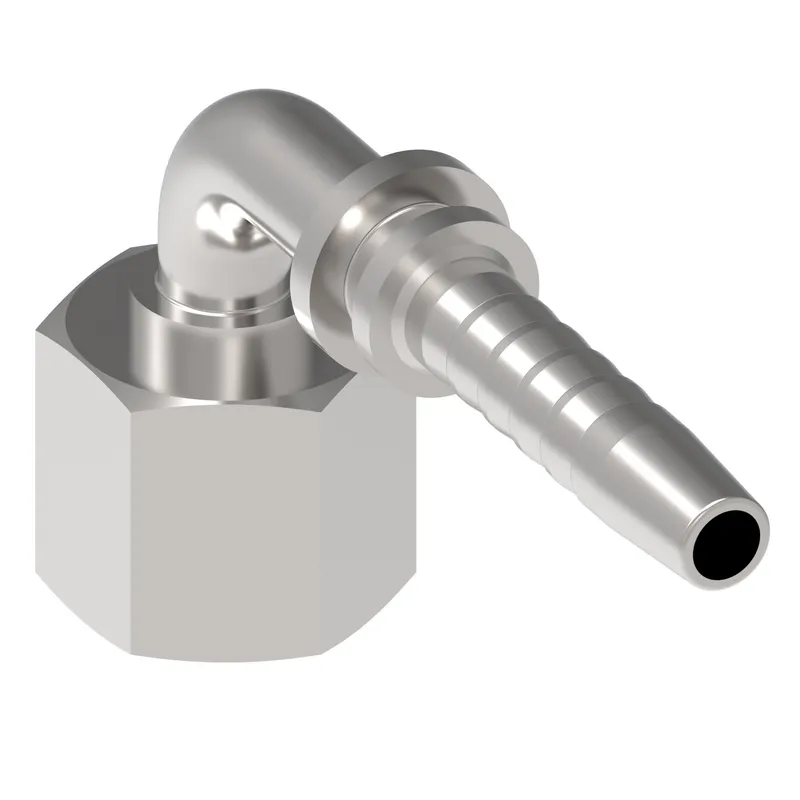

HOSE NIPPLE ASSY,2P/20,DKOL/36,CS,90D

MPN: 20491-36-20WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-36-20WZ?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOL/36,CS,90D, manufacturer part number 20491-36-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.295
A dimension MM	134.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	2.700
Drop dimension MM	68.50
End size 1	-25
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.614
Hex size 1 MM	40.996
Hex size 2 IN	1.600
Hex size 2 MM	40.640
Hose cut off factor IN	3.169
Hose cut off factor MM	80.500
Hose size	-20
Inside diameter IN	0.830
Inside diameter MM	21.000
Product height in	4.880
Product height mm	123.952
Product length in	6.102
Product length mm	154.991
Product material	Carbon steel
Product width in	1.600
Product width mm	40.64
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M36x2
Tube OD 1 IN	1.102
Tube OD 1 MM	28.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
