Danfoss 20491-45-24WZ

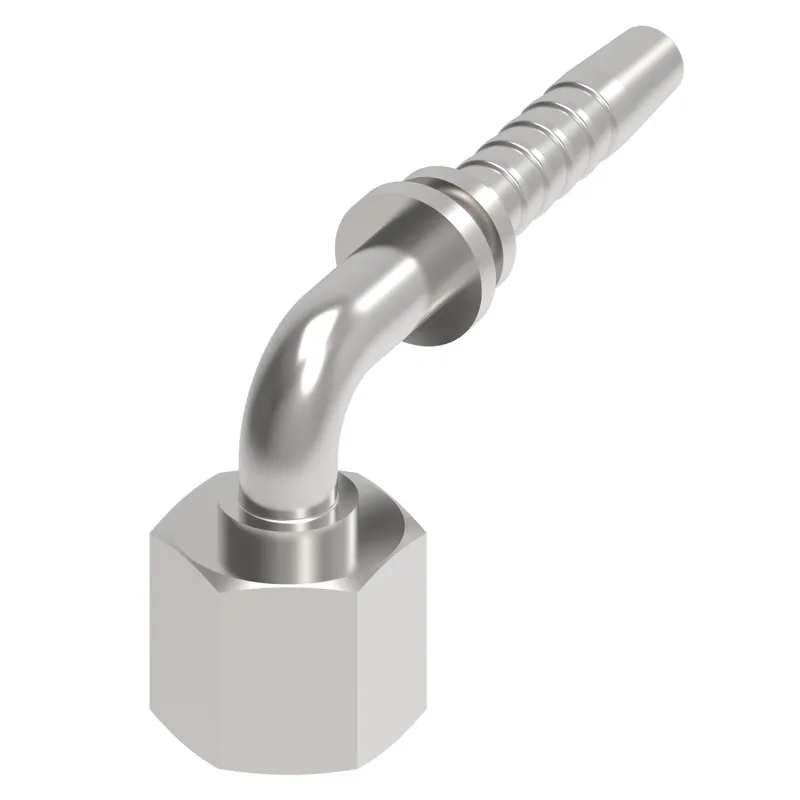

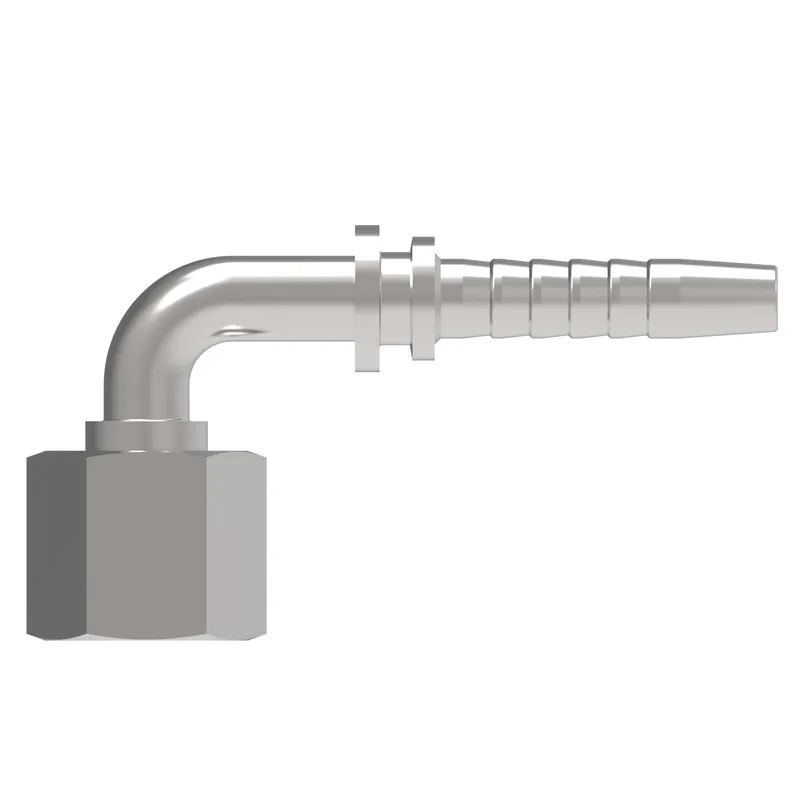

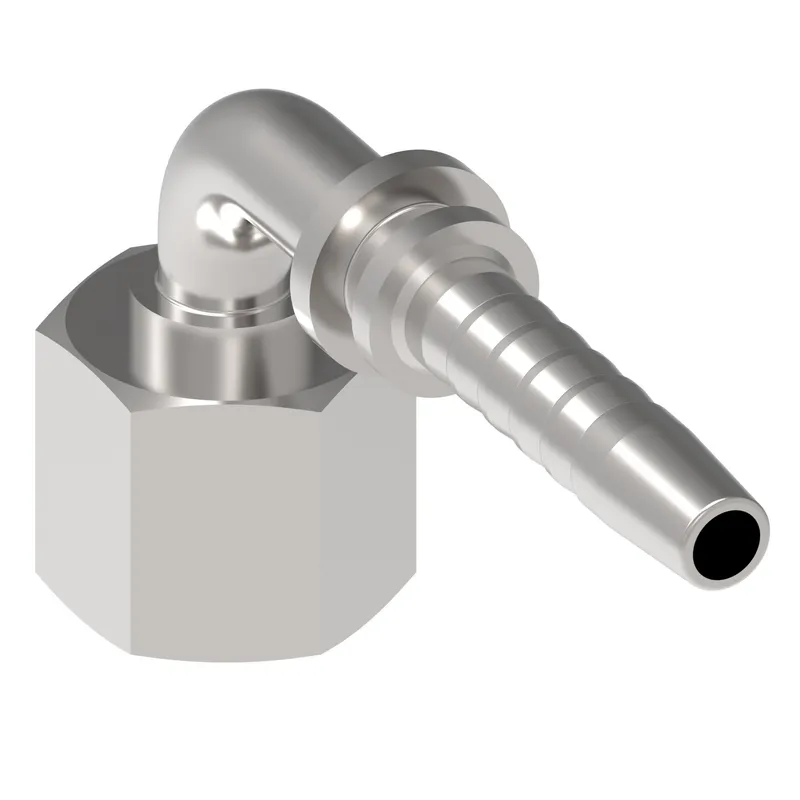

HOSE NIPPLE ASSY,2P/24,DKOL/45,CS,90D

MPN: 20491-45-24WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-45-24WZ?

Danfoss HOSE NIPPLE ASSY,2P/24,DKOL/45,CS,90D, manufacturer part number 20491-45-24WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	6.673
A dimension MM	169.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	3.602
Drop dimension MM	91.50
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	3.996
Hose cut off factor MM	101.500
Hose size	-24
Inside diameter IN	1.259
Inside diameter MM	32.000
Product height in	5.629
Product height mm	142.977
Product length in	7.657
Product length mm	194.488
Product material	Carbon steel
Product width in	1.970
Product width mm	50.038
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread size 1	M45x2
Tube OD 1 IN	1.377
Tube OD 1 MM	35.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20491-45-24WZ: frequently asked questions

When can 20491-45-24WZ be shipped?

20491-45-24WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20491-45-24WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20491-45-24WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20491-45-24WZ, subject to availability and destination.
