Danfoss 20491-52-20TZ

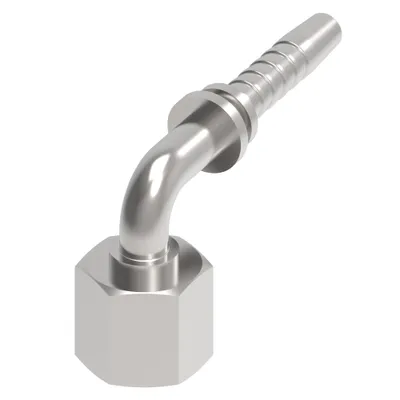

HOSE NIPPLE ASSY,2P/20,DKOL/52,CS,90D

MPN: 20491-52-20TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-52-20TZ?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOL/52,CS,90D, manufacturer part number 20491-52-20TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.787
A dimension MM	147.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	3.425
Drop dimension MM	87.00
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	3.661
Hose cut off factor MM	93.000
Hose size	-20
Inside diameter IN	1.060
Inside diameter MM	27.000
Product height in	5.531
Product height mm	140.487
Product length in	6.968
Product length mm	176.987
Product material	Carbon steel
Product width in	2.360
Product width mm	59.944
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread size 1	M52x2
Tube OD 1 IN	1.653
Tube OD 1 MM	42.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
