Danfoss 1G5DL4

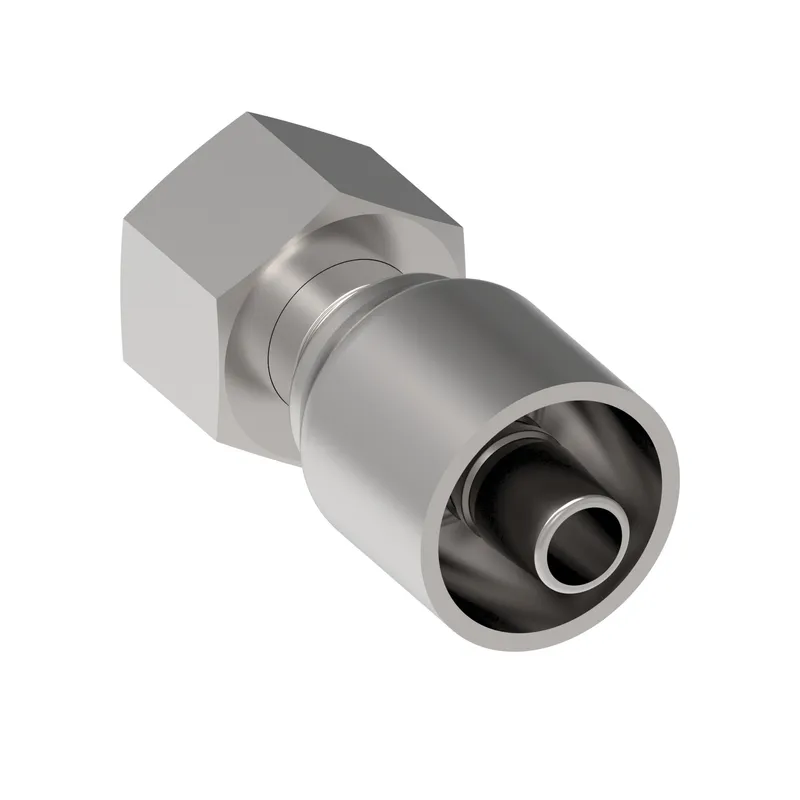

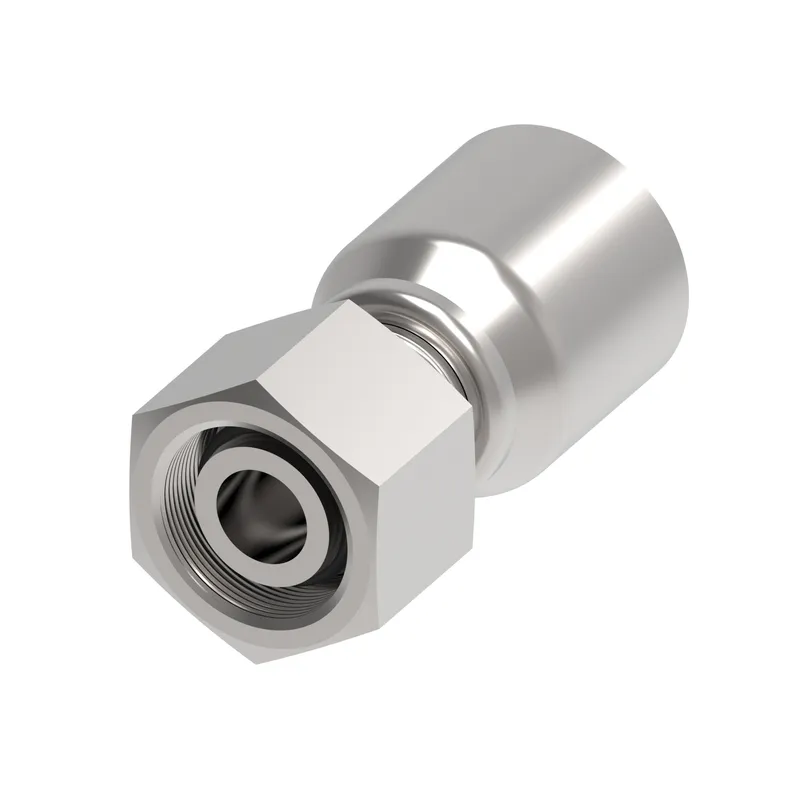

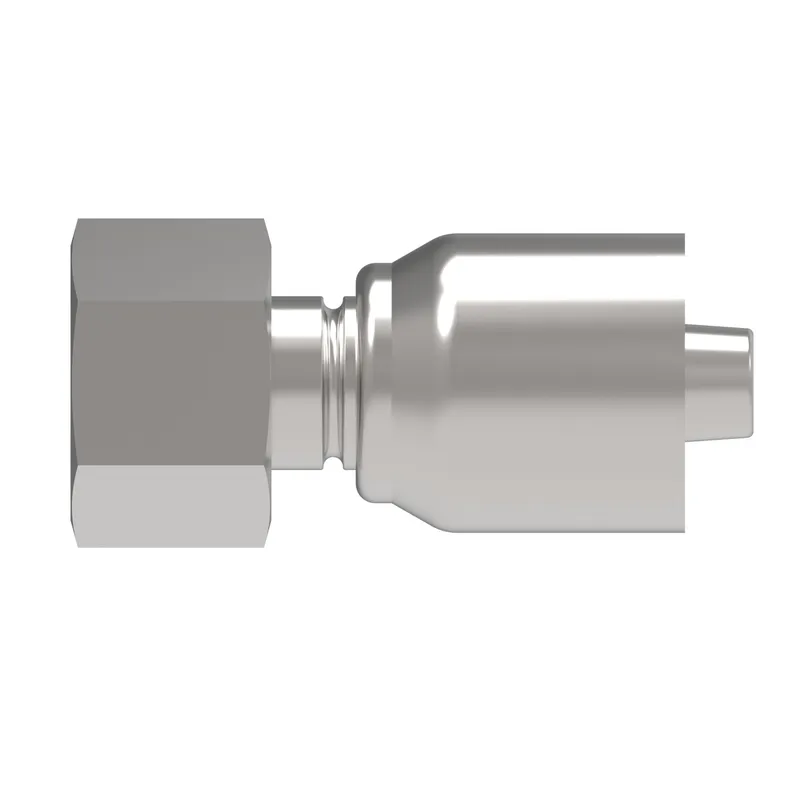

HOSE FTG, 1G/04, DKOL/05, CS, STR

MPN: 1G5DL4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G5DL4?

Danfoss HOSE FTG, 1G/04, DKOL/05, CS, STR, manufacturer part number 1G5DL4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.780
A dimension MM	45.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	15.494
Hose cut off factor IN	0.860
Hose cut off factor MM	21.900
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.200
Product height in	0.680
Product height mm	17.272
Product length in	1.780
Product length mm	45.212
Product material	Carbon steel
Product width in	0.680
Product width mm	17.272
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M12x1.5
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
