Danfoss 1G4FJ4

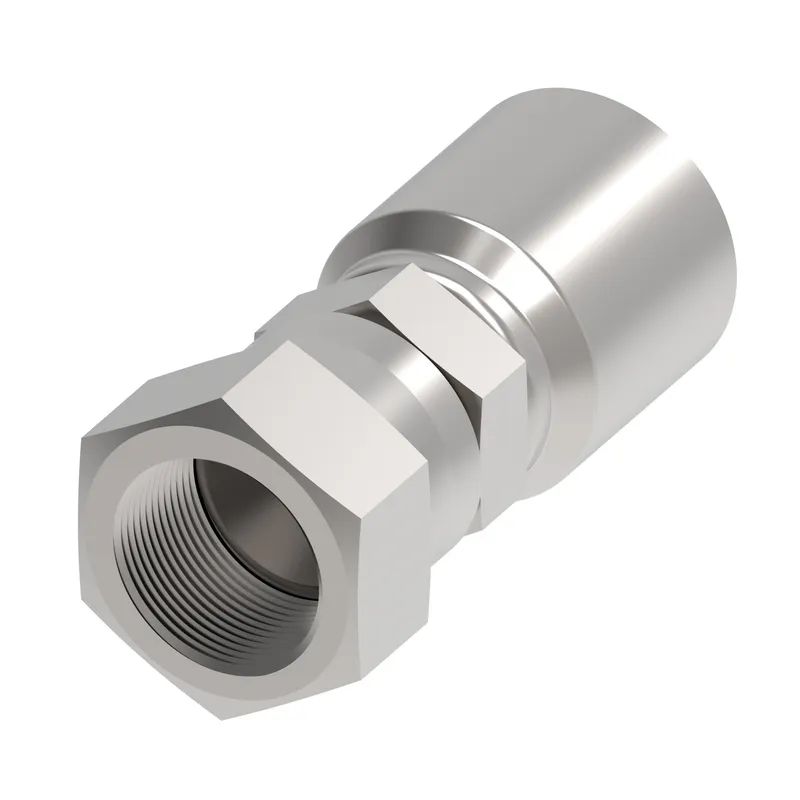

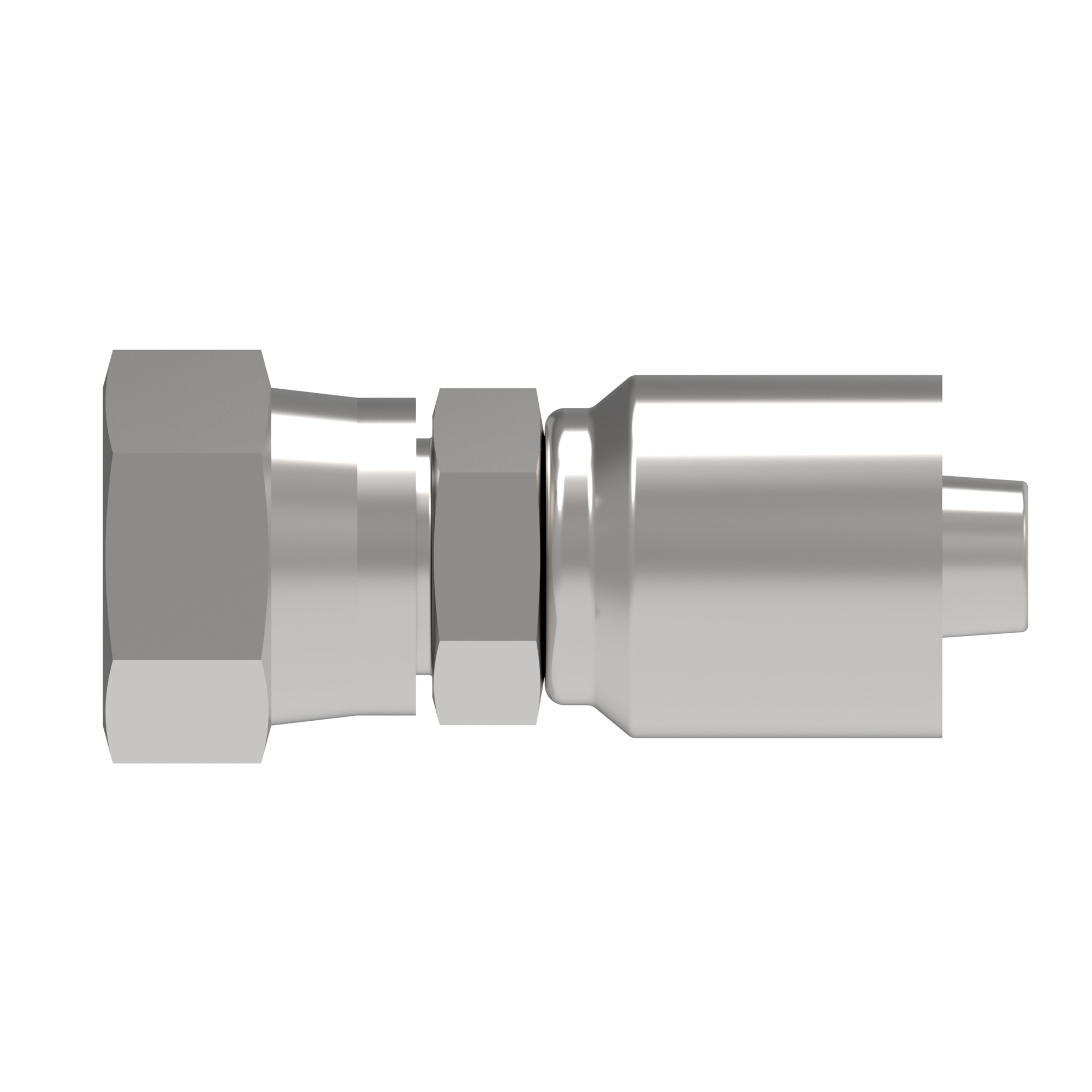

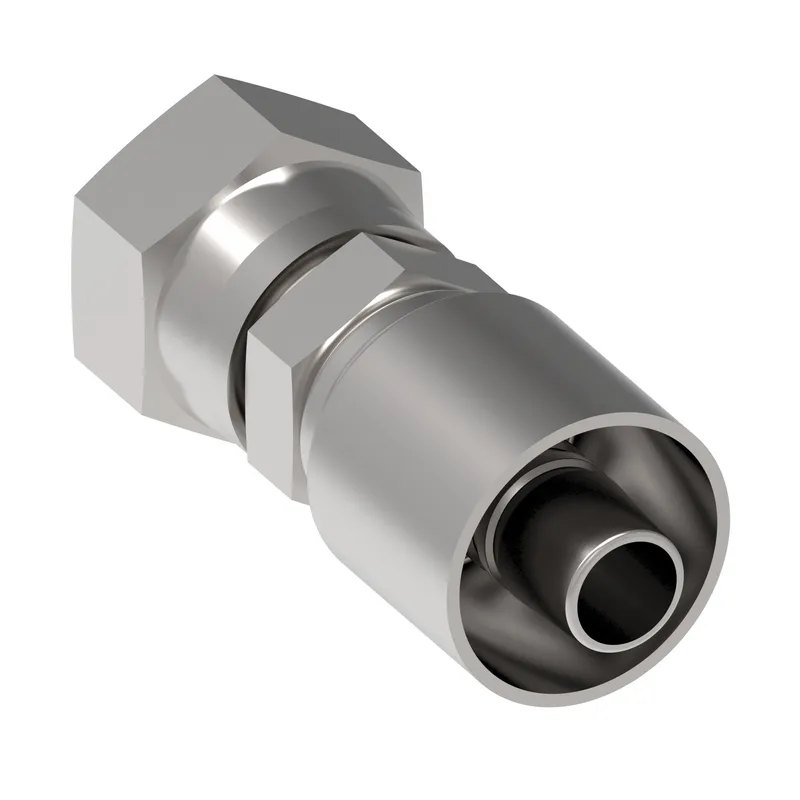

HOSE FTG, 1G/04, JIC-F/04, CS, STR

MPN: 1G4FJ4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G4FJ4?

Danfoss HOSE FTG, 1G/04, JIC-F/04, CS, STR, manufacturer part number 1G4FJ4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.820
A dimension MM	46.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	11-12 lb-ft(15-16 Nm)
End size 1	-4
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	13.995
Hex size 2 IN	0.551
Hex size 2 MM	13.995
Hose cut off factor IN	1.070
Hose cut off factor MM	27.300
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.610
Product height mm	15.494
Product length in	1.820
Product length mm	46.228
Product material	Carbon steel
Product width in	0.610
Product width mm	15.494
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	7/16-20 UNF
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
