Danfoss 1G5DLA3

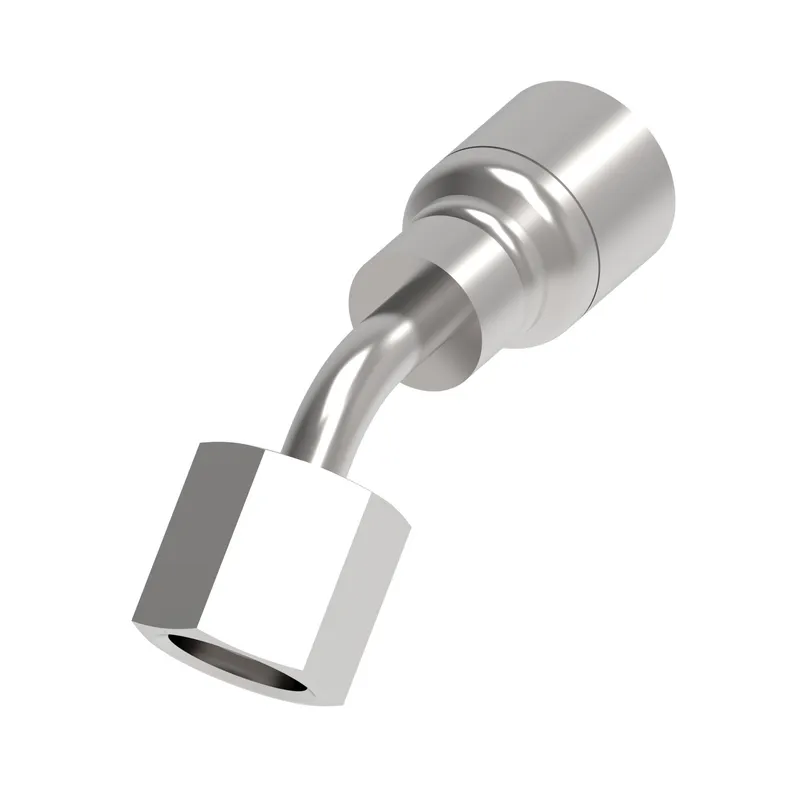

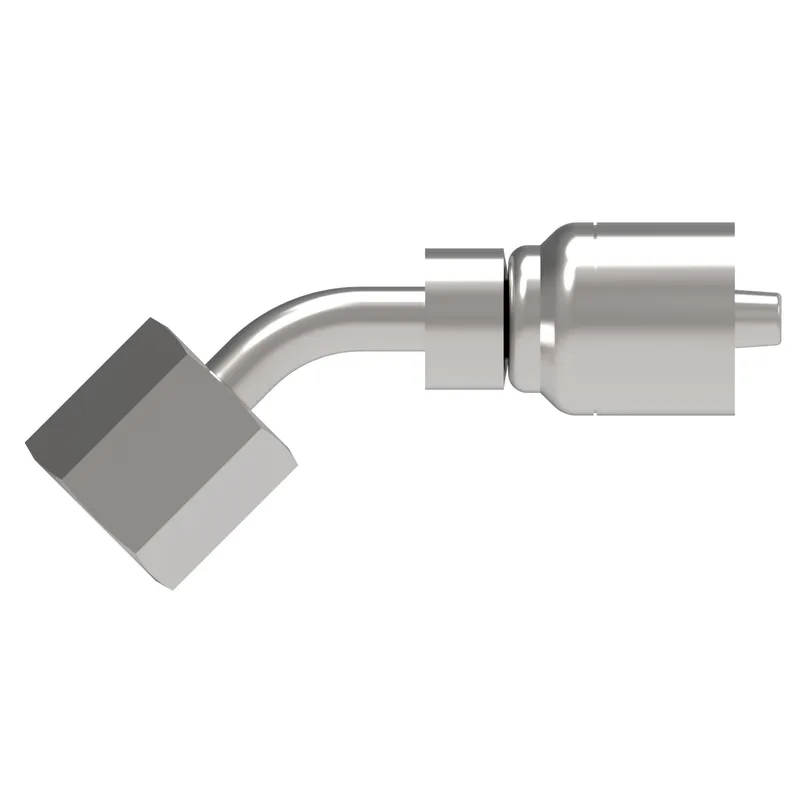

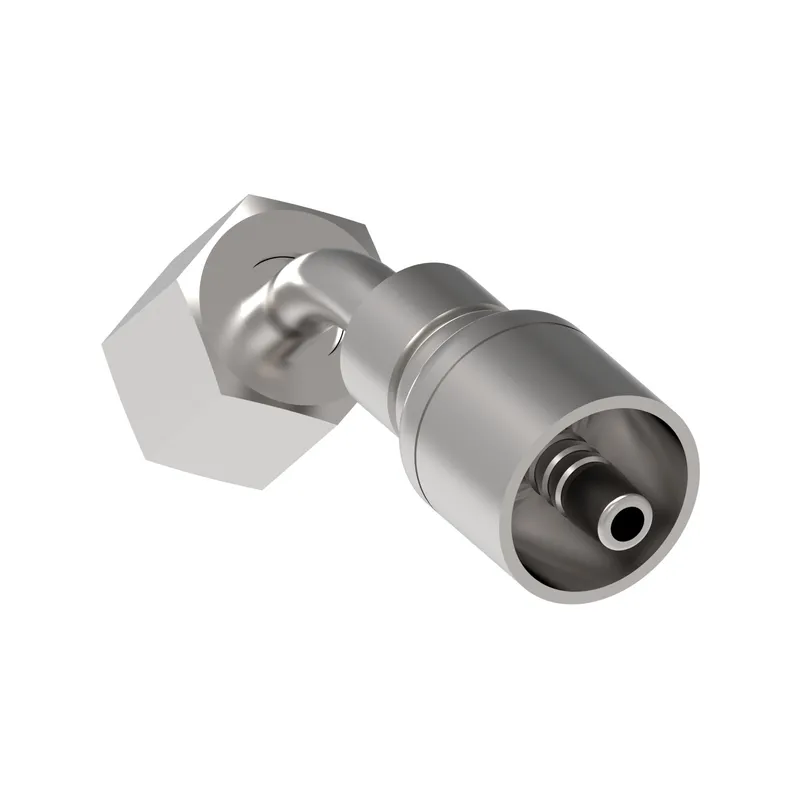

HOSE FTG, 1G/03, DKOL/05, CS, 45D

MPN: 1G5DLA3
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G5DLA3?

Danfoss HOSE FTG, 1G/03, DKOL/05, CS, 45D, manufacturer part number 1G5DLA3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.060
A dimension MM	52.400
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.190
Compatible hose ID MM	4.800
Construction Style	Crimp
Drop dimension IN	0.580
Drop dimension MM	14.80
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	14.000
Hose cut off factor IN	1.370
Hose cut off factor MM	34.900
Hose size	-3
Inside diameter IN	0.100
Inside diameter MM	2.500
Product height in	1.161
Product height mm	29.500
Product length in	2.339
Product length mm	59.400
Product material	Carbon steel
Product width in	0.636
Product width mm	16.159
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M12x1.5
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
