Danfoss 1G5DL3

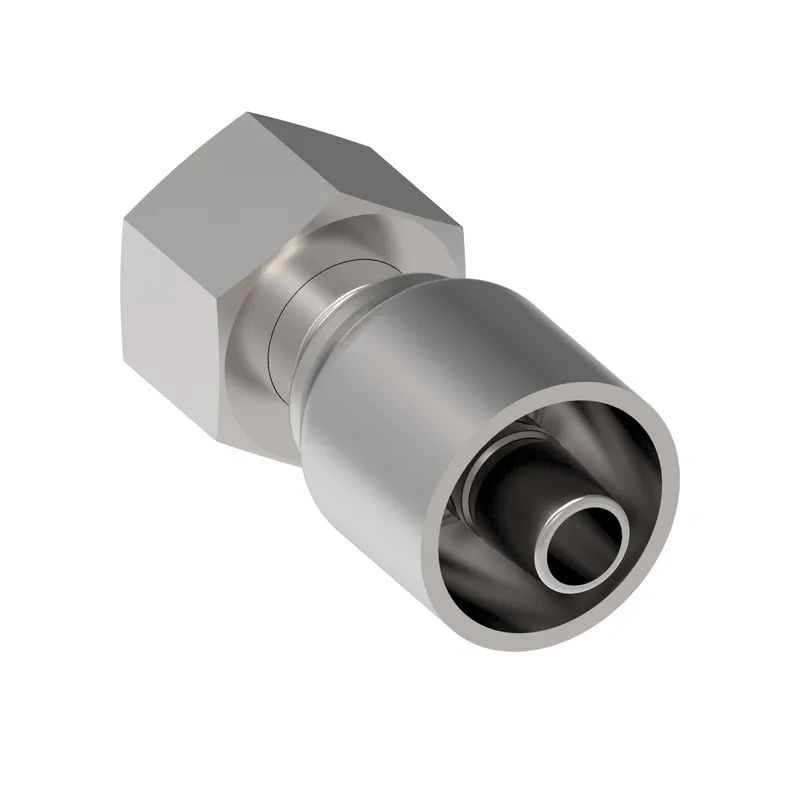

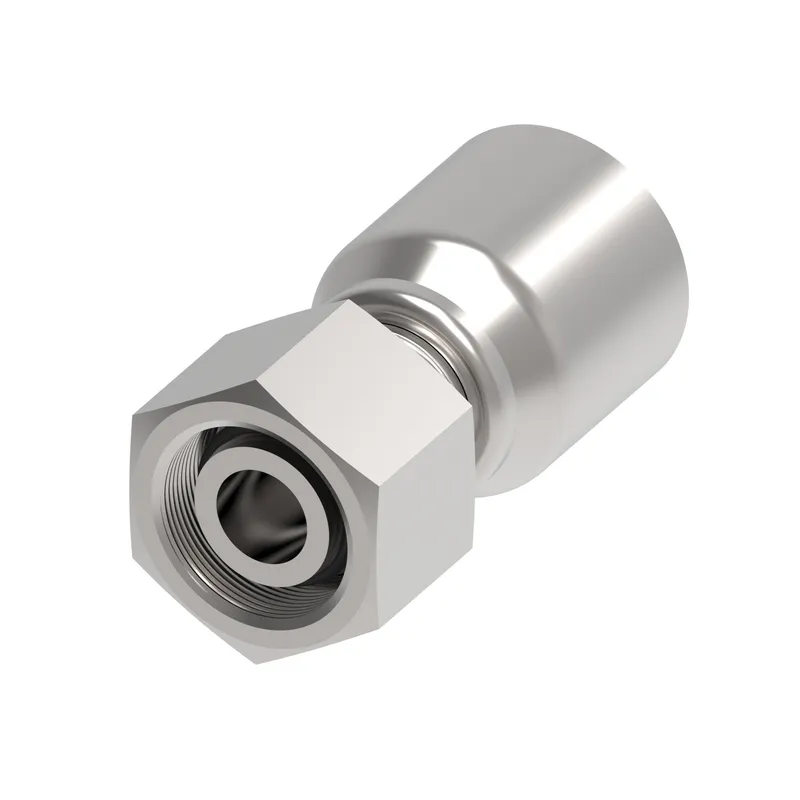

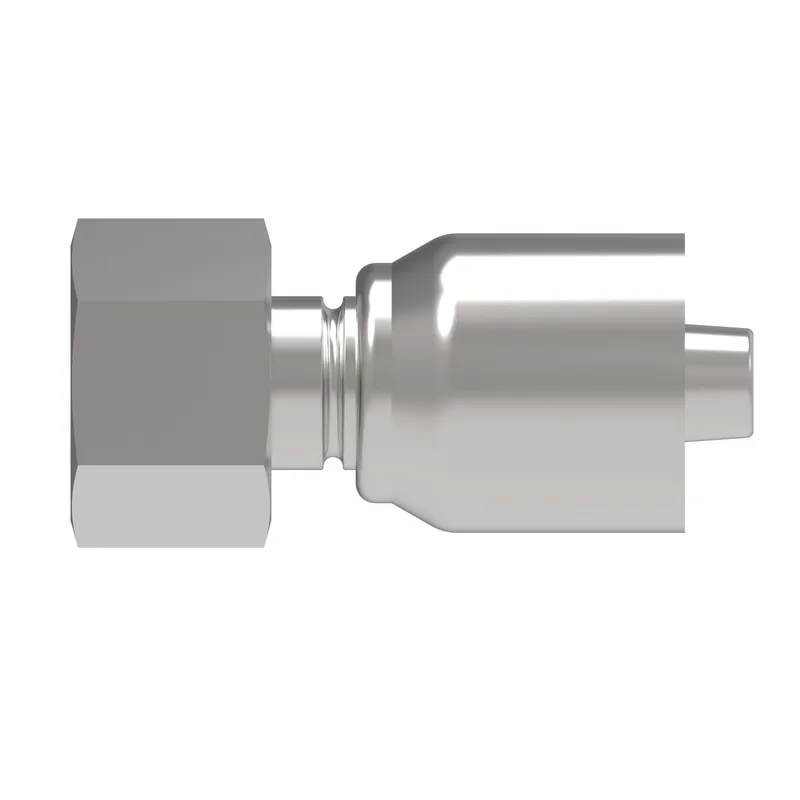

HOSE FTG, 1G/03, DKOL/05, CS, STR

MPN: 1G5DL3
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G5DL3?

Danfoss HOSE FTG, 1G/03, DKOL/05, CS, STR, manufacturer part number 1G5DL3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.560
A dimension MM	39.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.190
Compatible hose ID MM	4.800
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End size 1	-5
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.551
Hex size 1 MM	13.995
Hose cut off factor IN	0.870
Hose cut off factor MM	22.200
Hose size	-3
Inside diameter IN	0.100
Inside diameter MM	2.500
Product height in	0.610
Product height mm	15.494
Product length in	1.560
Product length mm	39.624
Product material	Carbon steel
Product width in	0.610
Product width mm	15.494
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M12x1.5
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
