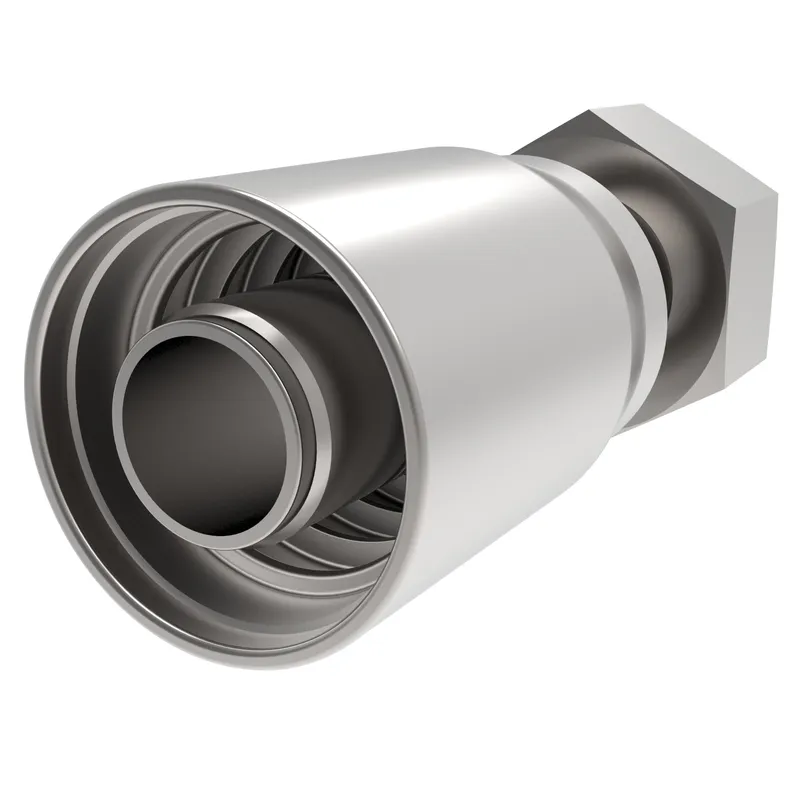

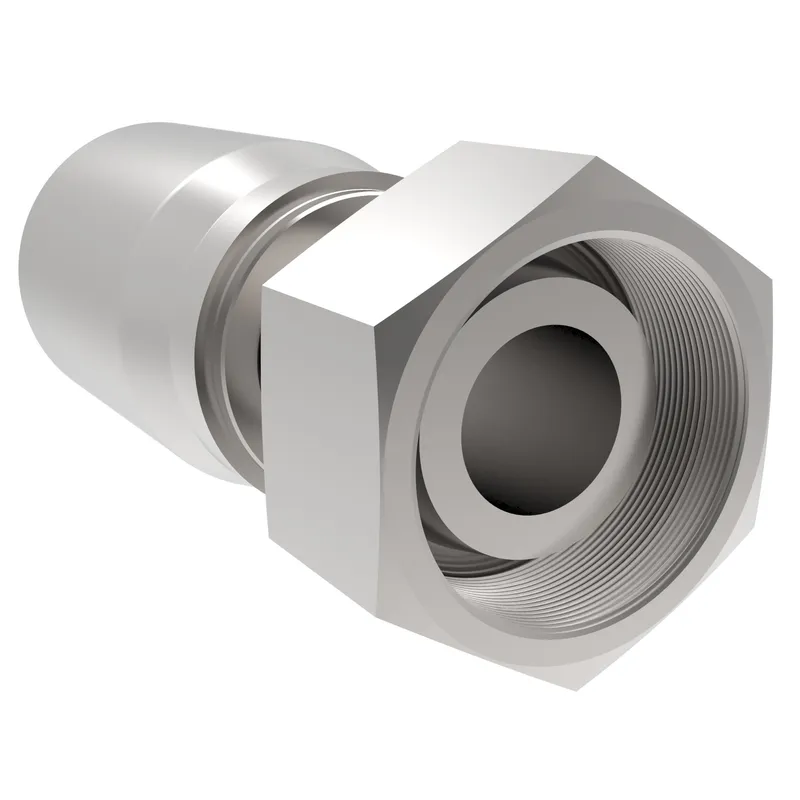

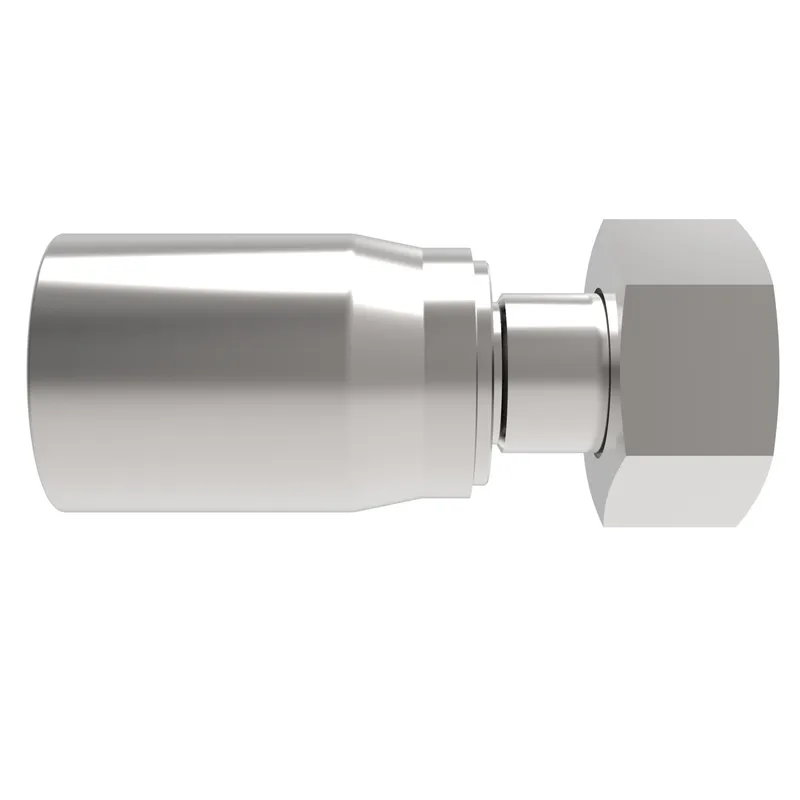

Danfoss 1E32DS16

HOSE FTG, 1A/16, DKOH-B/32, CS, STR

MPN
1E32DS16
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E32DS16?

Danfoss HOSE FTG, 1A/16, DKOH-B/32, CS, STR, manufacturer part number 1E32DS16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.720
A dimension MM94.500
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Construction StyleCrimp
End connection torque210-280 lb-ft(285-380 Nm)
End size 1-32
End type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hex size 1 IN2.362
Hex size 1 MM59.995
Hose cut off factor IN2.180
Hose cut off factor MM55.300
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in2.362
Product height mm59.995
Product length in4.810
Product length mm122.174
Product materialCarbon steel
Product width in2.362
Product width mm59.995 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 1M52x2
Working pressure max BAR110
Working pressure max PSI1600
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
