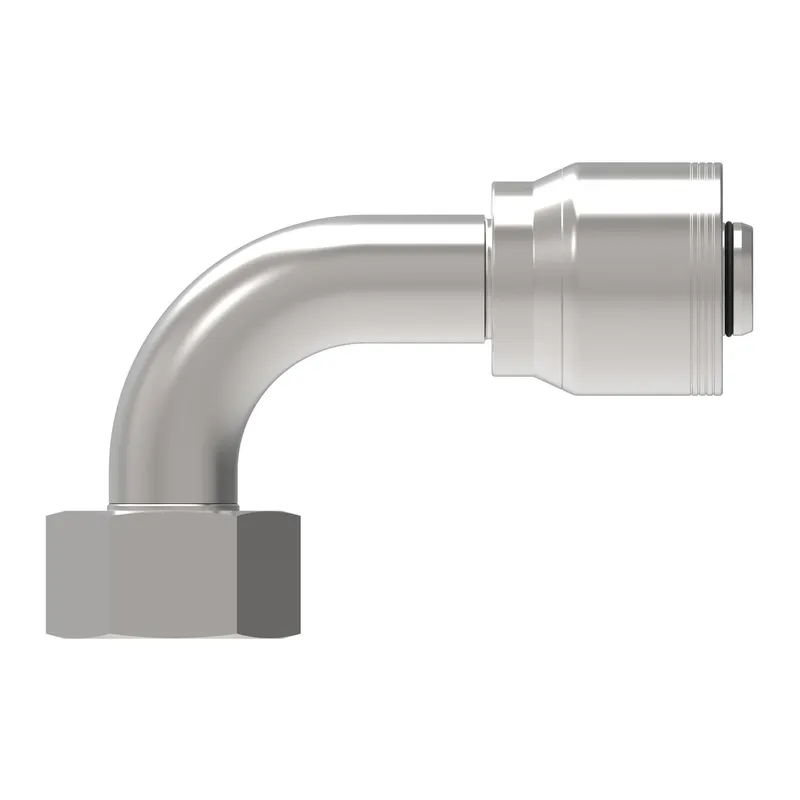

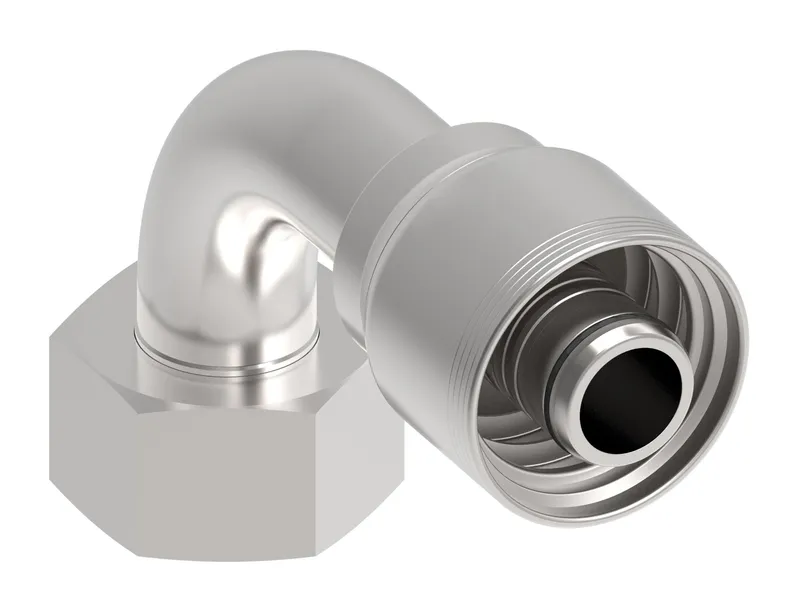

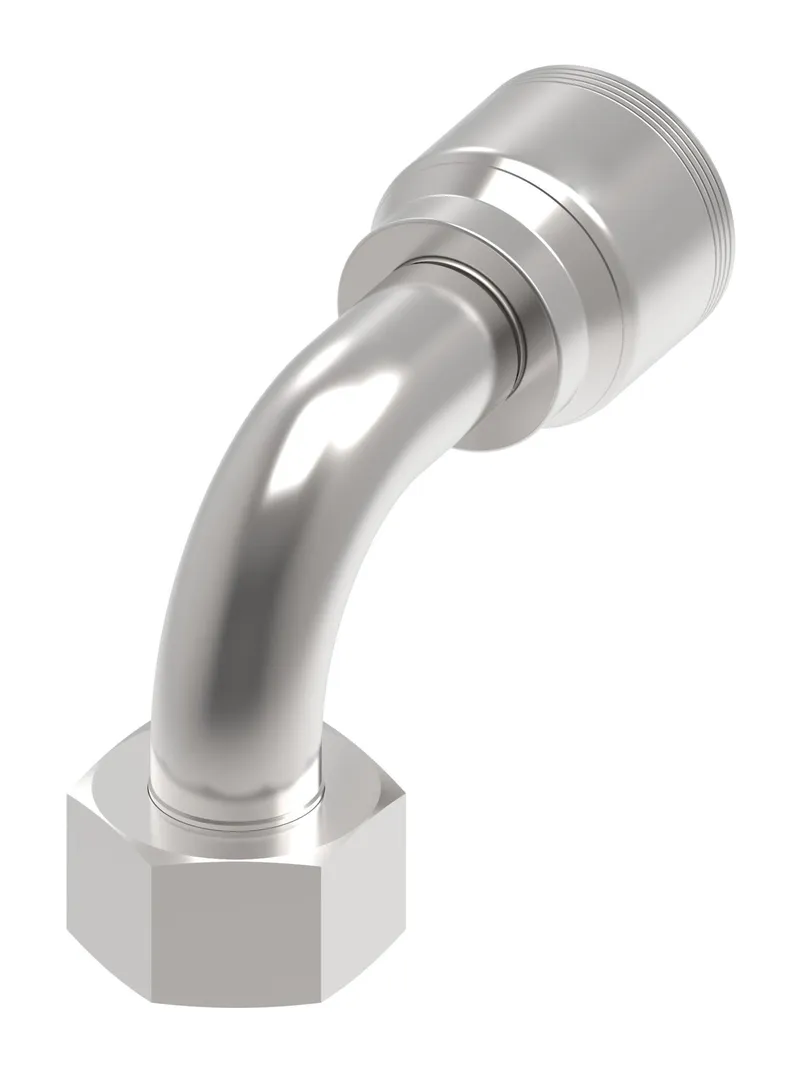

Danfoss 1E32DSB16

HOSE FTG, 1A/16, DKOH-B/32, CS, 90D

MPN: 1E32DSB16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E32DSB16?

Danfoss HOSE FTG, 1A/16, DKOH-B/32, CS, 90D, manufacturer part number 1E32DSB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.380
A dimension MM	136.700
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
Drop dimension IN	3.500
Drop dimension MM	89.00
End connection torque	210-280 lb-ft(285-380 Nm)
End size 1	-32
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	2.362
Hex size 1 MM	59.995
Hose cut off factor IN	3.820
Hose cut off factor MM	97.000
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	3.500
Product height mm	88.900
Product length in	6.790
Product length mm	172.466
Product material	Carbon steel
Product width in	2.362
Product width mm	59.995 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M52x2
Working pressure max BAR	110
Working pressure max PSI	1600
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
