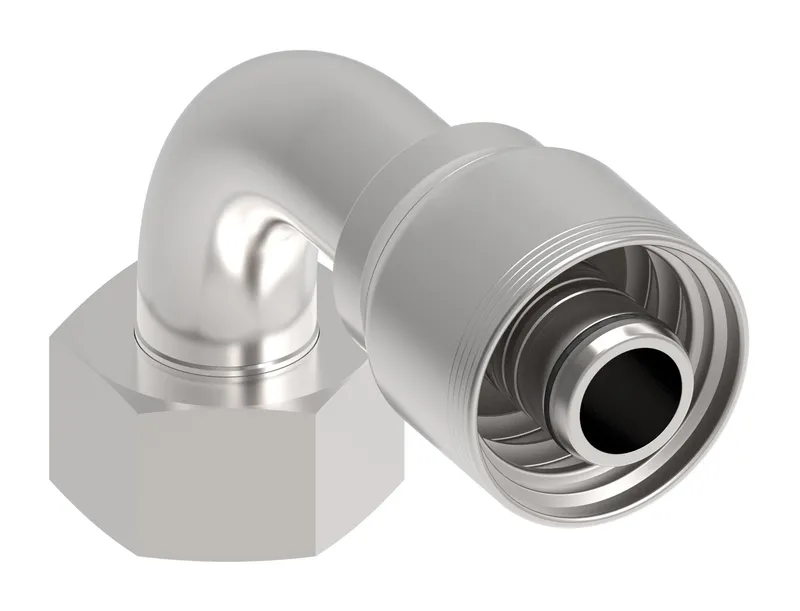

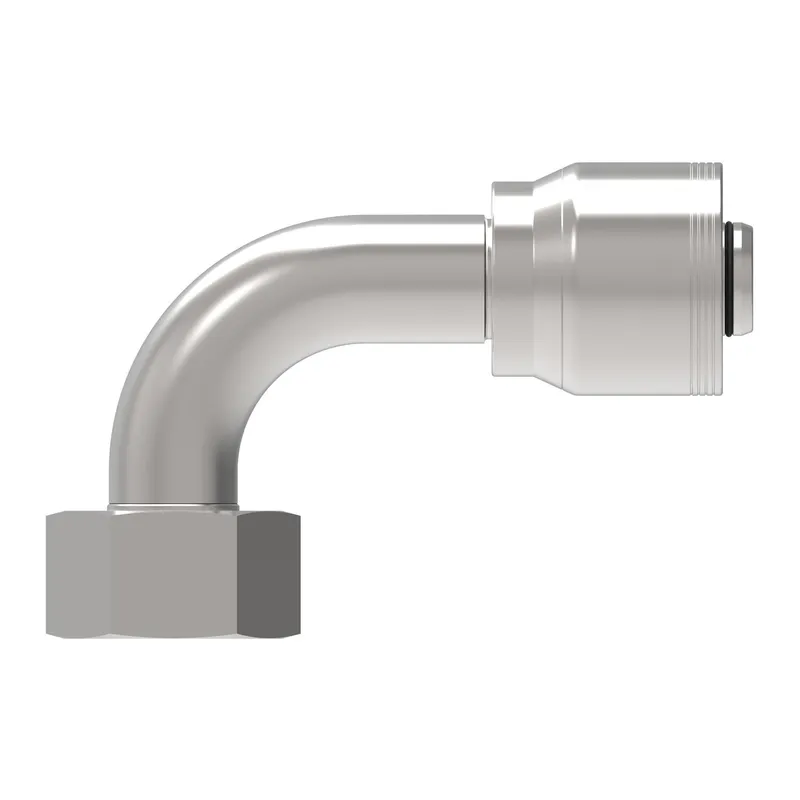

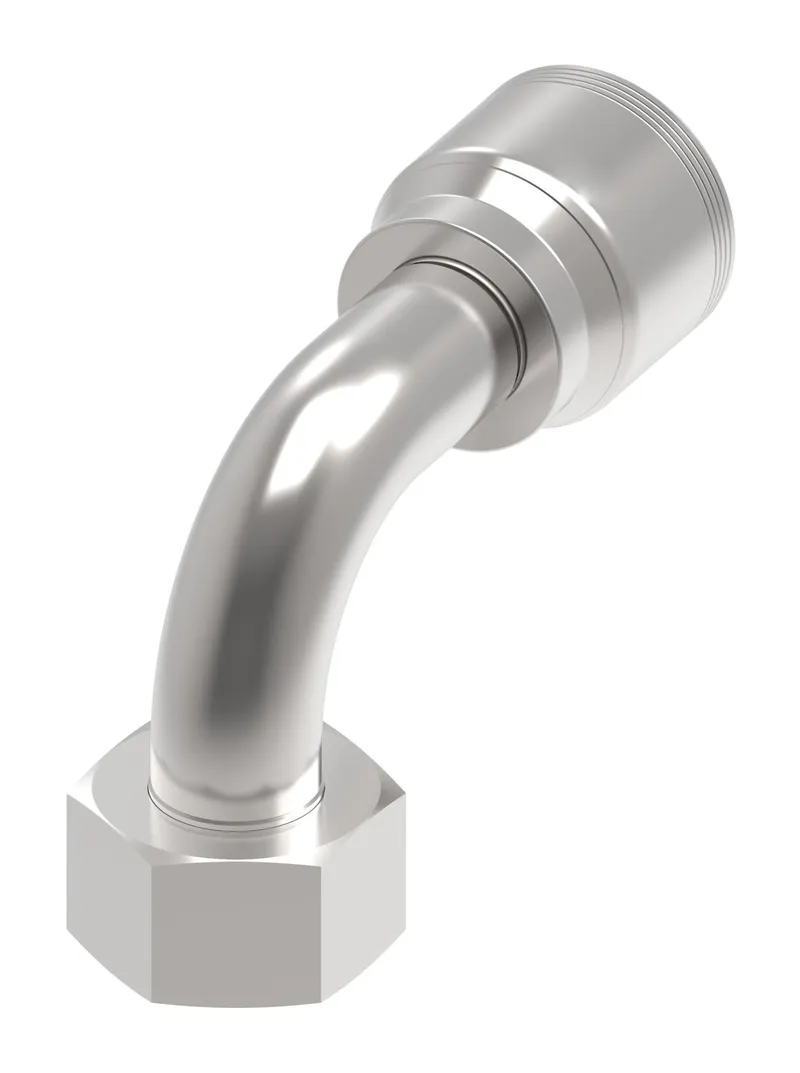

Danfoss 1E25DSB12

HOSE FTG, 1A/12, DKOH-B/12, CS, 90D

MPN
1E25DSB12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E25DSB12?

Danfoss HOSE FTG, 1A/12, DKOH-B/12, CS, 90D, manufacturer part number 1E25DSB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.830
A dimension MM122.700
Angle shape90 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Construction StyleCrimp
Drop dimension IN2.990
Drop dimension MM76.00
End size 1-25
End type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hex size 1 IN1.969
Hex size 1 MM50.000
Hex size 2 IN0.000
Hose cut off factor IN3.400
Hose cut off factor MM86.400
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in2.990
Product height mm75.946
Product length in5.170
Product length mm131.318
Product materialCarbon steel
Product width in1.834
Product width mm46.584 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 1M42x2
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E25DSB12: frequently asked questions

When can 1E25DSB12 be shipped?

1E25DSB12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E25DSB12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E25DSB12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E25DSB12, subject to availability and destination.
