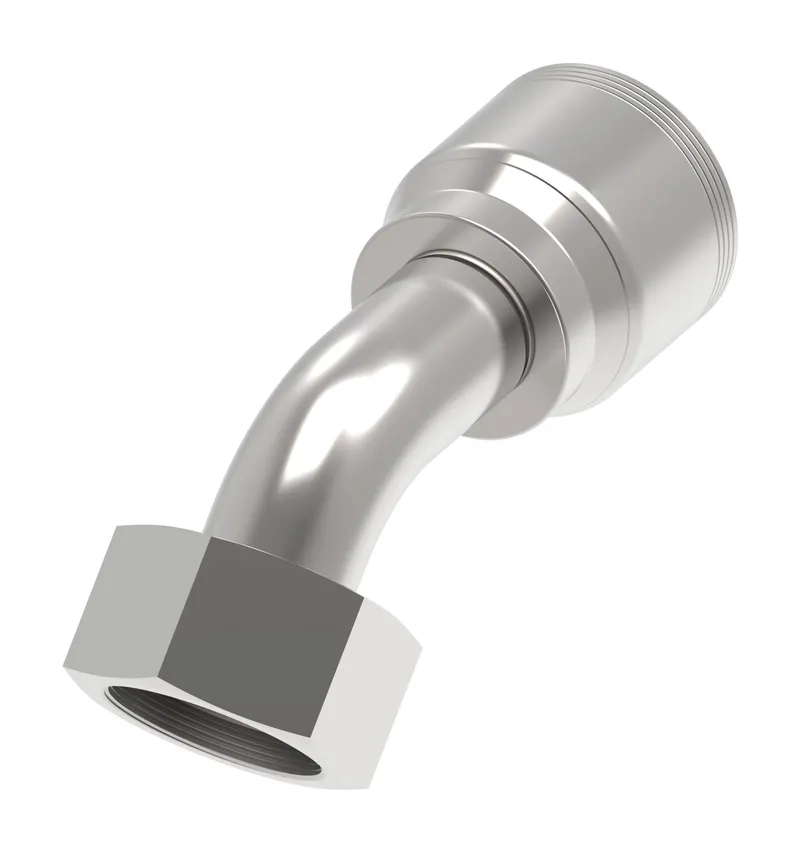

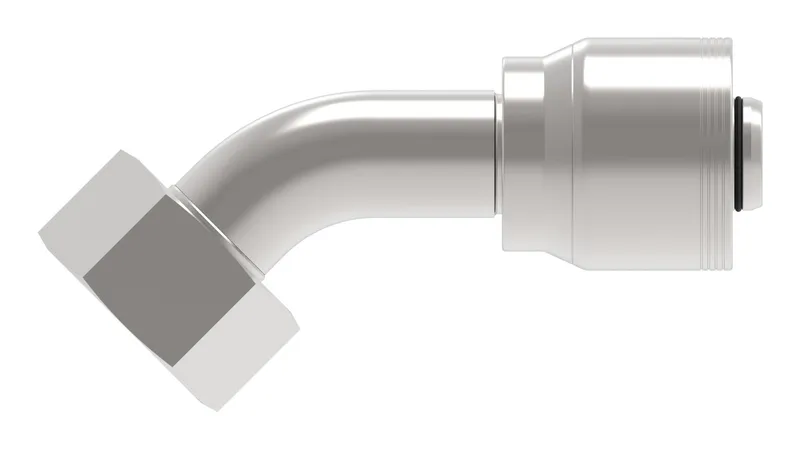

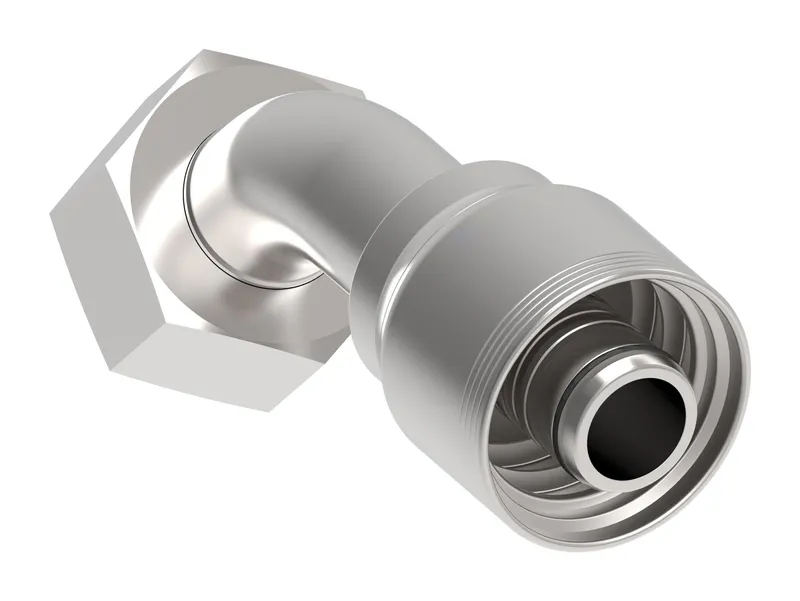

Danfoss 1E25DSA12

HOSE FTG, 1A/12, DKOH-B/12, CS, 45D

MPN: 1E25DSA12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E25DSA12?

Danfoss HOSE FTG, 1A/12, DKOH-B/12, CS, 45D, manufacturer part number 1E25DSA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.150
A dimension MM	130.800
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
Drop dimension IN	1.380
Drop dimension MM	35.00
End size 1	-25
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.968
Hex size 1 MM	49.987
Hose cut off factor IN	3.720
Hose cut off factor MM	94.400
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	1.380
Product height mm	35.052
Product length in	5.490
Product length mm	139.446
Product material	Carbon steel
Product width in	1.968
Product width mm	49.987 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M42x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1E25DSA12: frequently asked questions

When can 1E25DSA12 be shipped?

1E25DSA12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E25DSA12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E25DSA12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E25DSA12, subject to availability and destination.
