What is the Danfoss 1E20FLB16?

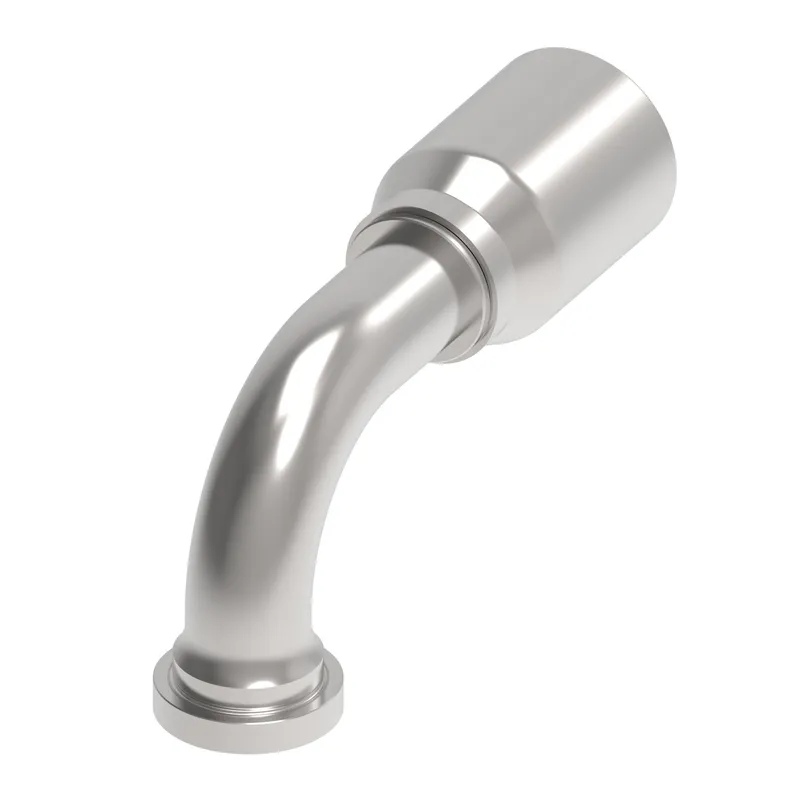

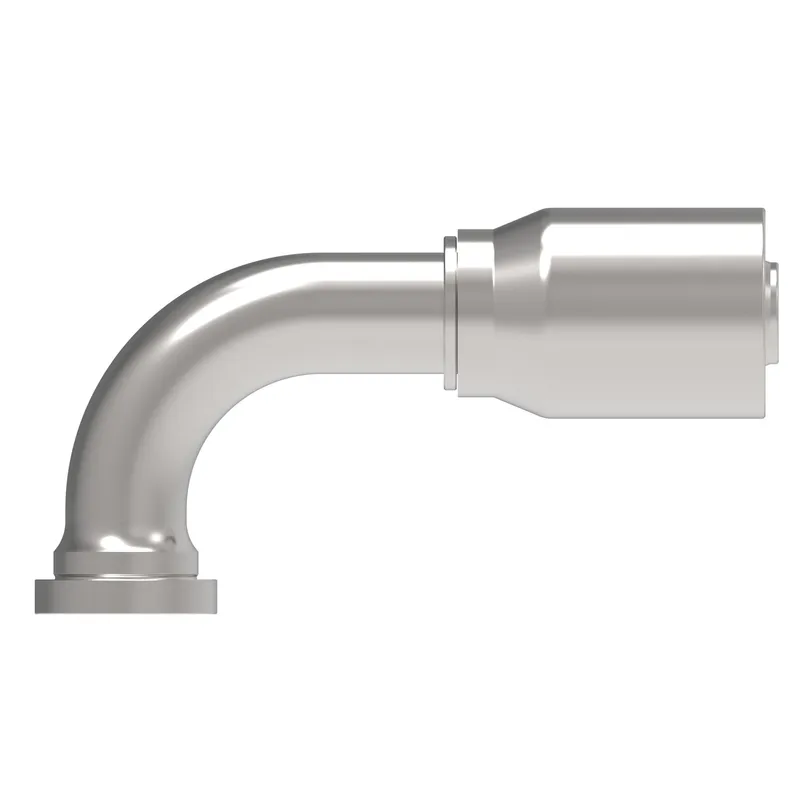

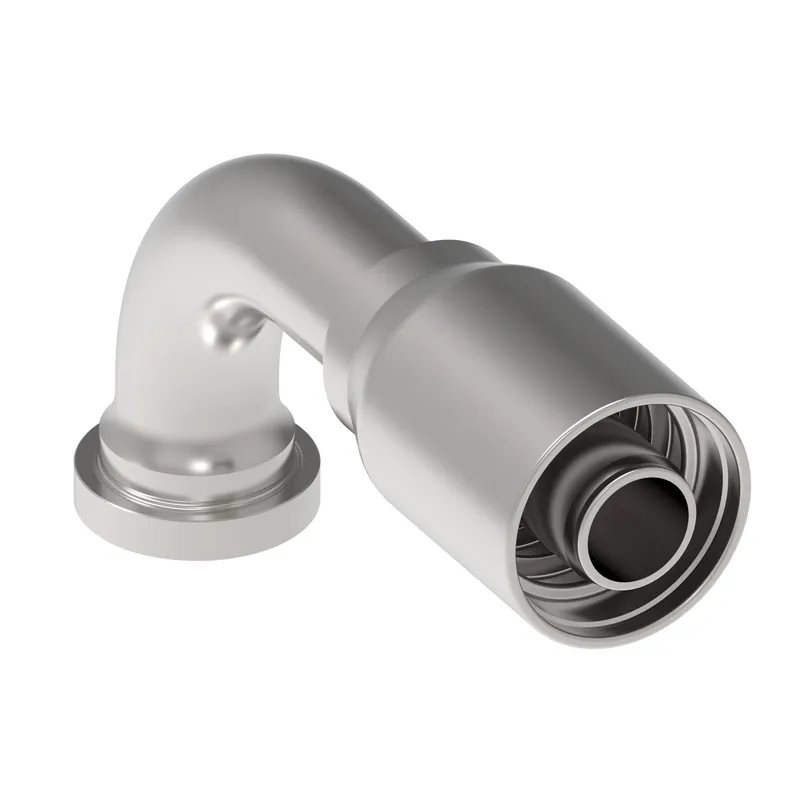

Danfoss HOSE FTG, 1A/16, C61/20, CS, 90D, manufacturer part number 1E20FLB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132161
A dimension IN5.720
A dimension MM145.200
Angle shape90 Degree
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC254
Compatible tube OD IN1.00
Compatible tube OD MM25.400
Construction StyleCrimp
Drop dimension IN3.500
Drop dimension MM89.00
End size 1-20
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN4.150
Hose cut off factor MM105.400
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in3.500
Product height mm88.900
Product length in6.790
Product length mm172.466
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN1.000
Tube OD 1 MM25.400
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
