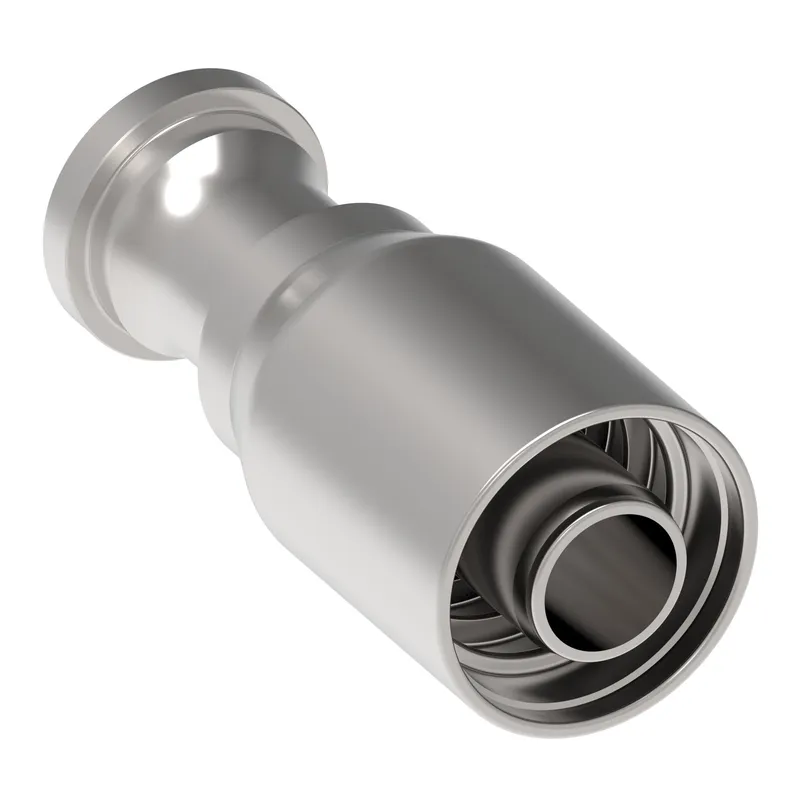

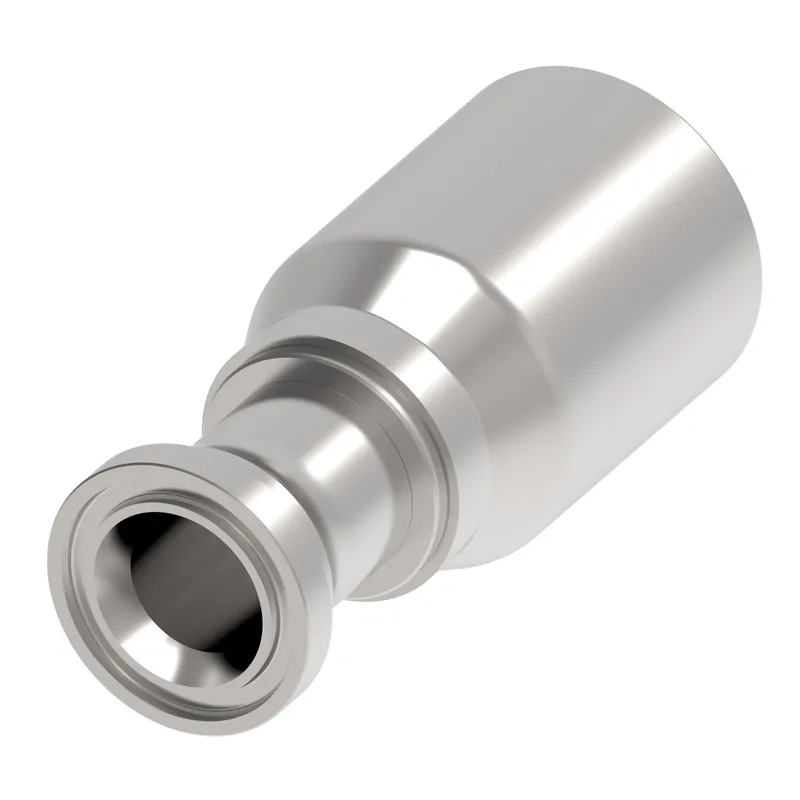

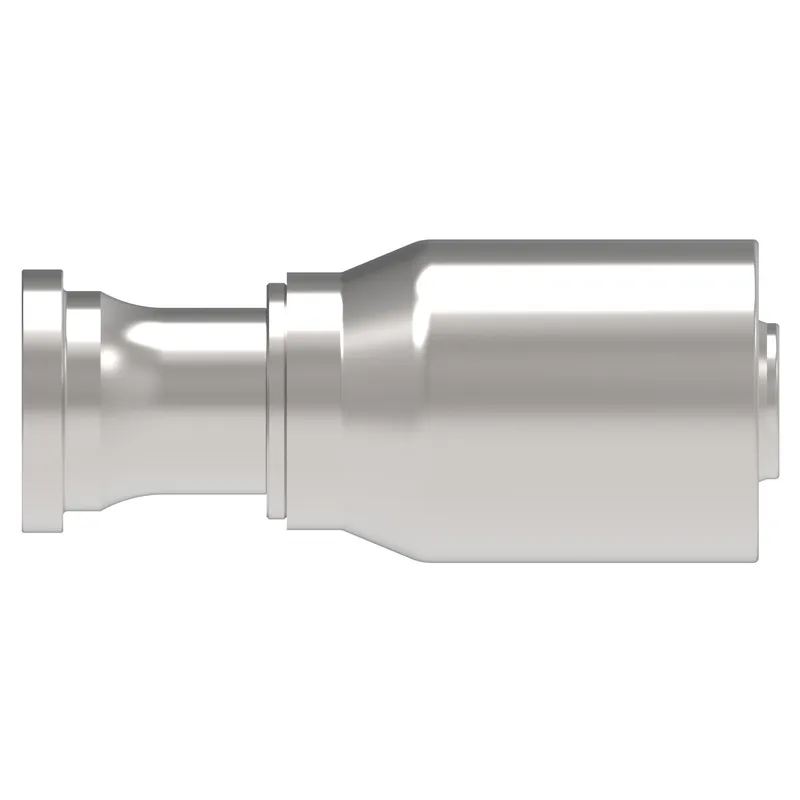

Danfoss 1E20FL20

HOSE FTG, 1A/20, C61/20, CS, STR

MPN
1E20FL20
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20FL20?

Danfoss HOSE FTG, 1A/20, C61/20, CS, STR, manufacturer part number 1E20FL20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132130
A dimension IN4.620
A dimension MM117.400
Angle shapeStraight
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Compatible hosesFC254
Compatible tube OD IN1.25
Compatible tube OD MM31.750
Construction StyleCrimp
End size 1-20
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN2.450
Hose cut off factor MM62.200
Hose size-20
Inside diameter IN0.990
Inside diameter MM25.200
Product height in2.457
Product height mm62.408
Product length in5.570
Product length mm141.478
Product materialCarbon steel
Product width in2.457
Product width mm62.408 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN1.250
Tube OD 1 MM31.750
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E20FL20: frequently asked questions

When can 1E20FL20 be shipped?

1E20FL20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E20FL20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E20FL20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E20FL20, subject to availability and destination.
