Danfoss 1E24FHA24

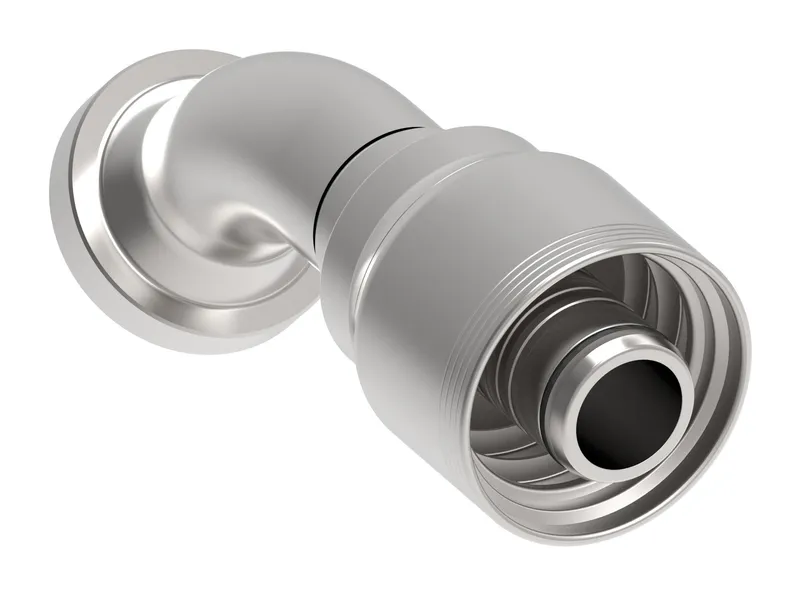

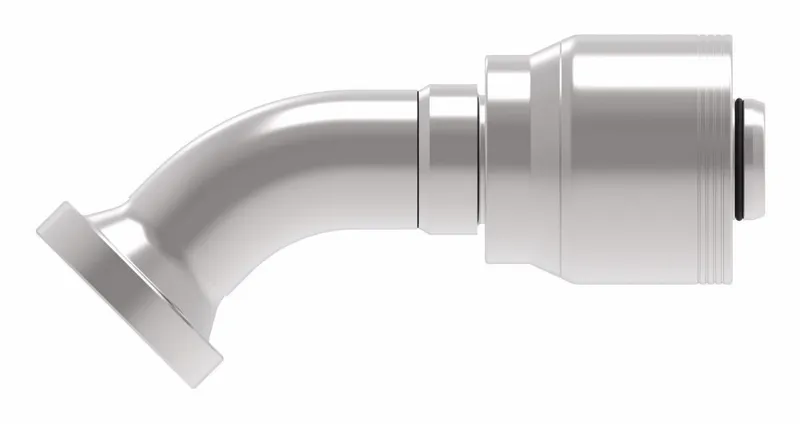

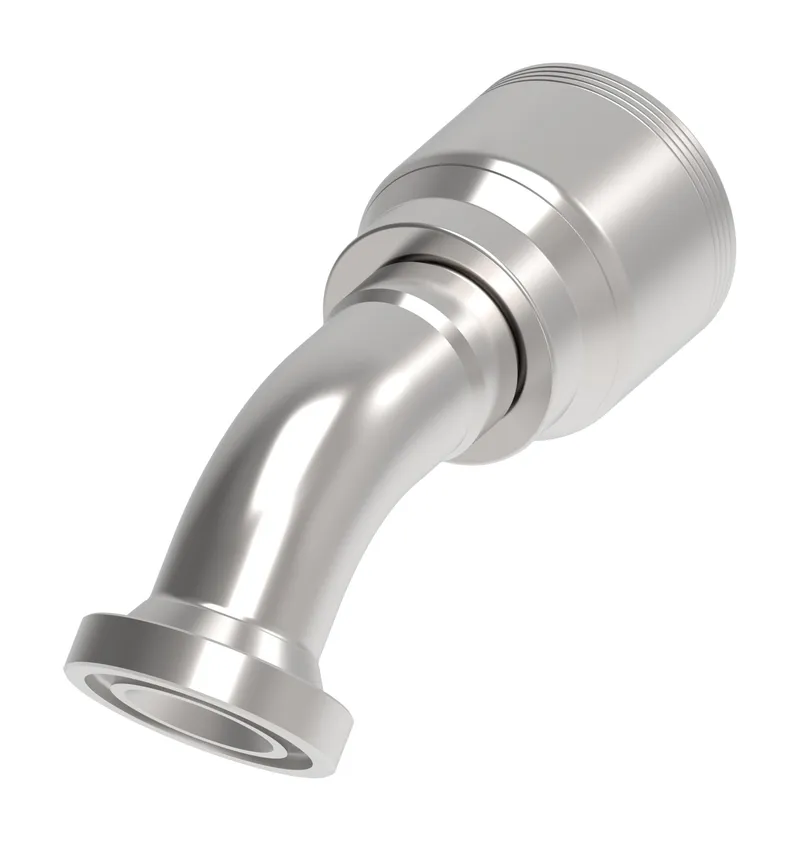

HOSE FTG, 1A/24, C62/24, CS, 45D

MPN: 1E24FHA24
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E24FHA24?

Danfoss HOSE FTG, 1A/24, C62/24, CS, 45D, manufacturer part number 1E24FHA24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132239
A dimension IN	8.430
A dimension MM	214.100
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Compatible hoses	FC254
Compatible tube OD IN	1.50
Compatible tube OD MM	38.100
Construction Style	Crimp
Drop dimension IN	1.770
Drop dimension MM	45.00
End size 1	-24
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	5.360
Hose cut off factor MM	136.100
Hose size	-24
Inside diameter IN	1.220
Inside diameter MM	31.100
Product height in	1.770
Product height mm	44.958
Product length in	8.280
Product length mm	210.312
Product material	Carbon steel
Product width in	2.823
Product width mm	71.704 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.500
Tube OD 1 MM	38.100
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
