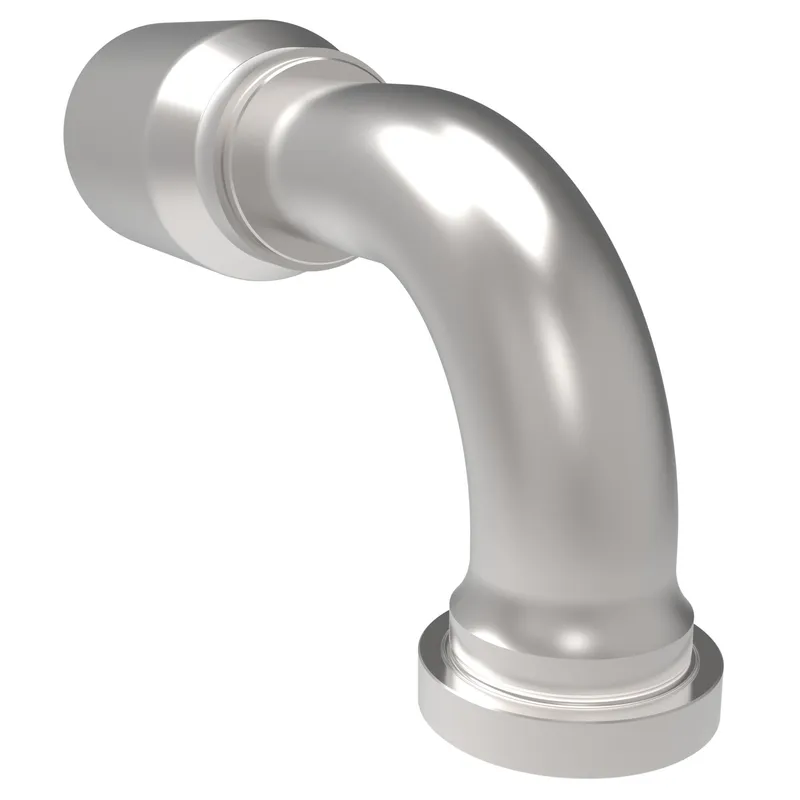

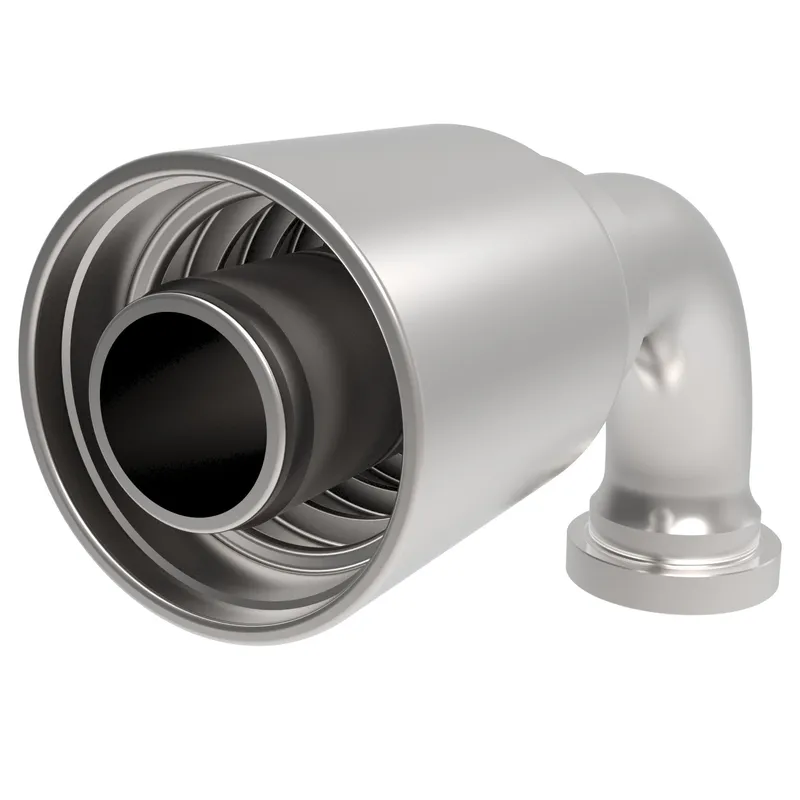

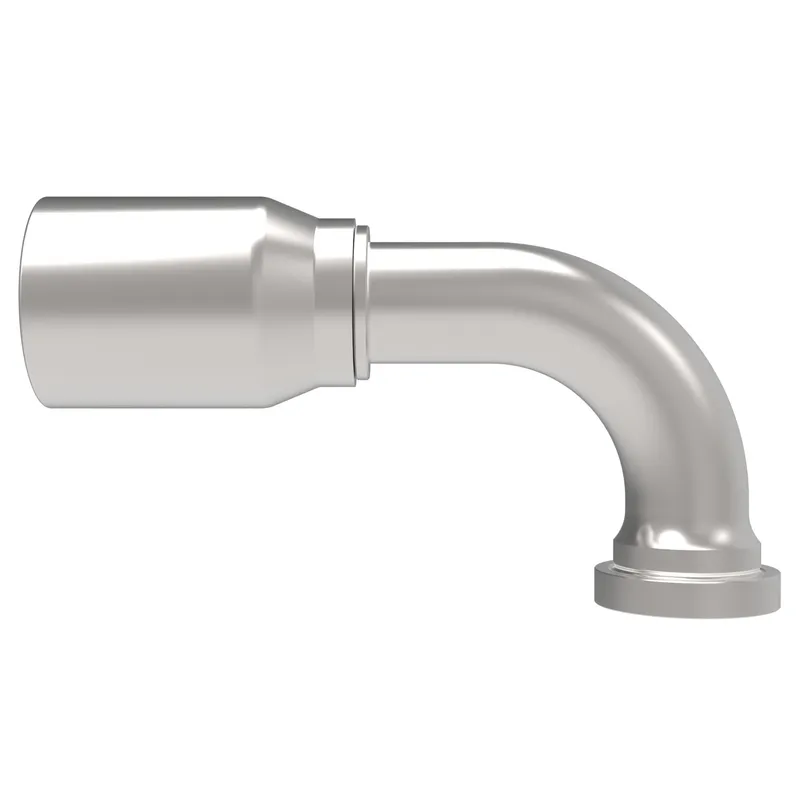

Danfoss 1E20FHB20

HOSE FTG, 1A/20, C62/20, CS, 90D

MPN: 1E20FHB20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20FHB20?

Danfoss HOSE FTG, 1A/20, C62/20, CS, 90D, manufacturer part number 1E20FHB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132116
A dimension IN	6.360
A dimension MM	161.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC254
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
Drop dimension IN	3.500
Drop dimension MM	89.00
End size 1	-20
End size 2	-20
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	4.190
Hose cut off factor MM	106.500
Hose size	-20
Inside diameter IN	0.990
Inside diameter MM	25.200
Product height in	3.500
Product height mm	88.900
Product length in	7.420
Product length mm	188.468
Product material	Carbon steel
Product width in	2.457
Product width mm	62.408 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-40
Working temperature min F	-40
