Danfoss 1E20DSB12

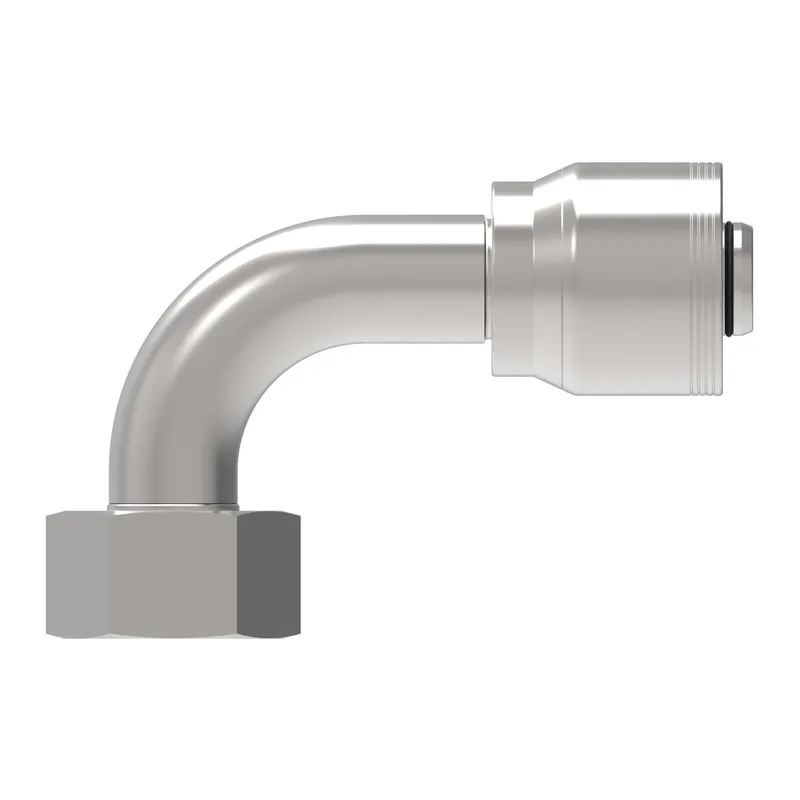

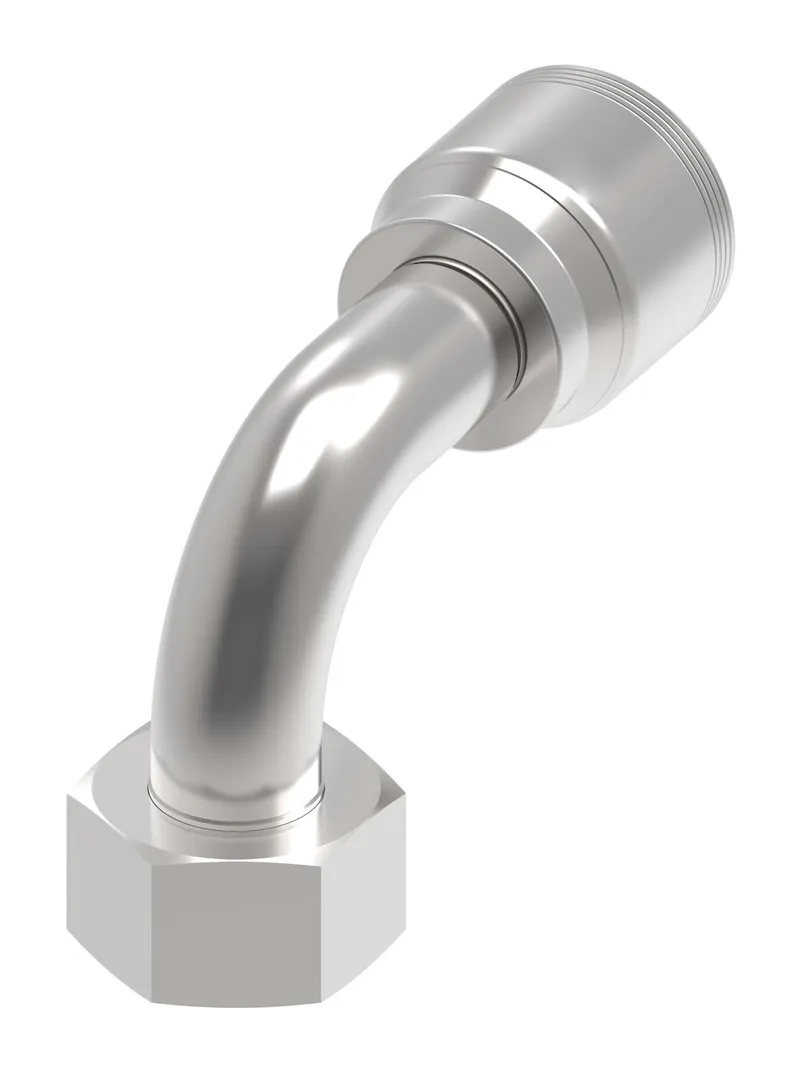

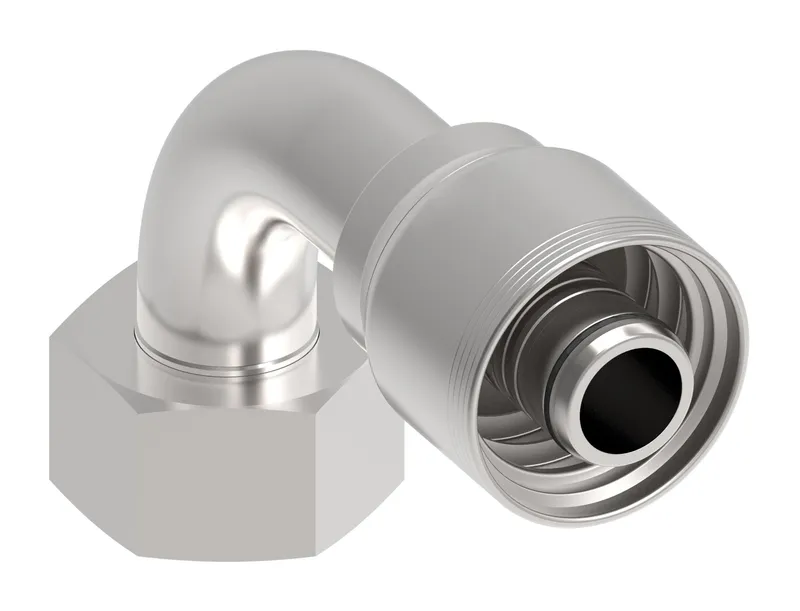

HOSE FTG, 1A/12, DKOH-B/20, CS, 90D

MPN
1E20DSB12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E20DSB12?

Danfoss HOSE FTG, 1A/12, DKOH-B/20, CS, 90D, manufacturer part number 1E20DSB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132055
A dimension IN4.090
A dimension MM103.900
Angle shape90 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC254
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
Drop dimension IN2.560
Drop dimension MM65.00
End connection torque125-140 lb-ft(170-190 Nm)
End size 1-20
End type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hose cut off factor IN2.670
Hose cut off factor MM67.700
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in2.560
Product height mm65.024
Product length in4.720
Product length mm119.888
Product materialCarbon steel
Product width in1.834
Product width mm46.584 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 1M36x2
Tube OD 1 IN0.750
Tube OD 1 MM19.050
Working pressure max BAR172
Working pressure max PSI2500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
