Danfoss 1E16FH16

HOSE FTG, 1A/16, C62/16, CS, STR

MPN: 1E16FH16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

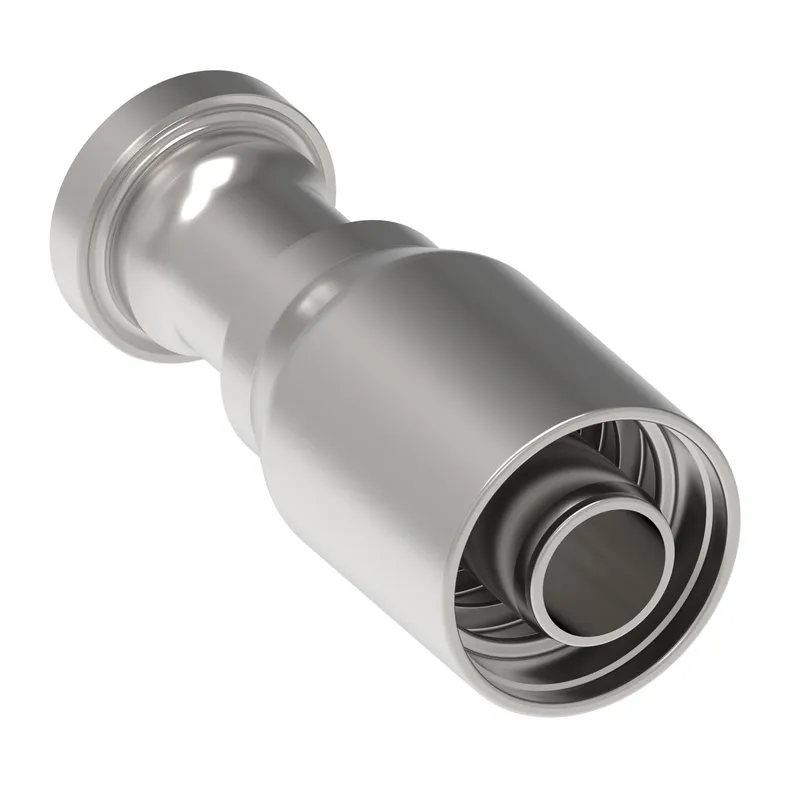

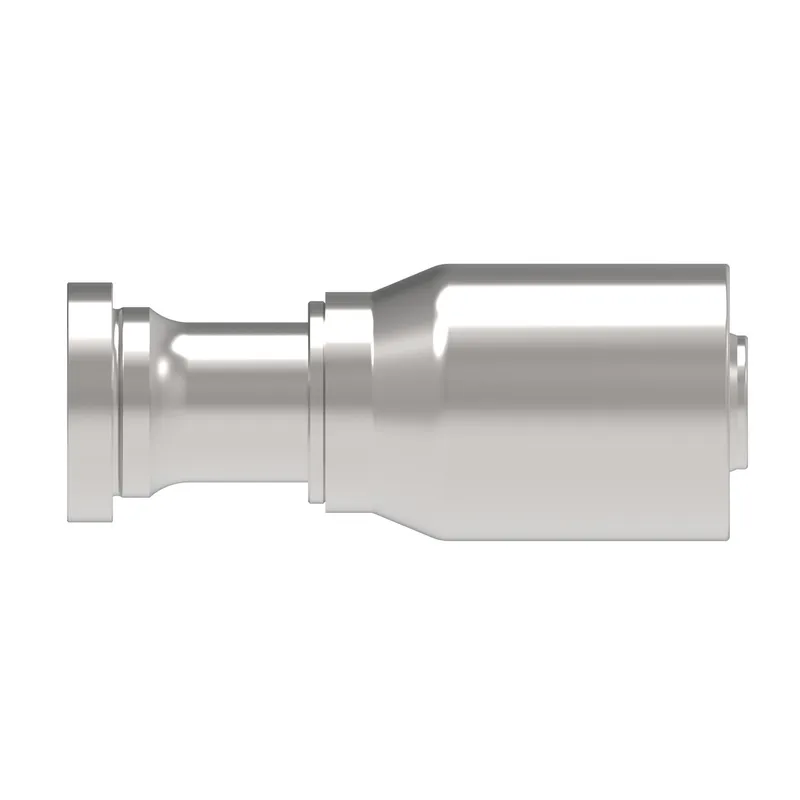

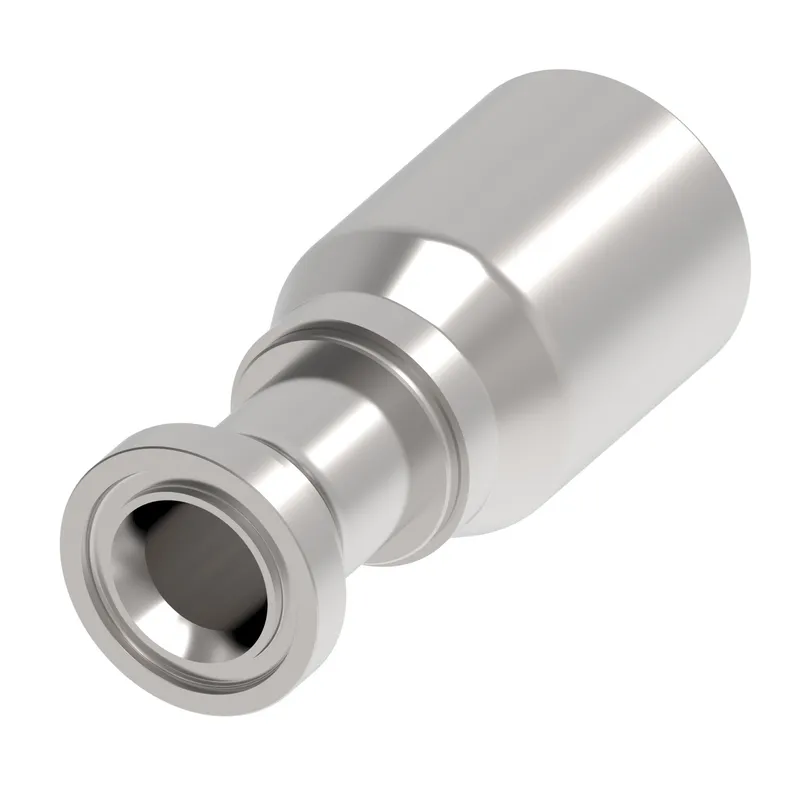

What is the Danfoss 1E16FH16?

Danfoss HOSE FTG, 1A/16, C62/16, CS, STR, manufacturer part number 1E16FH16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131799
A dimension IN	3.890
A dimension MM	98.900
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-16
End size 2	-16
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	2.330
Hose cut off factor MM	59.100
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	2.126
Product height mm	54.000
Product length in	5.320
Product length mm	135.128
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-40
Working temperature min F	-40
