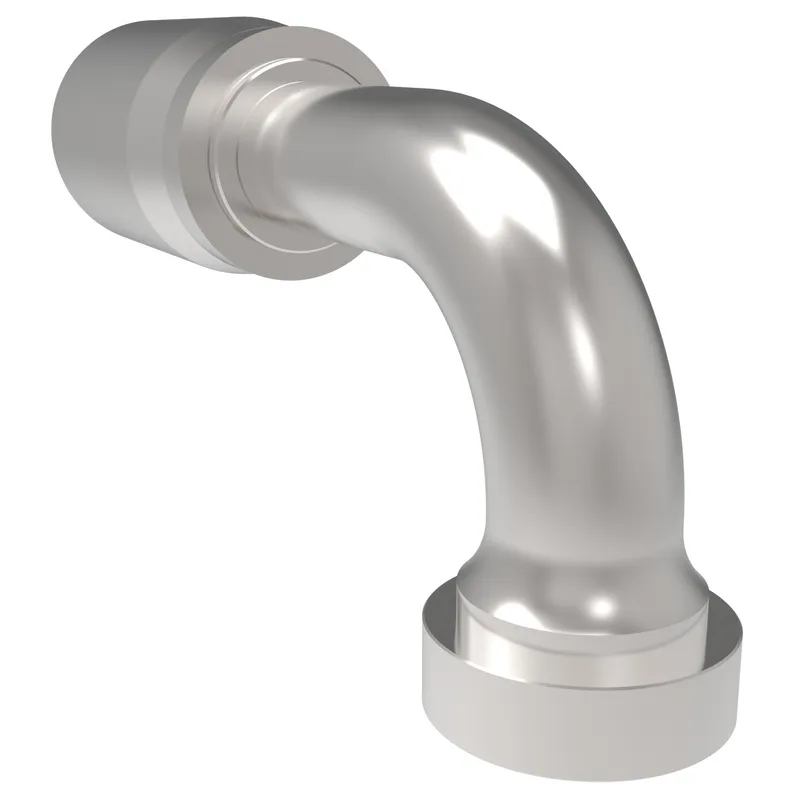

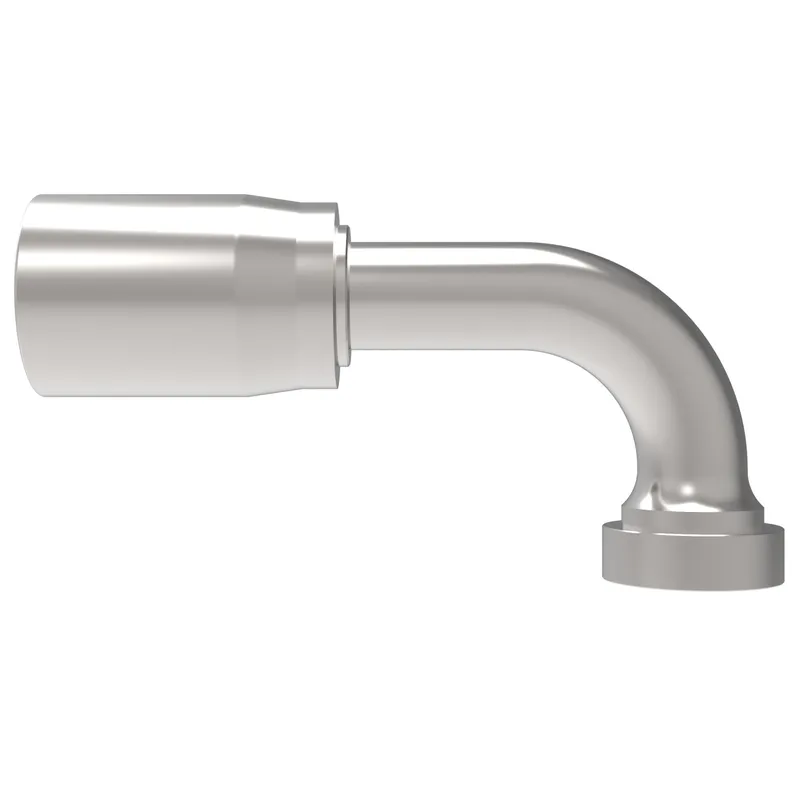

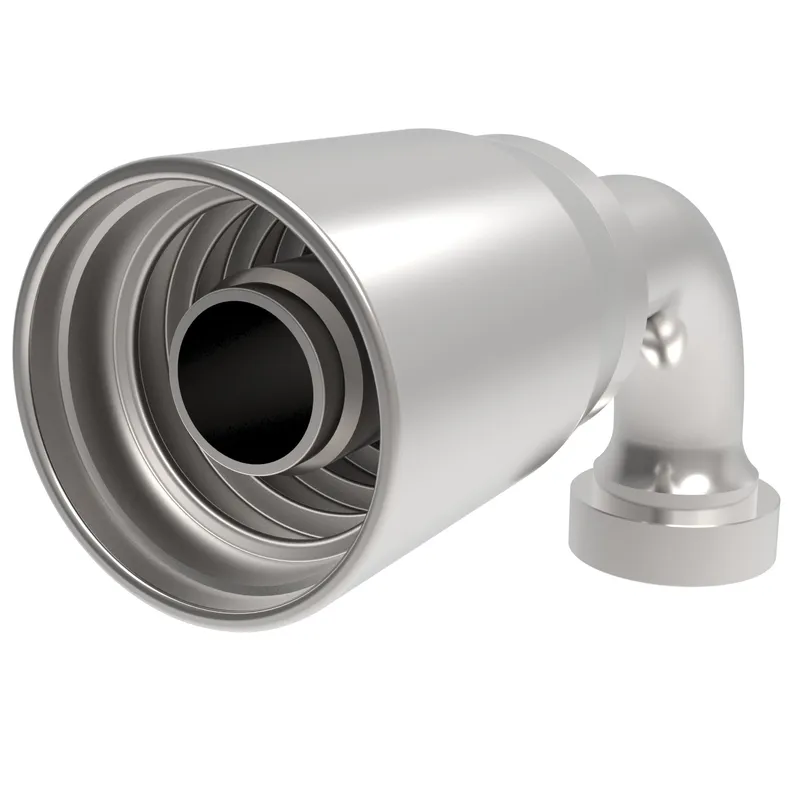

Danfoss 1E16CTB16

HOSE FTG, 1A/16, CATCL/16, CS, 90D

MPN: 1E16CTB16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E16CTB16?

Danfoss HOSE FTG, 1A/16, CATCL/16, CS, 90D, manufacturer part number 1E16CTB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131751
A dimension IN	4.960
A dimension MM	126.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	2.980
Drop dimension MM	75.70
End size 1	-16
End size 2	-16
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hose cut off factor IN	3.390
Hose cut off factor MM	86.200
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.200
Product height in	2.980
Product height mm	75.692
Product length in	6.170
Product length mm	156.718
Product material	Carbon steel
Product width in	2.126
Product width mm	54.000 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
