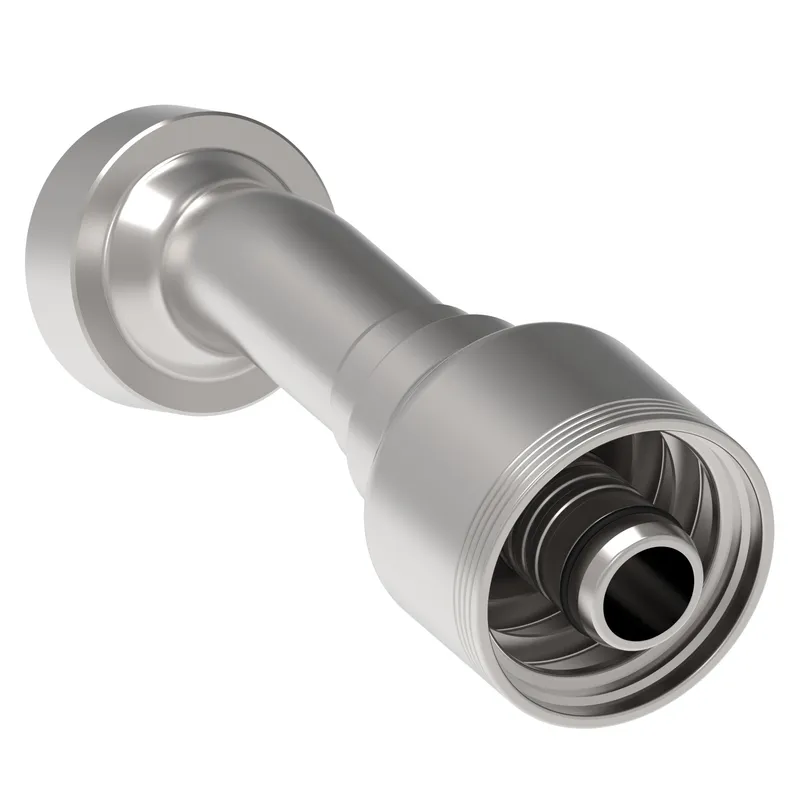

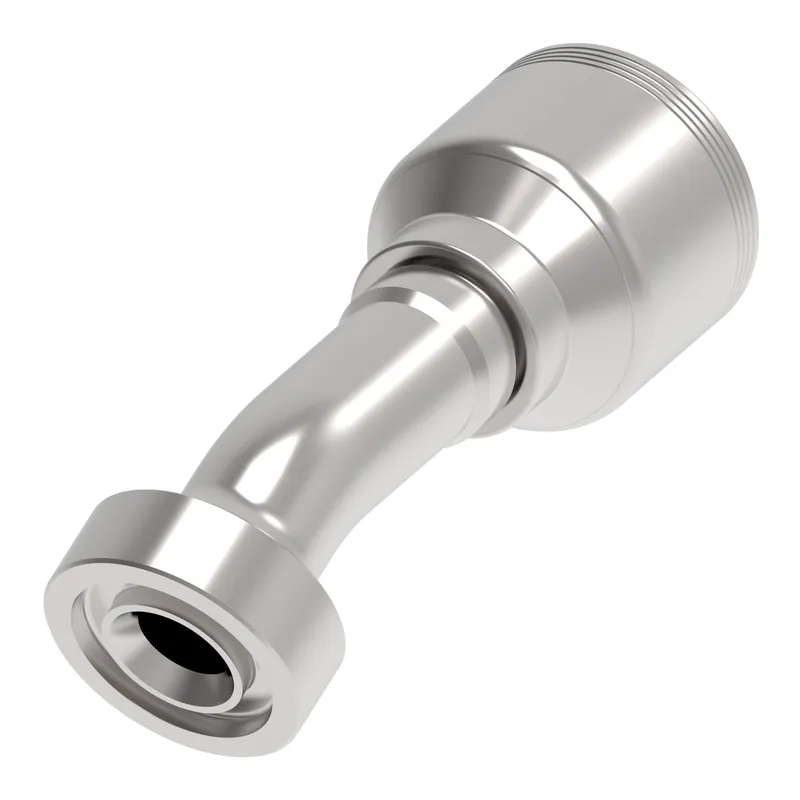

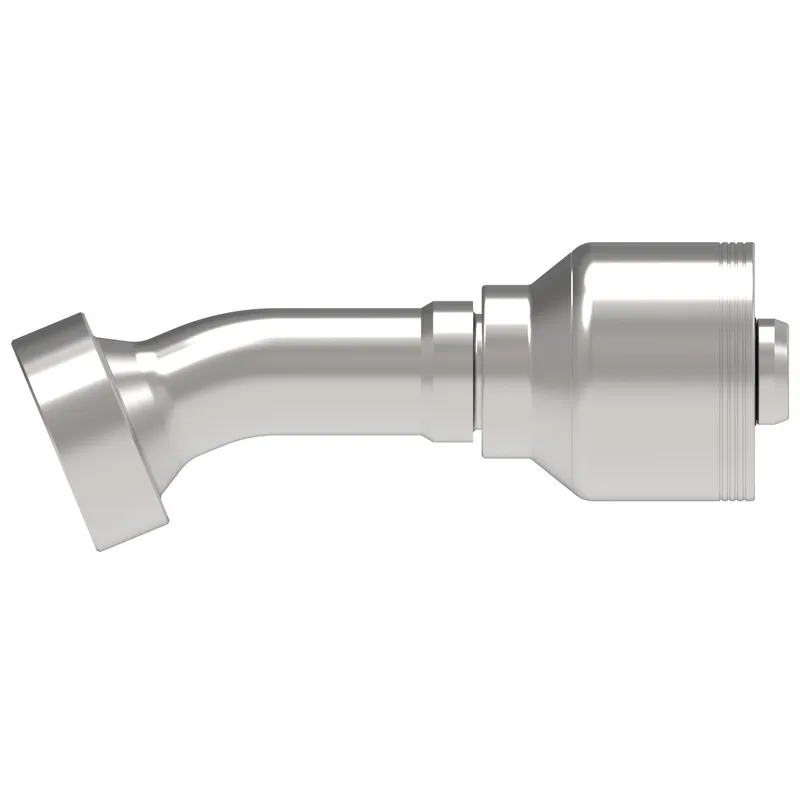

Danfoss 1E12CTD12

HOSE FTG, 1A/12, CATCL/12, CS, 22.5D

MPN: 1E12CTD12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12CTD12?

Danfoss HOSE FTG, 1A/12, CATCL/12, CS, 22.5D, manufacturer part number 1E12CTD12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131560
A dimension IN	4.970
A dimension MM	126.200
Angle shape	22.5 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
Drop dimension IN	0.540
Drop dimension MM	13.60
End size 1	-12
End type 1	Caterpillar flange
Finish plating	Dura-Kote
Hose cut off factor IN	3.550
Hose cut off factor MM	90.200
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	0.540
Product height mm	13.716
Product length in	5.490
Product length mm	139.446
Product material	Carbon steel
Product width in	1.834
Product width mm	46.583 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1E12CTD12: frequently asked questions

When can 1E12CTD12 be shipped?

1E12CTD12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E12CTD12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E12CTD12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E12CTD12, subject to availability and destination.
