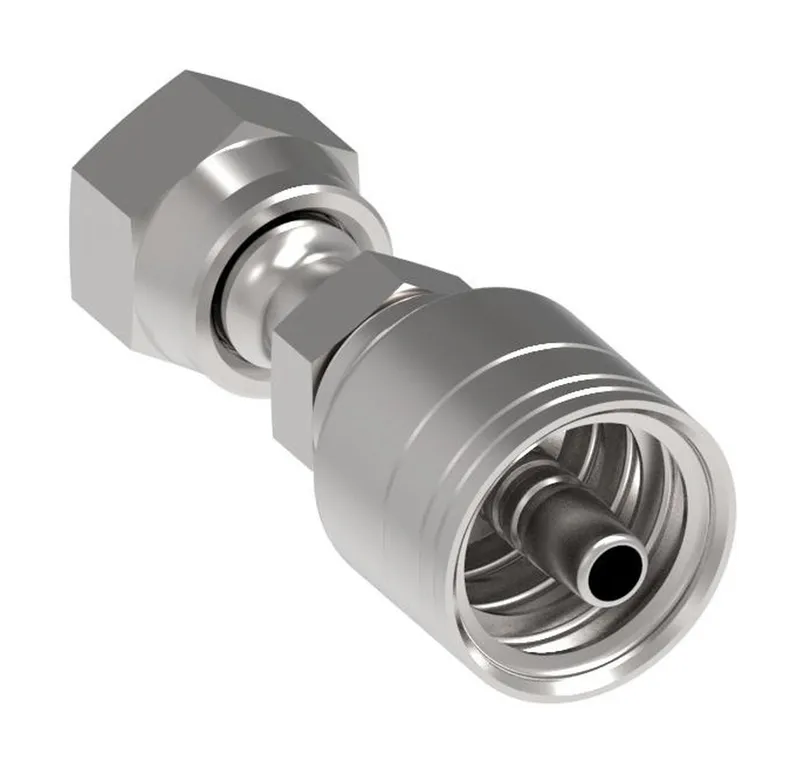

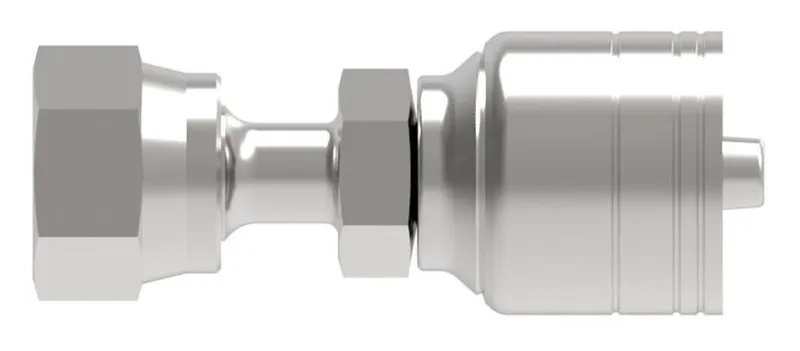

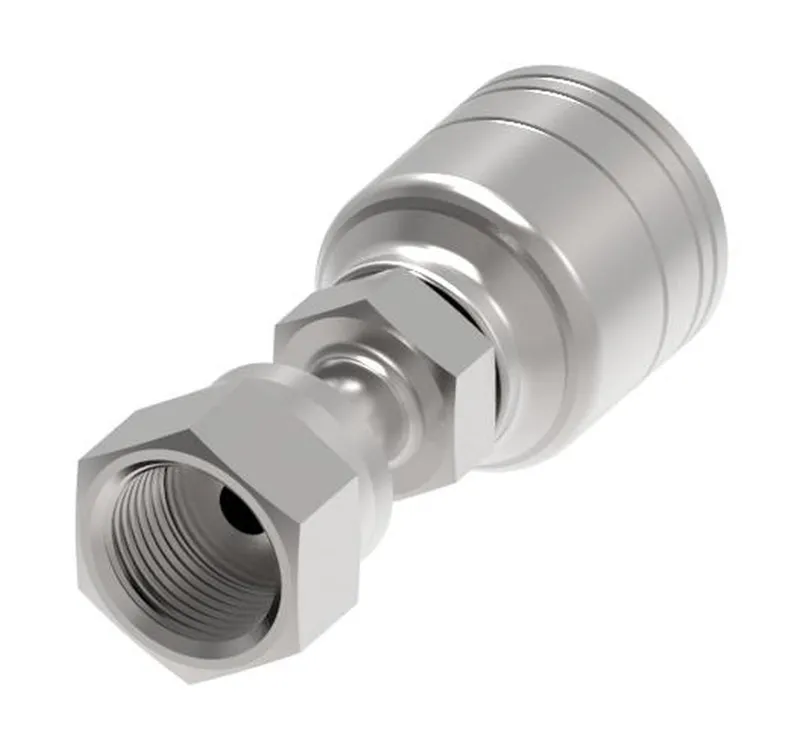

Danfoss 1BA6FR8

HOSE NIPPLE ASSY,4S/08,ORS-F/06,CS,STR

MPN: 1BA6FR8
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA6FR8?

Danfoss HOSE NIPPLE ASSY,4S/08,ORS-F/06,CS,STR, manufacturer part number 1BA6FR8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131188
A dimension IN	2.410
A dimension MM	61.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC525, FC736, GH493, FC636
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.0
Hex size 2 IN	0.875
Hex size 2 MM	22.2
Hose cut off factor IN	1.340
Hose cut off factor MM	34.100
Hose size	-8
Inside diameter IN	0.2600
Inside diameter MM	6.7000
Product height in	0.875
Product height mm	22.225
Product length in	2.510
Product length mm	63.754
Product material	Carbon steel
Product width in	0.875
Product width mm	22.225 mm
Series	B Series
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40

1BA6FR8: frequently asked questions

When can 1BA6FR8 be shipped?

1BA6FR8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1BA6FR8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1BA6FR8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1BA6FR8, subject to availability and destination.
