Danfoss 1BA6FRA6

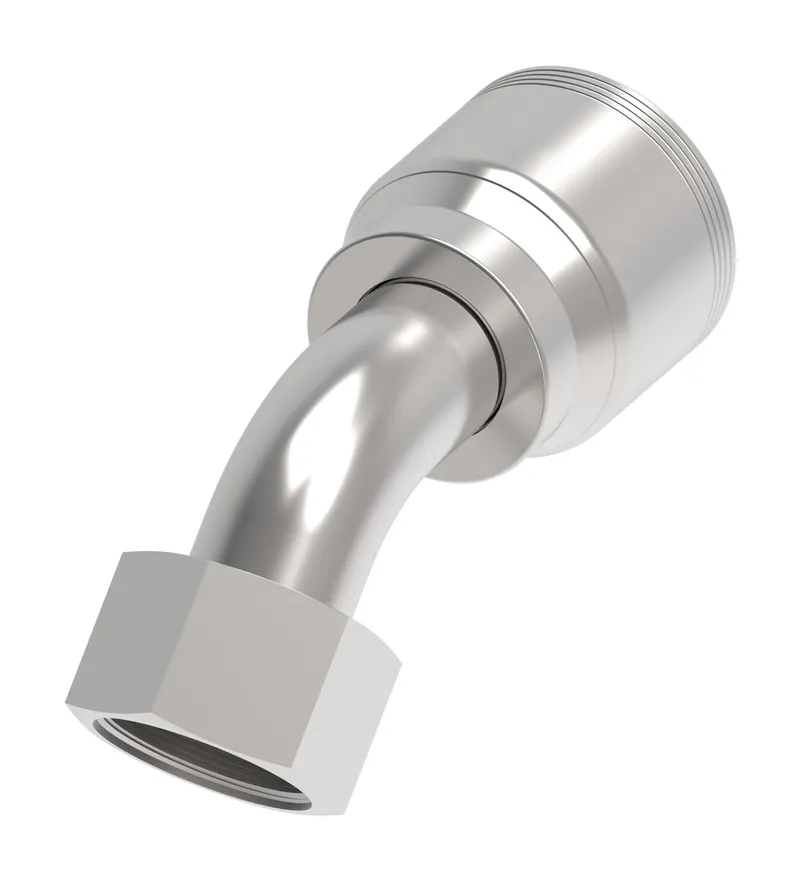

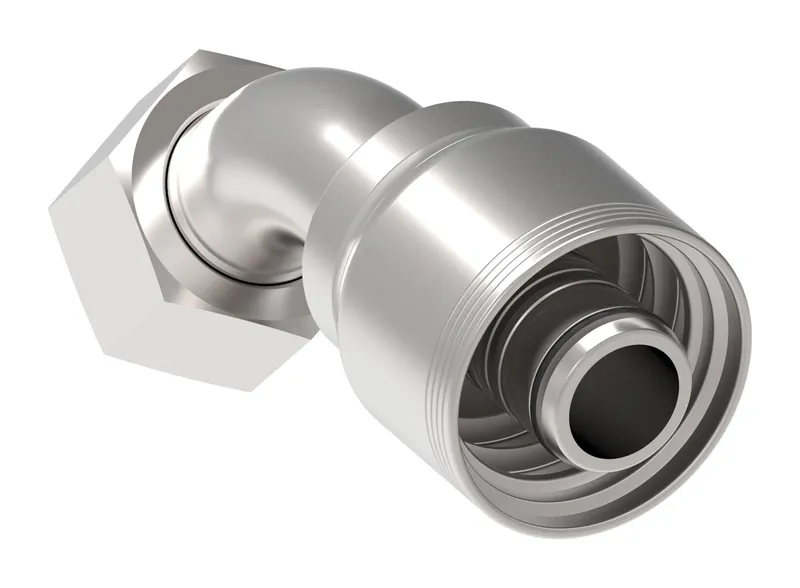

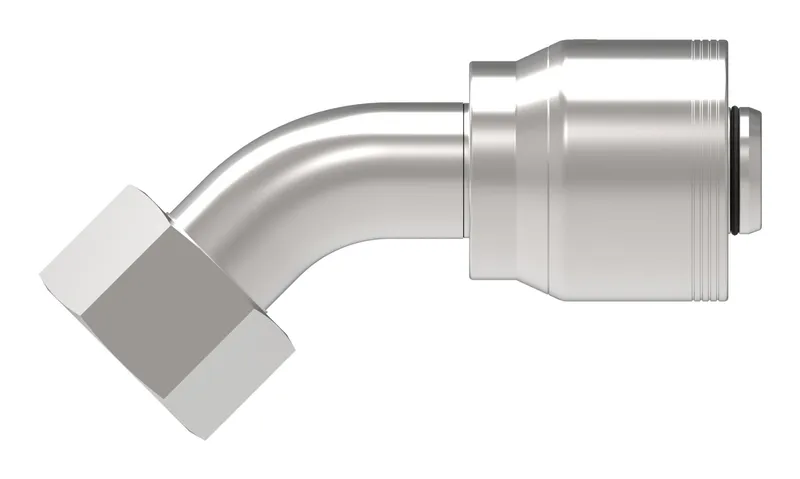

HOSE NIPPLE ASSY,4S/06,ORS-F/06,CS,45D

MPN: 1BA6FRA6
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA6FRA6?

Danfoss HOSE NIPPLE ASSY,4S/06,ORS-F/06,CS,45D, manufacturer part number 1BA6FRA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131195
A dimension IN	2.360
A dimension MM	59.900
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Construction Style	Crimp
Drop dimension IN	0.370
Drop dimension MM	9.50
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.638
Hose cut off factor IN	1.430
Hose cut off factor MM	36.300
Hose size	-6
Inside diameter IN	0.240
Inside diameter MM	6.200
Product height in	0.430
Product height mm	10.922
Product length in	2.430
Product length mm	61.722
Product material	Carbon steel
Product width in	1.158
Product width mm	29.413 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	121
Working temperature min C	-40
Working temperature min F	-40

1BA6FRA6: frequently asked questions

When can 1BA6FRA6 be shipped?

1BA6FRA6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1BA6FRA6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1BA6FRA6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1BA6FRA6, subject to availability and destination.
