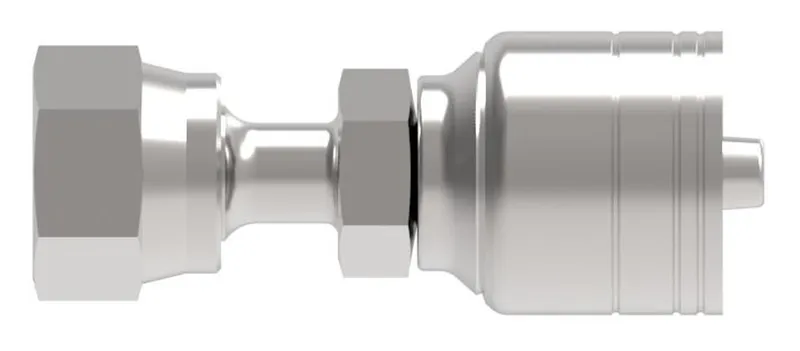

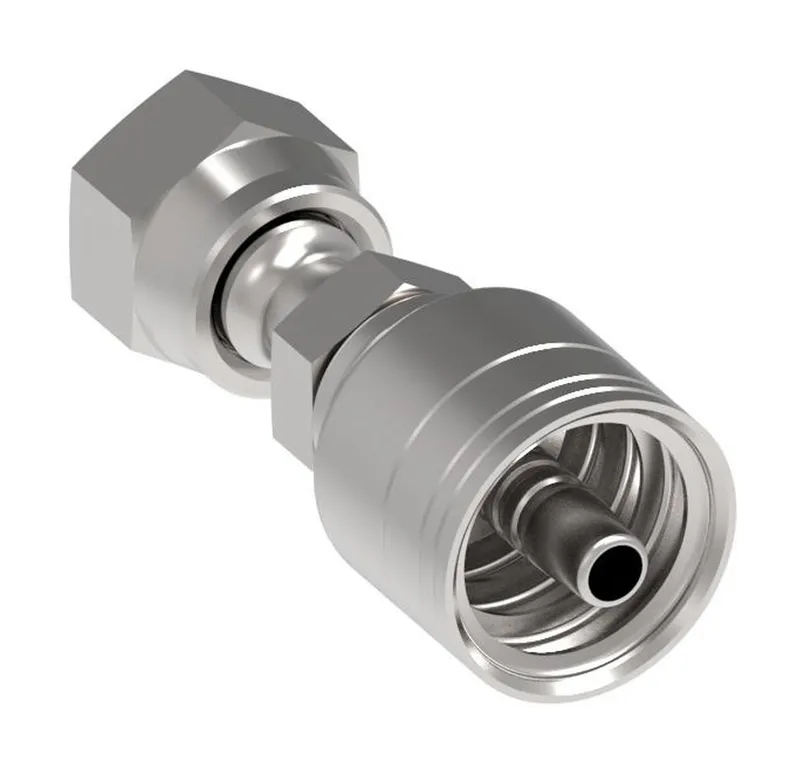

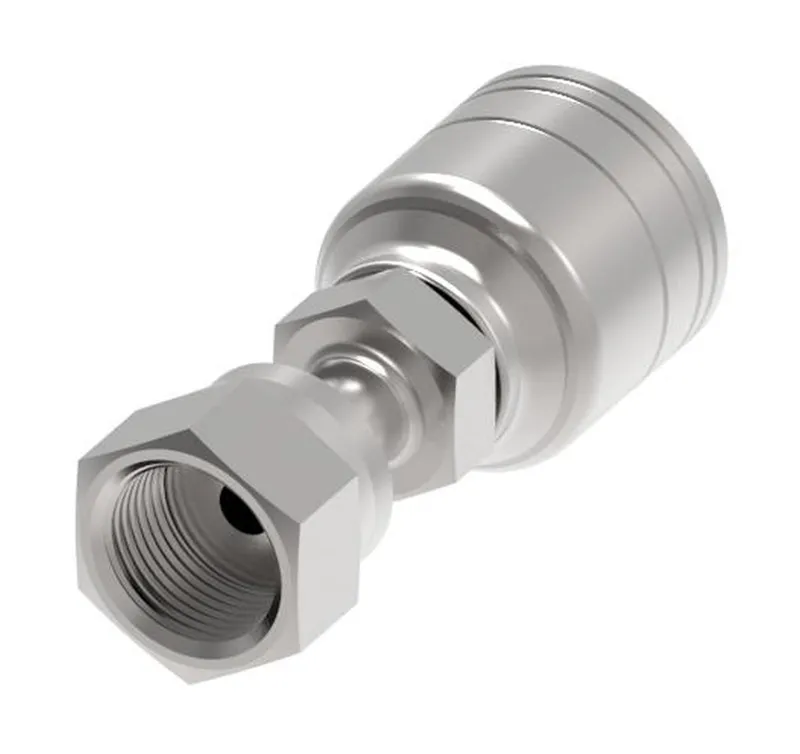

Danfoss 1BA6FR6

HOSE NIPPLE ASSY,4S/06,ORS-F/06,CS,STR

MPN: 1BA6FR6
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA6FR6?

Danfoss HOSE NIPPLE ASSY,4S/06,ORS-F/06,CS,STR, manufacturer part number 1BA6FR6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131171
A dimension IN	2.070
A dimension MM	52.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC525, FC736, GH493, FC636
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-27 Nm)
End size 1	-6
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.813
Hex size 1 MM	20.6
Hex size 2 IN	0.688
Hex size 2 MM	17.0
Hose cut off factor IN	1.240
Hose cut off factor MM	31.400
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.7000
Product height in	1.187
Product height mm	30.162
Product length in	2.070
Product length mm	52.578
Product material	Carbon steel
Product width in	1.187
Product width mm	30.162 mm
Series	B Series
Thread sealant	No
Thread size 1	11/16-16 UN
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
