Danfoss 1AA4FRA6

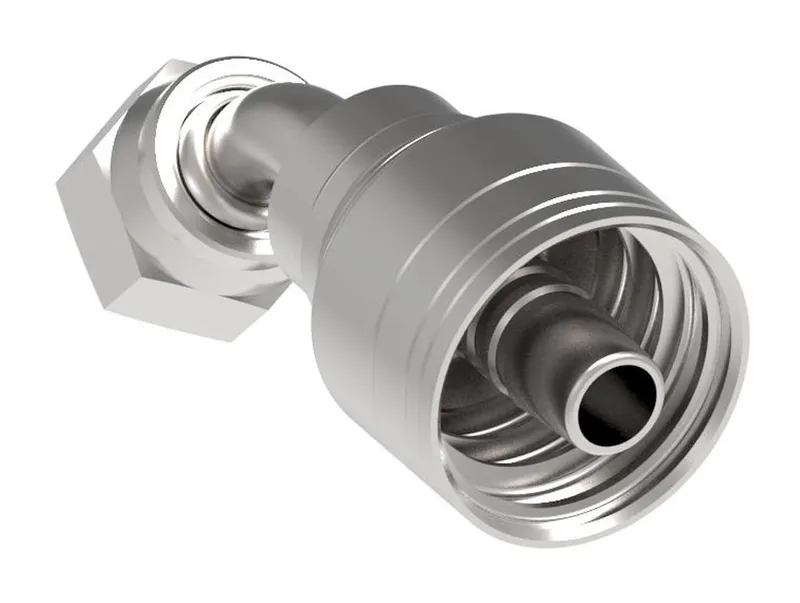

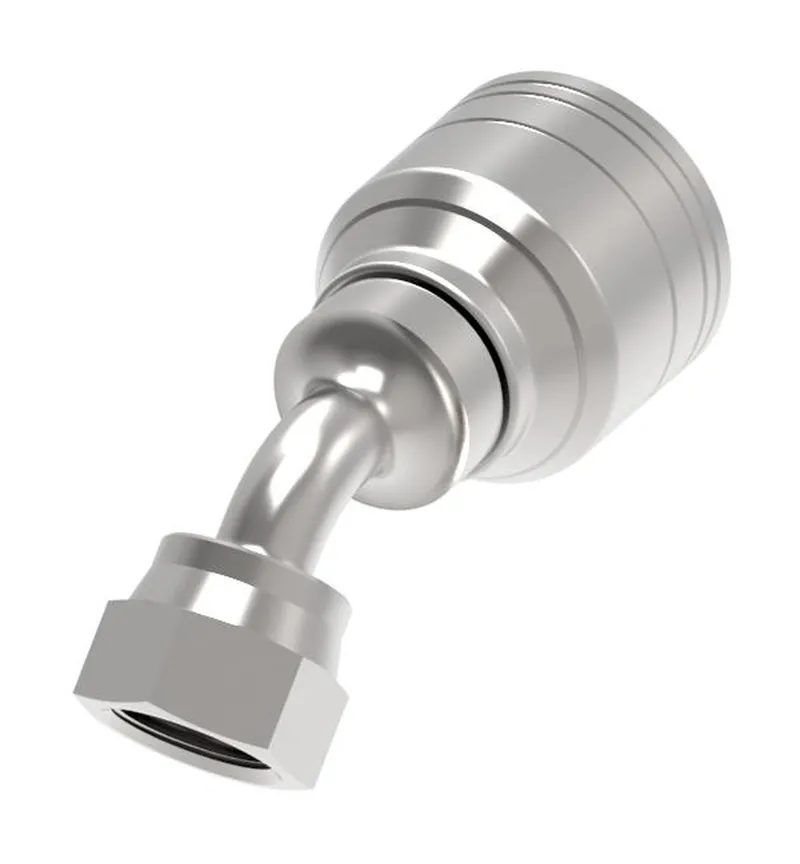

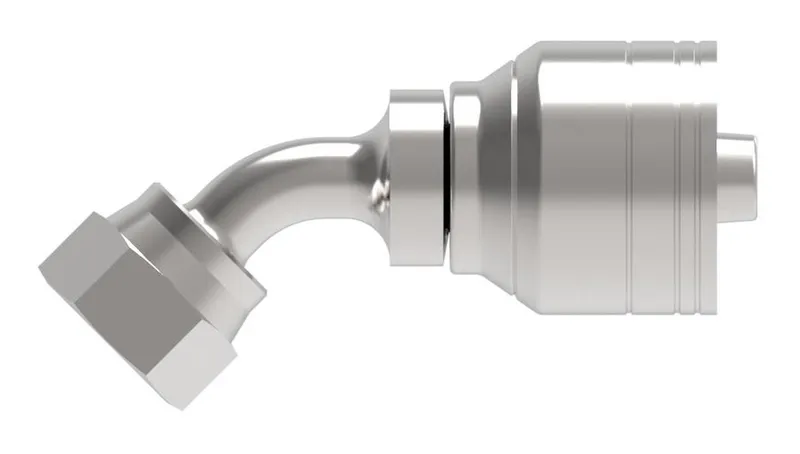

HOSE FTG, 1A/06, ORS-F/04, CS, 45D

MPN: 1AA4FRA6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FRA6?

Danfoss HOSE FTG, 1A/06, ORS-F/04, CS, 45D, manufacturer part number 1AA4FRA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126566
A dimension IN	2.140
A dimension MM	54.400
Angle shape	45 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	0.410
Drop dimension MM	10.40
End connection torque	10-12 lb-ft(14-16 Nm)
End size 1	-4
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.300
Hose cut off factor MM	33.100
Hose size	-6
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.410
Product height mm	10.414
Product length in	2.300
Product length mm	58.420
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	9/16-18 UNF
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
