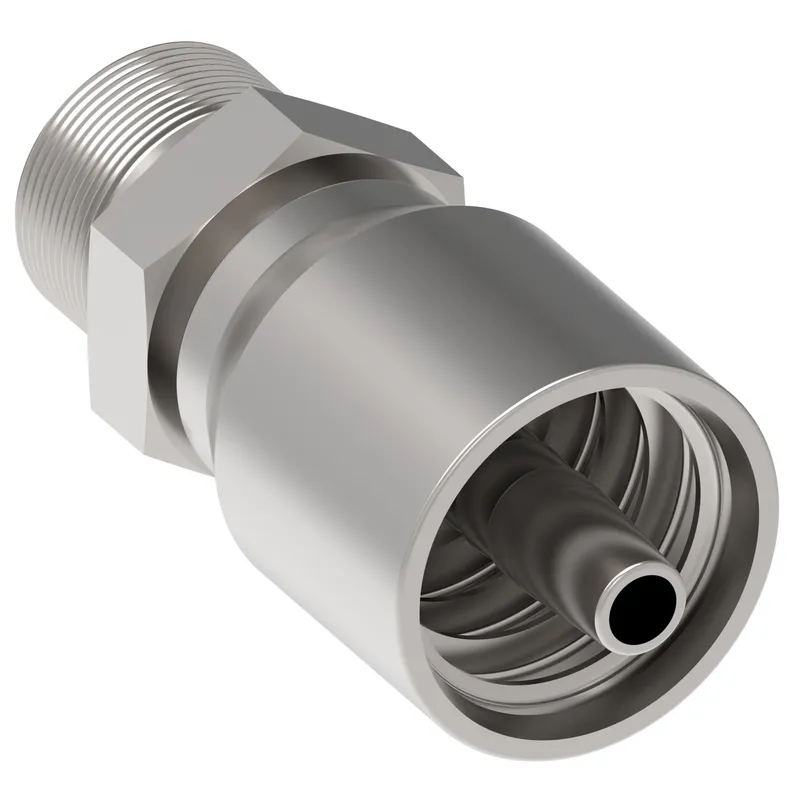

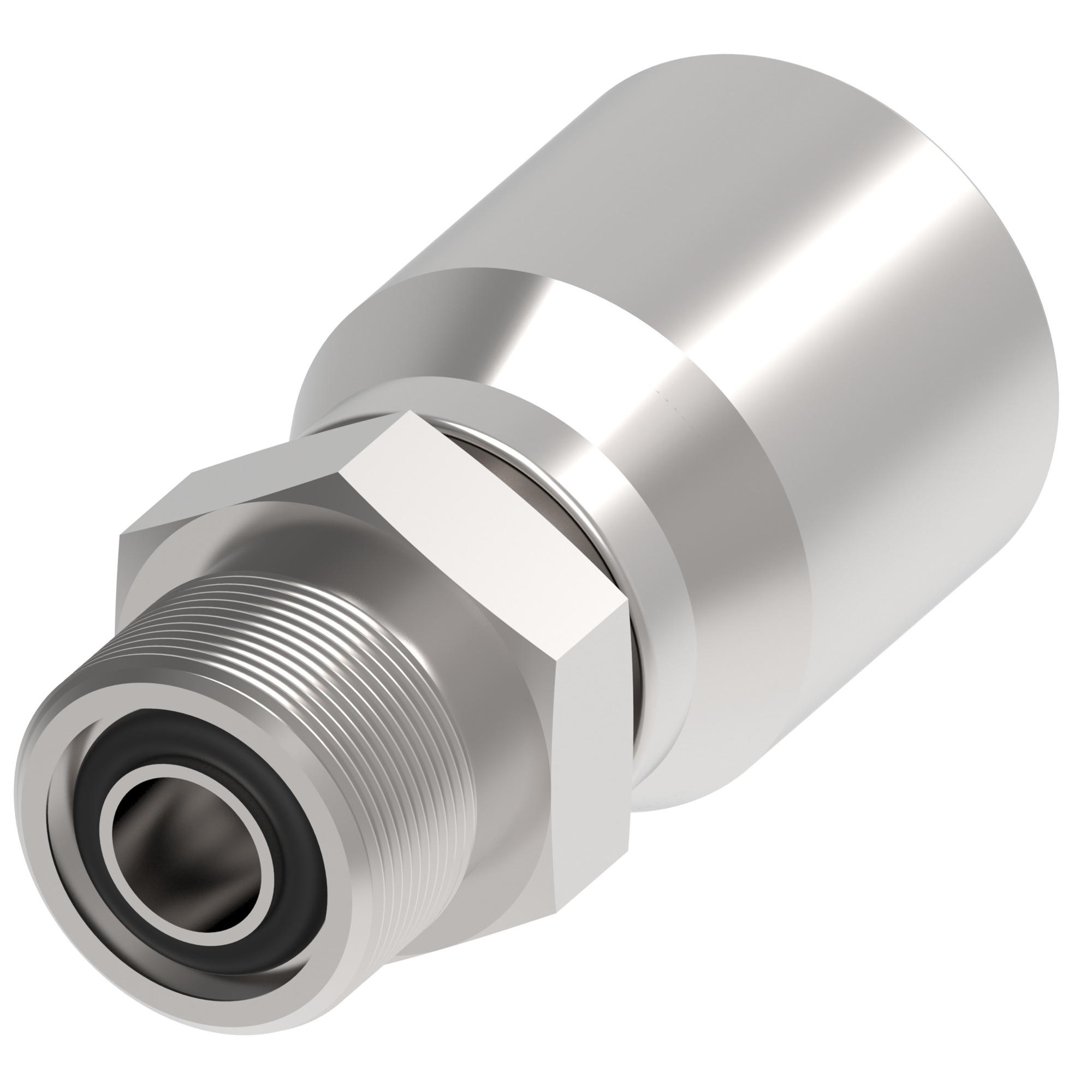

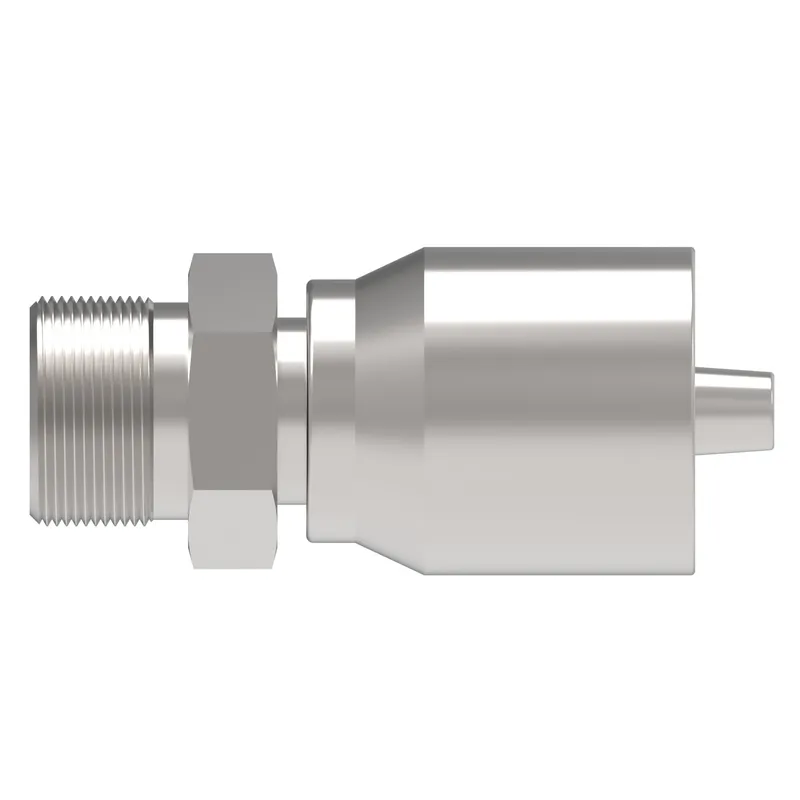

Danfoss 14211Y-10-10Z

HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR

MPN
14211Y-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211Y-10-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR, manufacturer part number 14211Y-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.650
A dimension MM67.500
Angle shapeStraight
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
End connection torque46-50 lb-ft(62-68 Nm)
End size 1-10
End Type 1Male ORFS
Finish platingZinc plating
Hex size 1 IN0.000
Hex size 2 MM27.000
Hose cut off factor IN1.310
Hose cut off factor MM33.500
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in1.401
Product height mm35.600
Product length in2.657
Product length mm67.500
Product materialCarbon steel
Product width in1.401
Product width mm35.6
SeriesWinner 2-Piece
Thread size 11-14 UNS
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

14211Y-10-10Z: frequently asked questions

When can 14211Y-10-10Z be shipped?

14211Y-10-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 14211Y-10-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 14211Y-10-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 14211Y-10-10Z, subject to availability and destination.
