Danfoss 14211-16-12ZF

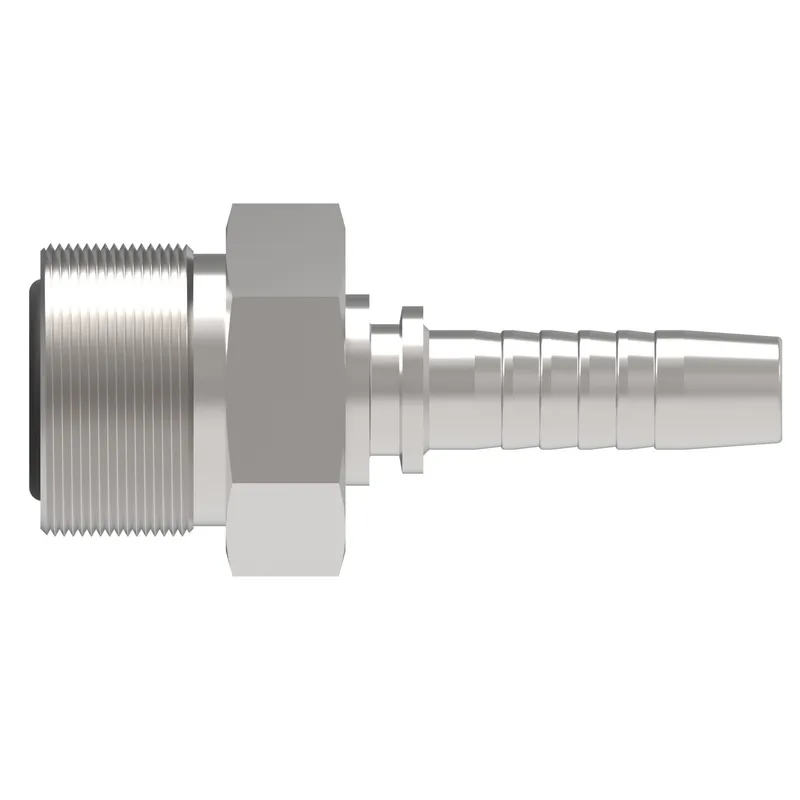

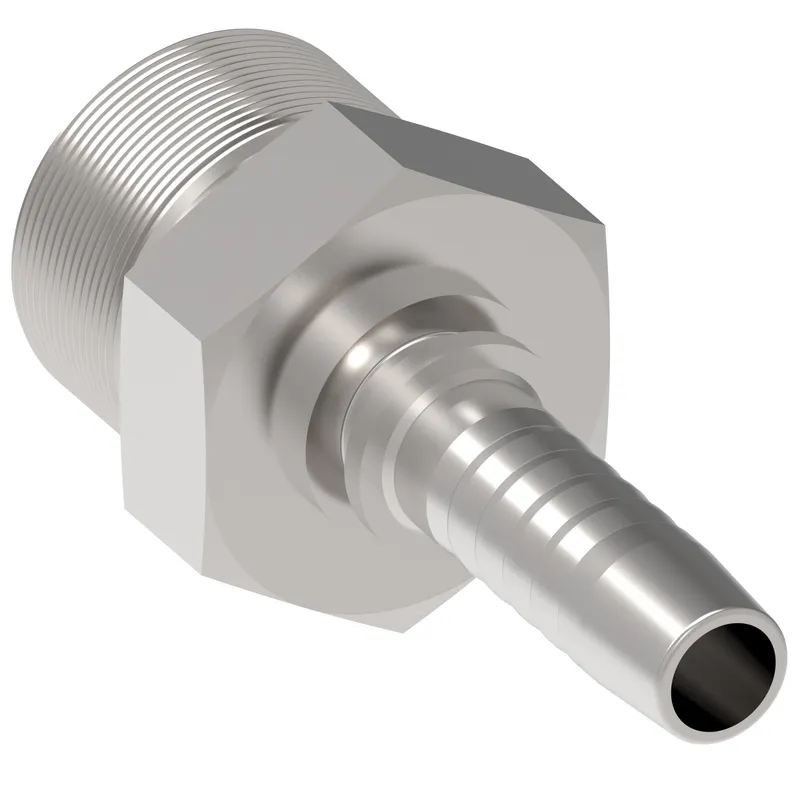

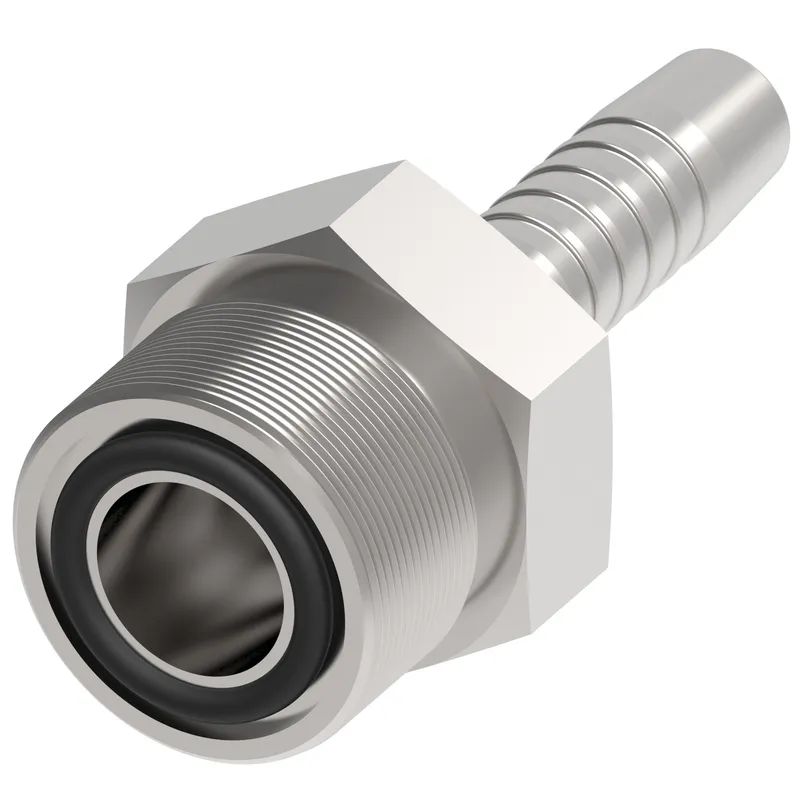

HOSE NIPPLE ASSY,2P/12,ORS-M/16,CS,STR

MPN: 14211-16-12ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211-16-12ZF?

Danfoss HOSE NIPPLE ASSY,2P/12,ORS-M/16,CS,STR, manufacturer part number 14211-16-12ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146191564
A dimension IN	2.970
A dimension MM	75.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	EC110, EC115, EC210, EC215
Construction Style	Crimp
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End size 2	-12
End Type 1	Male ORFS
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.496
Hex size 1 MM	38.000
Hex size 2 IN	1.496
Hex size 2 MM	38.000
Hose cut off factor IN	1.460
Hose cut off factor MM	37.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	14.900
Product height in	1.727
Product height mm	43.870
Product length in	2.972
Product length mm	75.500
Product material	Carbon steel
Product width in	1.496
Product width mm	38
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	1 7/16-12 UN
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
