Danfoss 14212-10-10Z

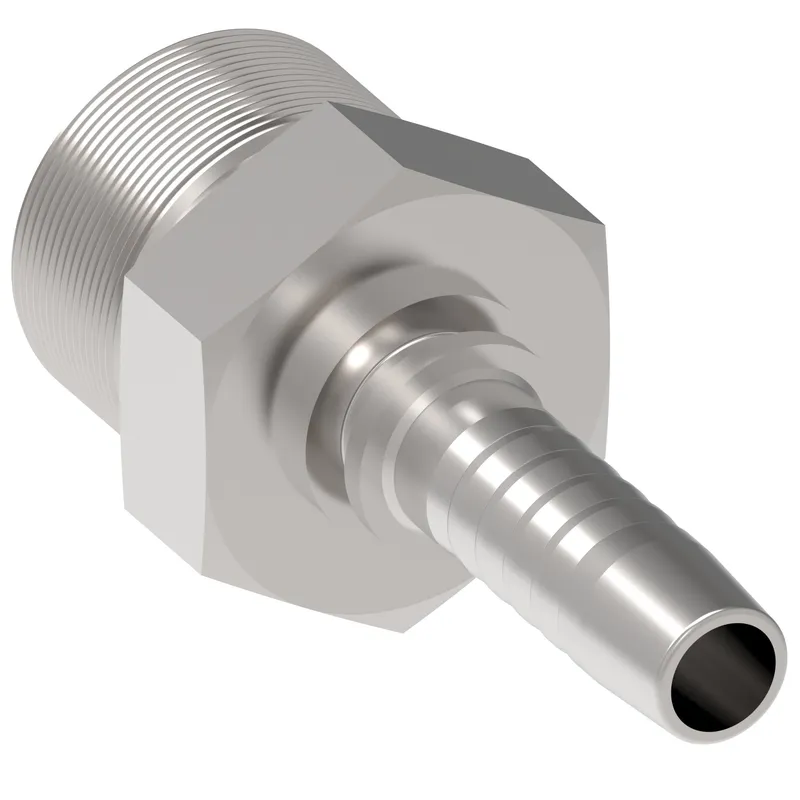

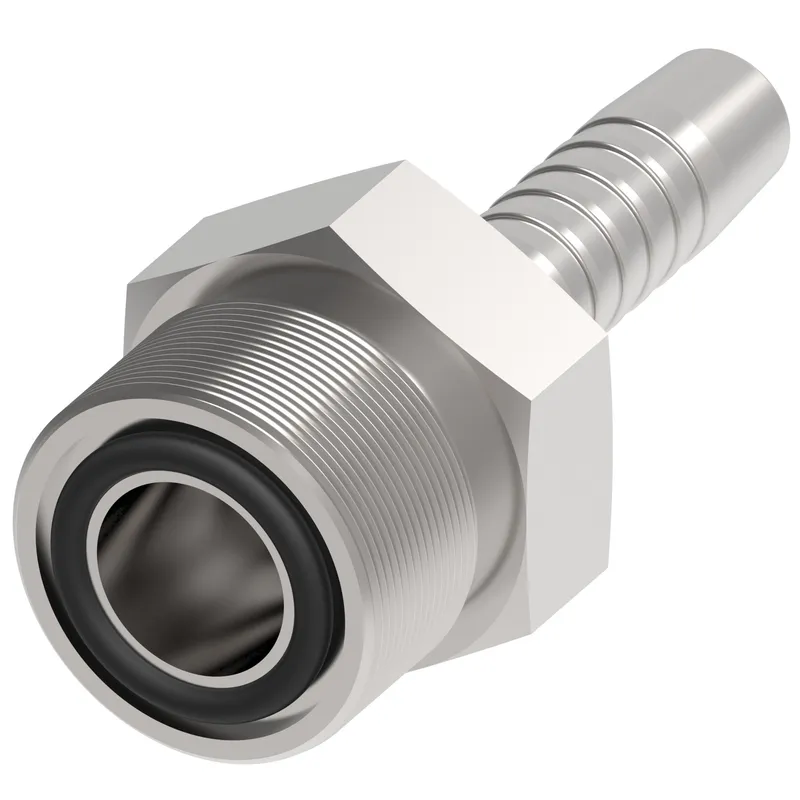

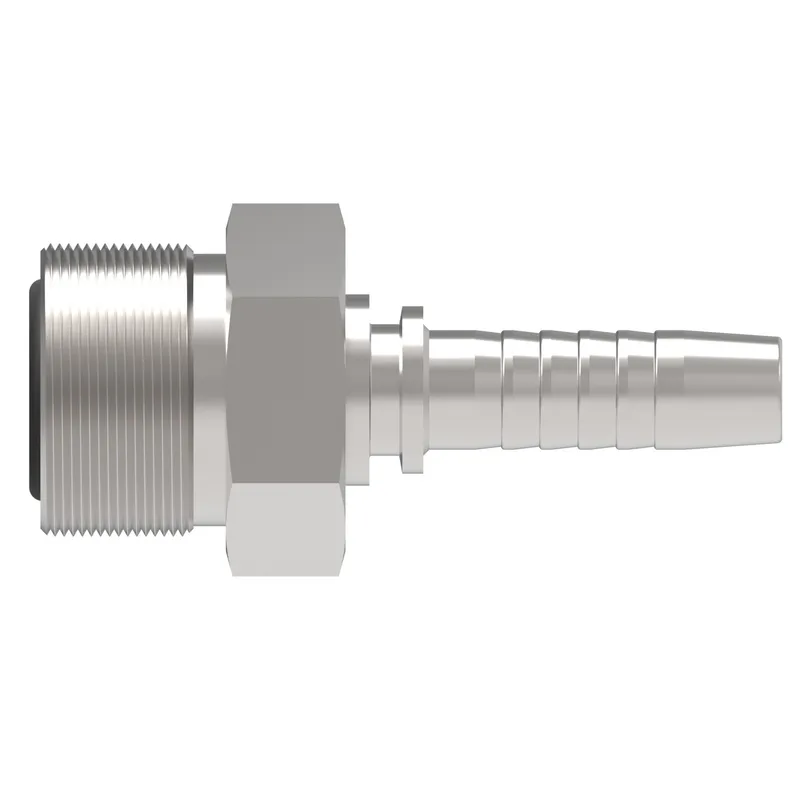

HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR

MPN
14212-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14212-10-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR, manufacturer part number 14212-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.930
A dimension MM74.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
End connection torque46-50 lb-ft(62-68 Nm)
End size 1-10
End type 1Male ORFS
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hex size 2 MM27.000
Hose cut off factor IN1.350
Hose cut off factor MM34.500
Hose size-10
Inside diameter IN0.4720
Inside diameter MM12.0000
Product height in1.220
Product height mm30.988
Product length in2.930
Product length mm74.422
Product materialCarbon steel
Product width in1.060
Product width mm26.924 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR621
Working pressure max PSI9100

14212-10-10Z: frequently asked questions

When can 14212-10-10Z be shipped?

14212-10-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 14212-10-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 14212-10-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 14212-10-10Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 14211Y-06-04Z – HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR
Danfoss
14211Y-06-04Z

HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR

Danfoss 14211Y-10-10Z – HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR
Danfoss
14211Y-10-10Z

HOSE NIPPLE ASSY,2P/10,ORS-M/10,CS,STR

Danfoss 14211Y-12-12Z – HOSE NIPPLE ASSY,2P/12,ORS-M/12,CS,STR
Danfoss
14211Y-12-12Z

HOSE NIPPLE ASSY,2P/12,ORS-M/12,CS,STR

Danfoss 14212-08-08Z – HOSE NIPPLE ASSY,2P/08,ORS-M/08,CS,STR
Danfoss
14212-08-08Z

HOSE NIPPLE ASSY,2P/08,ORS-M/08,CS,STR

Danfoss 14212-12-10Z – HOSE NIPPLE ASSY,2P/10,ORS-M/12,CS,STR
Danfoss
14212-12-10Z

HOSE NIPPLE ASSY,2P/10,ORS-M/12,CS,STR

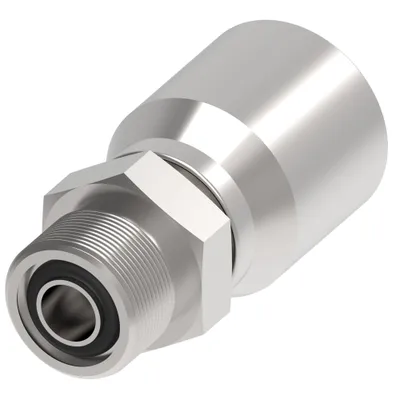

Danfoss 14212-12-12Z – HOSE NIPPLE ASSY,2P/12,ORS-M/12,CS,STR
