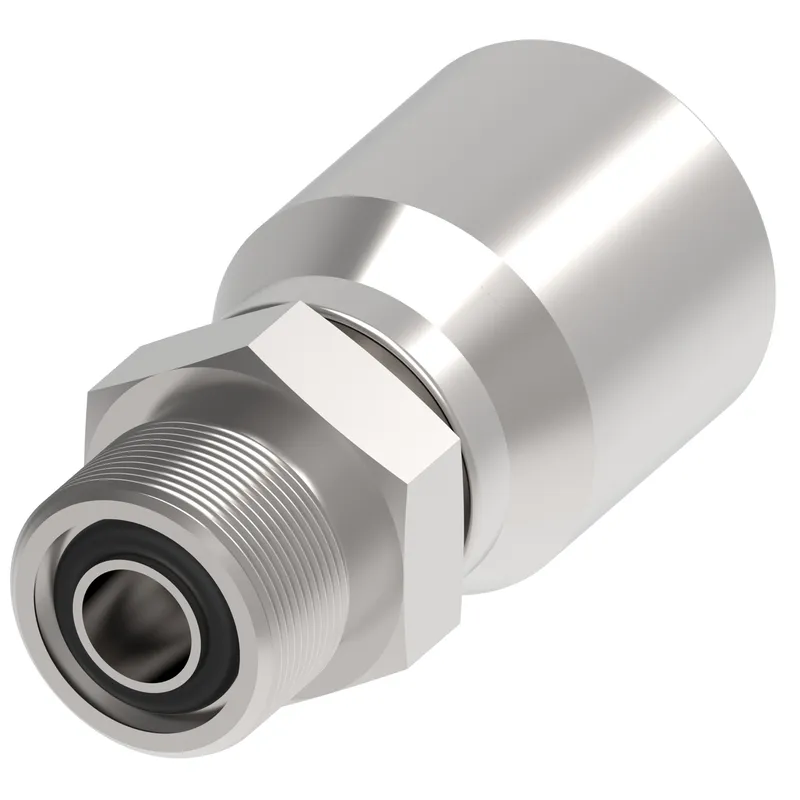

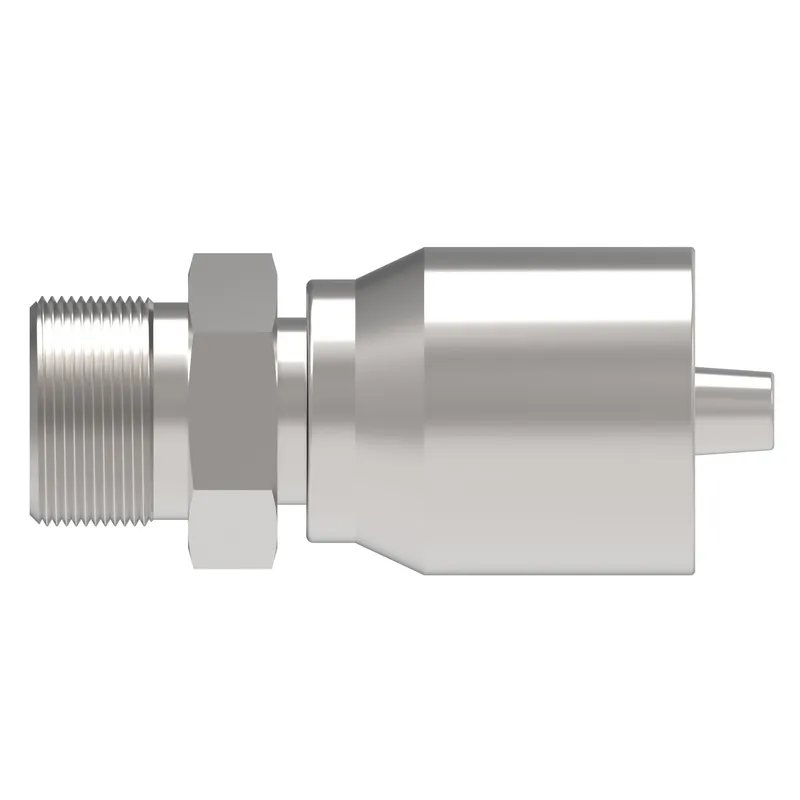

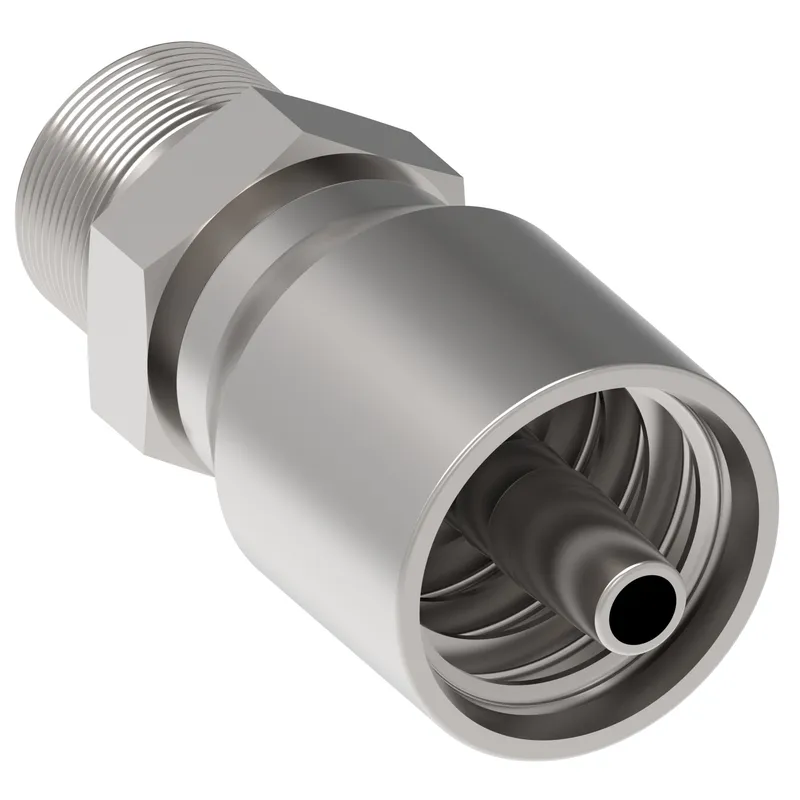

Danfoss 14211Y-06-04Z

HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR

MPN
14211Y-06-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211Y-06-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-M/06,CS,STR, manufacturer part number 14211Y-06-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.040
A dimension MM52.000
Angle shapeStraight
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection torque18-20 lb-ft(24-27 Nm)
End size 1-6
End Type 1Male ORFS
Finish platingZinc plating
Hex size 2 MM19.000
Hose cut off factor IN0.940
Hose cut off factor MM24.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.897
Product height mm22.800
Product length in2.047
Product length mm52.000
Product materialCarbon steel
Product width in0.897
Product width mm22.8
SeriesWinner 2-Piece
Thread size 111/16-16 UN
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
