B&R XEPIMA200

Accessories, 1x 4-pin screw clamp terminal block (3.5)

MPN: XEPIMA200
Category: Other

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R XEPIMA200?

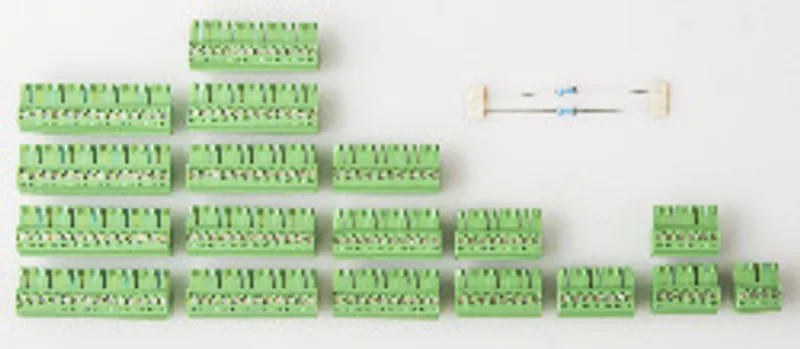

SMARTMOLD I/O connector set (119 I/Os) screw clamp terminal blocks

Specifications

Short description

Accessories

1x 4-pin screw clamp terminal block (3.5), 0TB1104.9000; 2x 6-pin screw clamp terminal block (3.5), 0TB1106.9000; 1x 7-pin screw clamp terminal block (3.5), 0TB1107.9000; 2x 8-pin screw clamp terminal block (3.5), 0TB1108.9000; 3x 10-pin screw clamp terminal block (3.5), 0TB1110.9000; 5x 12-pin screw clamp terminal block (3.5), 0TB1112.9000; 4x 14-pin screw clamp terminal block (3.5), 0TB1114.9000

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable

Terminal block

Connection cross section – AWG wire	28 to 16
Connection cross section – Wire end sleeves with plastic covering	0.25 to 0.5 mm²
Connection cross section – With wire end sleeve	0.25 to 1.5 mm²
Connection cross section – Flexible	0.14 to 1.5 mm²
Connection cross section – Inflexible	0.14 to 1.5 mm²
Type of terminal block	Screw clamp terminal block variant
Pitch	3.5 mm
Tightening torque	0.22 to 0.25 Nm

Electrical properties

Nominal voltage	160 V
Nominal current	8 A

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet XEPIMA200PDF · 56 KB · 1.10 (02/03/2023) - EN
