Home / B&R / Other / B&R XEPIMA100
B&R

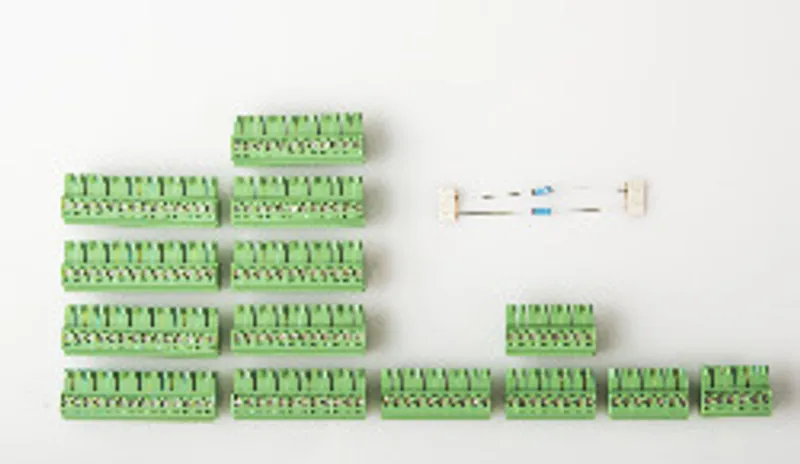

B&R XEPIMA100

Accessories, 1x 6-pin screw clamp terminal block (3.5)

MPN
XEPIMA100
Category
Other
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the B&R XEPIMA100?

SMARTMOLD I/O connector set (100 I/Os) screw clamp terminal blocks

Specifications

Short description

Accessories1x 6-pin screw clamp terminal block (3.5), 0TB1106.9000; 1x 7-pin screw clamp terminal block (3.5), 0TB1107.9000; 2x 8-pin screw clamp terminal block (3.5), 0TB1108.9000; 1x 10-pin screw clamp terminal block (3.5), 0TB1110.9000; 5x 12-pin screw clamp terminal block (3.5), 0TB1112.9000; 4x 14-pin screw clamp terminal block (3.5), 0TB1114.9000

General information

Certifications – CEYes
Certifications – CRA (Cyber Resilience Act)Not applicable

Terminal block

Connection cross section – AWG wire28 to 16
Connection cross section – Wire end sleeves with plastic covering0.25 to 0.5 mm²
Connection cross section – With wire end sleeve0.25 to 1.5 mm²
Connection cross section – Flexible0.14 to 1.5 mm²
Connection cross section – Inflexible0.14 to 1.5 mm²
Type of terminal blockScrew clamp terminal block variant
Pitch3.5 mm
Tightening torque0.22 to 0.25 Nm

Electrical properties

Nominal voltage160 V
Nominal current8 A

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

XEPIMA100: frequently asked questions

When can XEPIMA100 be shipped?

XEPIMA100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XEPIMA100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XEPIMA100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XEPIMA100, subject to availability and destination.
