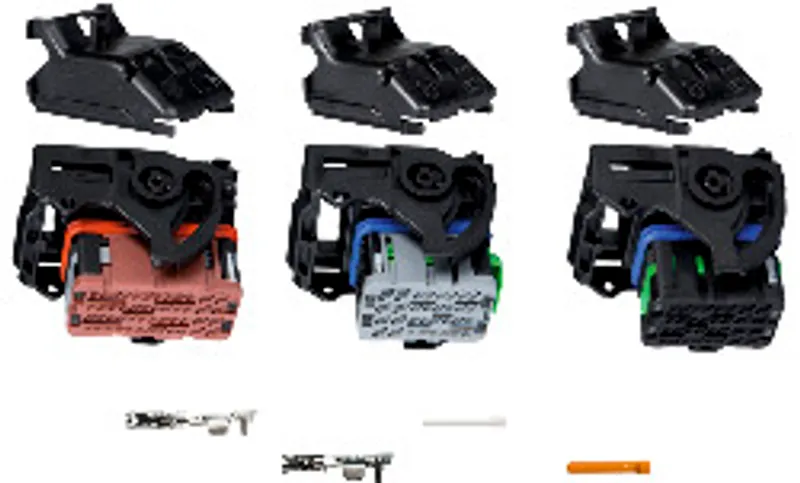

B&R X90TB100.03-00
Accessories, set consists of: 1x mating connector X1.A
- MPN
- X90TB100.03-00
- Category
- CMC connector
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X90TB100.03-00?
X90 mobile 170, connector set for CMC header, with connector contacts and dummy plugs
Specifications
General Information
| Accessories | Set consists of: 1x mating connector X1.A, 1x mating connector X1.B, 1x mating con- nector X1.C, 2x cover for 32-pin mating connector, 1x wire cap for 48-pin mating con- nector, 30x female connector for 1.5 mm contacts, 120x female connector for 0.6 mm contacts, 60x blind plug for 0.6 mm contacts, 20x blind plug for 1.5 mm contacts |
General information
| Certifications – CE | Yes |
Mechanical properties
| Weight | 200 g |
| Manufacturer | Molex |
| Manufacturer's product ID | Mating connector X1.A: 64320-1319 Mating connector X1.B: 64319-3218 Mating connector X1.C: 64319-1211 Wire cap for 32-pin mating connector: 64319-1201 Wire cap for 48-pin mating connector: 64320-1301 Female connector for 1.5 mm connections: 0643221039 Female connector for 0.6 mm connections: 0643231039 Blind plug for 0.6 mm connections: 0643251010 Blind plug for 1.5 mm connections: 0643251023 |
| Manufacturer | Molex |
| Manufacturer's model number | 64319-3218 64320-1319 64319-1211 |
| Connections | 24x 0.6 mm / 8x 1.5 mm 40x 0.6 mm / 8x 1.5 mm 24x 0.6 mm / 8x 1.5 mm |
| Color | Gray Brown Black |
| Manufacturer | Molex |
| Manufacturer's model number | 64319-1201 64320-1301 X90TB100.03-00 |
| Manufacturer | Molex |
| Manufacturer's model number | 0643251010 0643251023 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
X90TB100.03-00: frequently asked questions
When can X90TB100.03-00 be shipped?
X90TB100.03-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X90TB100.03-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X90TB100.03-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X90TB100.03-00, subject to availability and destination.
