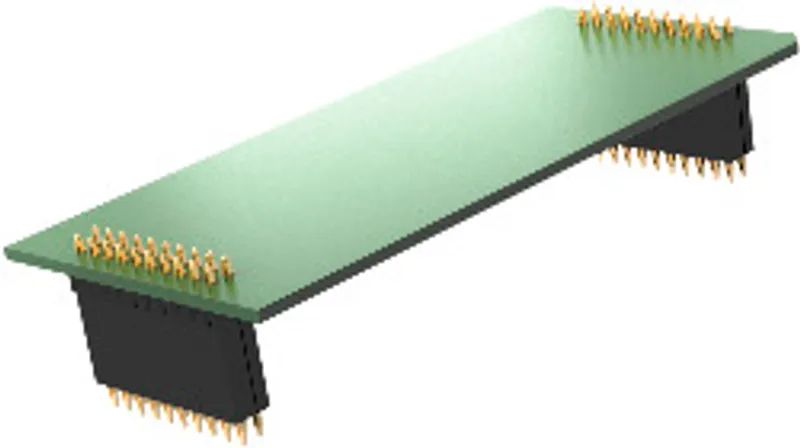

B&R X90IF730.04-00
Communication module, 3x CAN bus, 1x RS485
- MPN
- X90IF730.04-00
- Category
- Communication modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X90IF730.04-00?
3 CAN bus interfaces
Serial interface
In addition to the existing interfaces on the mainboard, option boards for communication are available for connecting remote actuators and sensors.
Specifications
Short description
| Communication module | 3x CAN bus, 1x RS485 |
General information
| Certifications – UN ECE-R10 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| B&R ID code | 0xEF80 |
| Status indicators | - |
| Power consumption | 1.71 W |
Interfaces
| Interface IF1 – Connection designation | CAN1 |
| Interface IF1 – Signal | CAN bus |
| Interface IF1 – Max. distance | 1000 m |
| Interface IF1 – Transfer rate | Max. 1 Mbit/s |
| Interface IF1 – Terminating resistor | External 120 Ω must be provided. |
| Interface IF2 – Connection designation | CAN2 |
| Interface IF2 – Signal | CAN bus |
| Interface IF2 – Max. distance | 1000 m |
| Interface IF2 – Transfer rate | Max. 1 Mbit/s |
| Interface IF2 – Terminating resistor | External 120 Ω must be provided. |
| Interface IF3 – Connection designation | CAN3 |
| Interface IF3 – Signal | CAN bus |
| Interface IF3 – Max. distance | 1000 m |
| Interface IF3 – Transfer rate | Max. 1 Mbit/s |
| Interface IF3 – Terminating resistor | External 120 Ω must be provided. |
| Interface IF4 – Connection designation | RS485 |
| Interface IF4 – Signal | RS485 |
| Interface IF4 – Max. distance | 1200 m |
| Interface IF4 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF4 – FIFO buffer | 1 kB |
| Interface IF4 – Terminating resistor | Switchable in software |
Electrical properties
| Electrical isolation | No |
Operating conditions
| Mounting orientation – Any | Yes |
| Degree of protection per EN 60529 | Up to IP69K (note: Depends on the mainboard. For additional details, see the data sheet for the mainboard.) |
Ambient conditions
| Temperature – Horizontal mounting orientation | -40 to 85°C housing surface (note: Depends on the mainboard. For additional details, see the data sheet for the mainboard.) |
| Temperature – Vertical mounting orientation | -40 to 85°C housing surface (note: Depends on the mainboard. For additional details, see the data sheet for the mainboard.) |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 100%, condensing |
| Relative humidity – Storage | 5 to 100%, condensing |
| Relative humidity – Transport | 5 to 100%, condensing |
Mechanical properties
| Dimensions – Width | 47 mm |
| Dimensions – Length | 95 mm |
