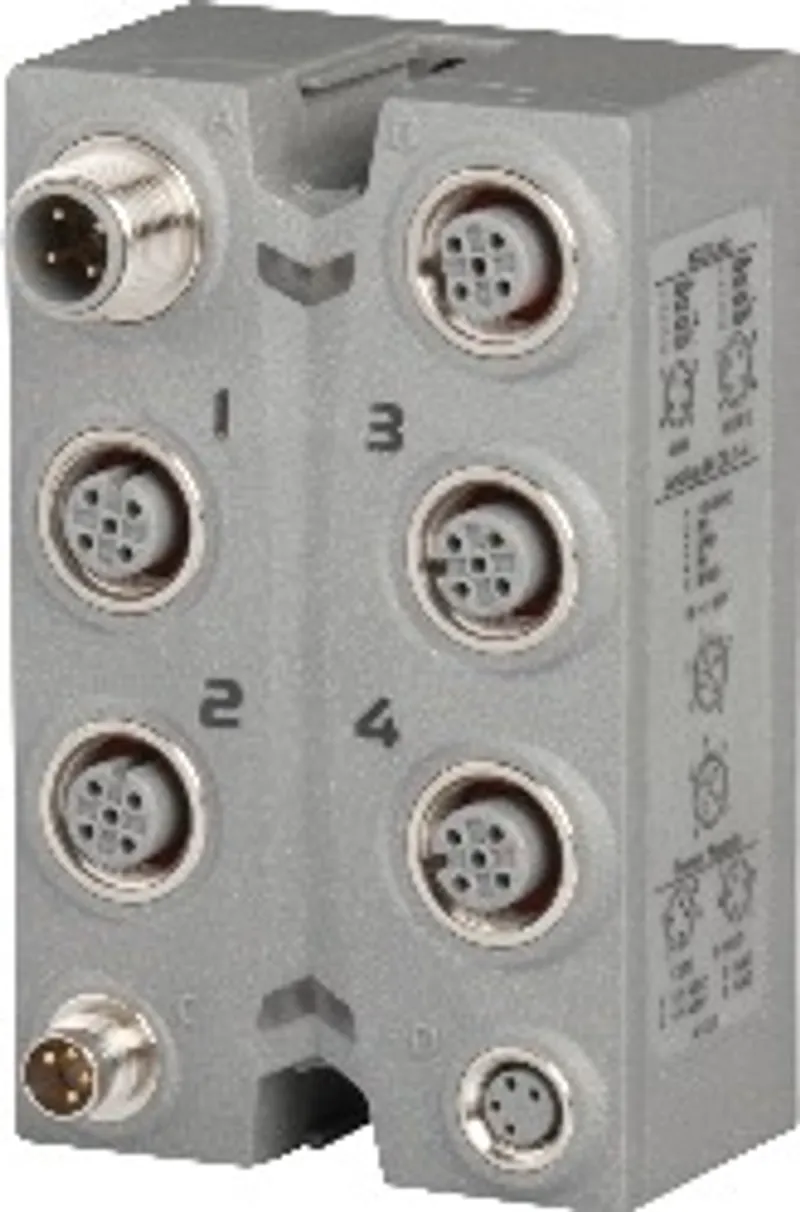

B&R X67UM1352
I/O module, 4 digital inputs, 2 digital outputs
- MPN
- X67UM1352
- Category
- Other functions
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X67UM1352?
1 strain gauge input with 24-bit resolution
High data output rate (10 to 3,750 Hz)
Adjustable gain
1 high-side output 24 VDC, 0.5 A
1 high-side output 24 VDC, 1.0 A
This module is used for the decentralized connection of a force sensor using strain gauge with a converter resolution up to 24 bits . The module is also equipped with 4 digital inputs and 2 digital outputs.
Specifications
Short description
| I/O module | 4 digital inputs, 2 digital outputs, 1 input for full-bridge strain gauge |
General information
| Diagnostics – Outputs | Yes, using LED status indicator |
| Diagnostics – I/O power supply | Yes, using LED status indicator and software |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Inputs/Outputs | 4x M12, A-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 1 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1CDF |
| Status indicators | I/O function per channel, supply voltage, bus function |
I/O power supply
| Power consumption – Sensor power supply | Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.) |
| Nominal voltage | 24 VDC ±25% |
| Integrated protective function | Reverse polarity protection |
Strain gauge supply
| Voltage | 4.422 VDC / max. 60 mA |
| Voltage drop for short-circuit protection at 60 mA | Max. 0.36 VDC |
| Short-circuit proof | Yes |
Sensor/Actuator power supply
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
Full-bridge strain gauge
| Input filter – Cutoff frequency | 50 kHz |
| Input filter – Order | 1 |
| Input filter – Slope | 20 dB |
| Output of digital value – Broken bridge supply line | Value approaching 0 |
| Output of digital value – Broken sensor line | Value approaching ±final value |
| Output of digital value – Valid range of values | 0x7FFF FFFF to 0x8000 0001 |
| Strain gauge supply – Voltage | 4.5 VDC / max. 60 mA |
| Strain gauge supply – Connection | 4-wire connections |
| Strain gauge supply – Short-circuit and overload-proof | Yes |
| Quantization – 69 mV/V | 9.31 µV |
| Quantization – 138 mV/V | 18.6 µV |
| Quantization – 276 mV/V | 37.3 µV |
| Quantization – 553 mV/V | 74.6 µV |
| Quantization – 69 mV/V | 36.4 nV |
| Quantization – 138 mV/V | 72.8 nV |
| Quantization – 276 mV/V | 146.0 nV |
| Quantization – 553 mV/V | 251.0 nV |
| Strain gauge factor | ±15.625 to ±125 mV/V, configurable using software |
| Input type | Differential, used to evaluate a full-bridge strain gauge |
| Digital converter resolution | 24-bit |
| Conversion time | Depends on the configured data output rate |
| Data output rate | 10 to 3750 samples per second, configurable using software |
| Operating range / Measurement sensor | 75 to 5000 Ω |
| Influence of cable length | Twisted and shielded conductors, cable length as short as possible, cable routing separate from load circuits, without intermediate terminal to sensor |
| Input protection | RC protection |
| Input current | 450 nA |
| Common-mode range | 0 to 3 VDC ; Permissible input voltage range (with regard to the electric potential strain gauge GND) on the inputs "Input +" and "Input -" |
| Insulation voltage between input and bus | 500 V eff |
| Gain | 1 to 8, configurable using software |
| Conversion procedure | Sigma-delta |
| Temperature coefficient | 50 ppm/°C |
Digital inputs
| Input filter – Hardware | <1 ms |
| Input filter – Software | - |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | 4 |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 24 VDC ±25% |
| Input current at 24 VDC | Typ. 5 mA |
| Input circuit | Sink |
| Input resistance | Typ. 4.27 kΩ |
| Sensor power supply | 0.5 A summation current |
| Insulation voltage between channel and bus | 500 V eff |
Digital outputs
| Nominal output current – Output 1 | 0.5 A |
| Nominal output current – Output 2 | 1 A |
| Switch-on time of output driver – Typical | 50 µs |
| Switch-on time of output driver – 0 → 1 (90% V Out ) | Max. 100 µs |
| Switch-on time of output driver – Typical | 60 µs |
| Switch-on time of output driver – 0 → 1 (90% V Out ) | Max. 160 µs |
| Switch-off time of output driver – Typical | 75 µs |
| Switch-off time of output driver – 1 → 0 (90% V Out ) | Max. 150 µs |
| Switch-off time of output driver – Typical | 15 µs |
| Switch-off time of output driver – 1 → 0 (90% V Out ) | Max. 50 µs |
| Braking voltage when switching off inductive loads – Output 1 | -47 VDC |
| Braking voltage when switching off inductive loads – Output 2 | Approx. 1 VDC |
| Max. frequency – Output 1 | 100 Hz |
| Max. frequency – Output 2 | 1 kHz |
| Quantity | 2 |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC ±25% |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Actuator power supply | External |
| Insulation voltage between output and bus | 500 V eff |
Electrical properties
| Electrical isolation | Channel isolated from bus and digital isolated from analog ; Digital not isolated from I/O power supply |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 200 g |
