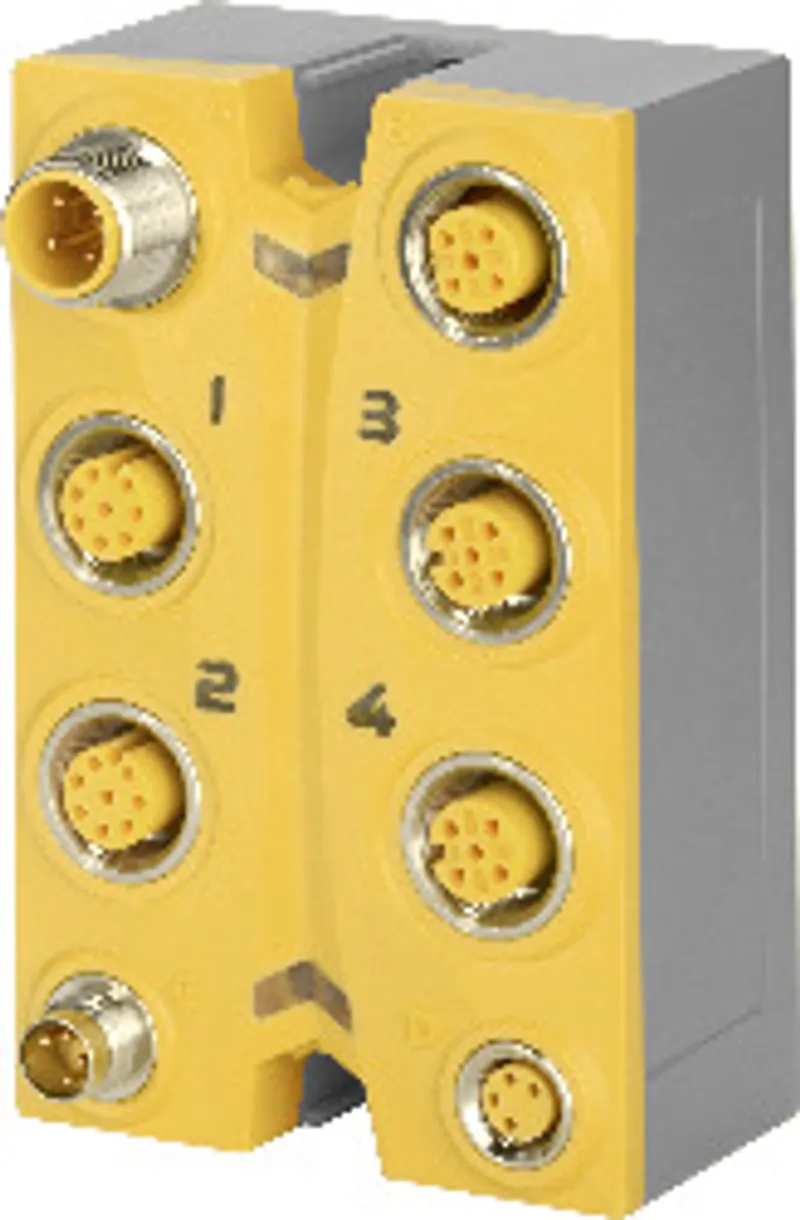

B&R X67SI8103

I/O module, 2x M12 interface each with 2 safe type A…

MPN: X67SI8103
Category: Digital input modules

€475.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67SI8103?

8 safe digital inputs, sink circuit

2 pulse outputs - available on all 4 female connectors

2 standard inputs, sink circuit

2 standard outputs, source circuit

Device supply

Software input filter configurable for each channel

Standardized 8-pin M12 device interface

This module is equipped with 8 safe digital inputs. They are designed for a nominal voltage of 24 VDC.

The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

Specifications

Short description

I/O module

2x M12 interface each with 2 safe type A digital inputs and 2 pulse outputs, 24 VDC, 2x standardized 8-pin M12 device interface each with 1 digital input without safety function and 2 safe type A digital inputs and 2 pulse outputs, 24 VDC and 1 digital output without safety function, 24 VDC, 0.6 A and 1 device power supply, 24 VDC, 2 A

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – I/O function	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Connection type – X2X Link	M12, B-coded
Connection type – Inputs/Outputs	M12 8-pin or M12 5-pin, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Bus	0.9 W
Power consumption – Internal I/O	2.1 W
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Digital outputs	0.216 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Pulse outputs	0.192 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xBB7C
Status indicators	I/O function per channel, operating state, module status

Safety characteristics

Note	See section "Safety characteristics".

24 VDC output

Output voltage	24 VDC -15% / +20%
Output current	2 A

I/O power supply

Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Digital inputs

Input filter – Hardware	≤150 μs
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	2
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 7.24 mA (note: The input current specifications refer to the switched-on state of the input.)
Input circuit	Sink
Input resistance	Min. 3.3 kΩ
Insulation voltage between channel and bus	500 V eff

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	8
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 8.28 mA (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 2.9 kΩ
Error detection time	200 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Digital outputs

Quantity	2
Variant	FET, positive switching, output level readable
Nominal voltage	24 VDC
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Max. switching frequency	See section "Inrush current behavior for output channels".
Nominal output current	0.6 A
Total nominal current	1.2 A
Output protection	See section "Inrush current behavior for output channels".
Leakage current when the output is switched off	<500 μA
R DS(on)	300 mΩ
Peak short-circuit current	See section "Inrush current behavior for output channels".
Braking voltage when switching off inductive loads	50 VDC
Insulation voltage between channel and bus	500 V eff
Max. capacitive load	100 nF
Peak output current	1 A

Pulse outputs

Quantity	8
Variant	Push-Pull
Nominal output current	40 mA
Output protection	Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	80 mA

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-40 to 60°C (note: Up to hardware revision <G0: -25 to 60°C)
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	190 g
