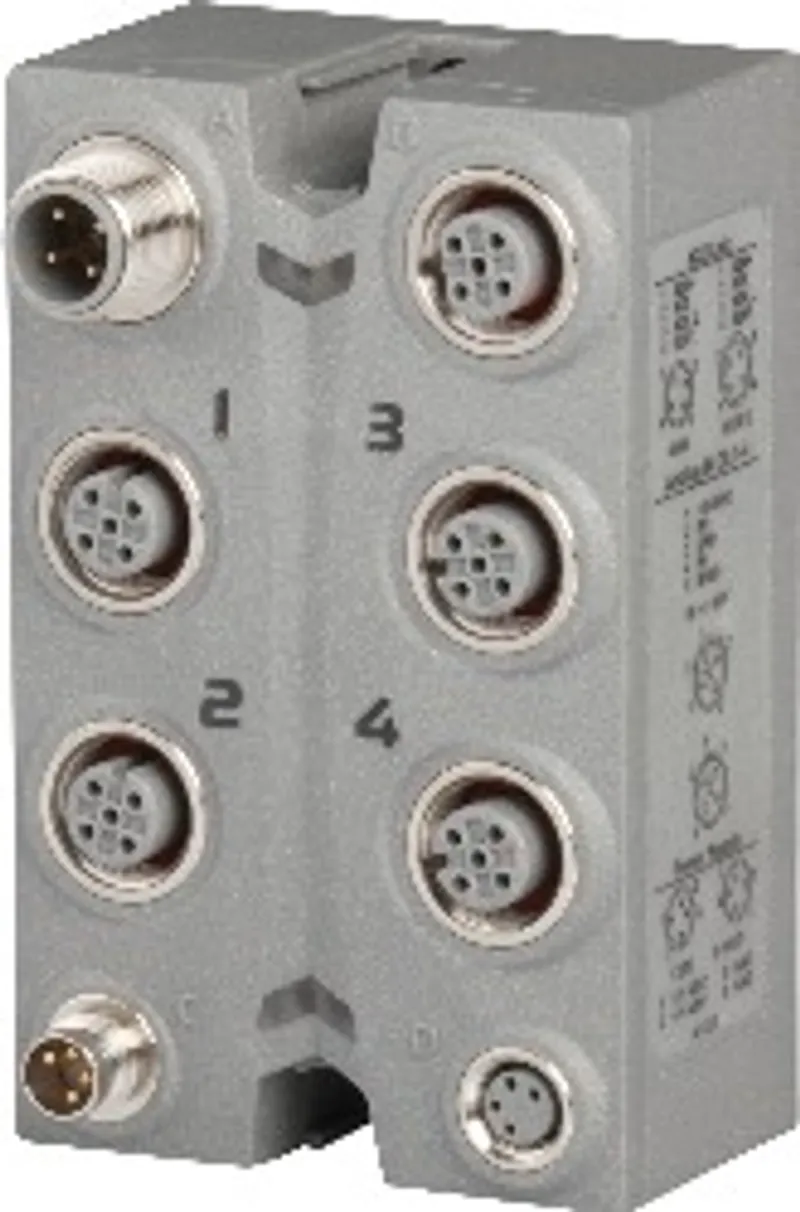

B&R X67SM2446-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motor modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 195 kg |
Shipping & availability
When can X67SM2446-1 be shipped?
X67SM2446-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67SM2446-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67SM2446-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67SM2446-1, subject to availability and destination.
2 stepper motors, 24 to 48 VDC ±25%, 4 A (8 A peak)Resolution of current values at 1%Boost, nominal and holding current separately configurableSensorless, load-dependent current controlIntegrated motor detection256 microsteps per stepStall detectionComplete integration in Automation Studio and CNC applications6 inputs, 24 VDC, configurable for ABR incremental encodersOpen-circuit detection for 2 push-pull encodersFunction model "Ramp" based on CANopen communication profile DS402NetTime timestamp: Position change, trigger time The stepper motor module is used to control stepper motors with a nominal voltage of 24 to 48 VDC (±25%) at a motor current up to 4 A (8 A peak). In addition, this module has 6 digital inputs that can be used as limit switches or encoder inputs.Due to the individual adjustment of the coil currents, the motor is only operated with the current it actually needs. This simplifies the selection of the available motors and prevents unnecessary heating. Because this affects energy consumption and thermal load, the effects are positive on the service life of the complete system. Complete flexibility is achieved through the use of independently adjustable holding, maximum and nominal current values. The current for microsteps is automatically adjusted to the configured current values.In addition, the module contains a sensorless, load-dependent current control. Depending on the operating situation and load, the module controls the current downwards. Energy savings up to 75% are possible in this way. The automatic motor identification system is an enormous help during standstills. The stepper motor modules can identify the connected motors using their coil characteristics and generate feedback in the form of an analog value. This makes it possible to detect not only wiring errors, but also incorrect motor types being used mistakenly. "Stall detection" is integrated to analyze the motor load. Detection of the stall is defined via a configurable threshold. This allows an overload or motor standstill to be detected precisely in many different types of applications.
Specifications
Specifications
| I/O module | X67 2-channel stepper motor module 4 A, 48 VDC, 6 inputs, sink |
| B&R ID code | 0xF3EC |
| Status indicators | I/O function per channel, supply voltage, bus function |
| Module run/error | Yes, using LED status indicator and software |
| Open circuit | Yes, using LED status indicator and software |
| I/O power supply | M8, 4-pin |
| Motor status | Yes, using LED status indicator and software |
| X2X Link | M12, B-coded |
| Inputs/Outputs | 4x M12, A-coded |
| X2X Link power supply | 0.75 W |
| At 48 VDC | 2 W |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| Quantity | 2 |
| Type | Stepper motor (full-bridge) |
| Nominal voltage | 24 VDC |
| Nominal current | 4 A |
| Max. current/motor | 8 A for 1 s (after a recovery time of at least 9 s at maximum 3.27 A) |
| Max. current/module | 8 A |
| Step resolution | 256 microsteps per full step |
| Reverse polarity protection | Yes |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 24 VDC ±20% |
| Input current at 24 VDC | Approx. 1.8 mA |
| Input circuit | Sink |
| Hardware | <5 µs |
| Software | - |
| Input resistance | Typ. 15 kΩ |
| Additional functions | 2x ABR incremental encoderOpen-circuit detection |
| Low | <5 VDC |
| High | >15 VDC |
| Insulation voltage between channel and bus | 500 Veff |
| Encoder inputs | 24 V, asymmetrical |
| Counter size | 16-bit |
| Evaluation | 4x |
| Encoder power supply | Module-internal, max. 20 mA per encoder |
| Signal form | Square wave pulse |
| Counter 1 | Inputs 1 to 3 |
| Counter 2 | Inputs 4 to 6 |
| Counter frequency | Max. 50 kHz |
| Supply voltage | 24 VDC |
| Short-circuit proof | Yes |
| Min. voltage at 20 mA / group | 21 VDC |
| Electrical isolation | Channel isolated from busChannel not isolated from channel |
| Any | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
| Operation | -25 to 60°C |
| Derating | - |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Width | 53 mm |
| Height | 85 mm |
| Depth | 42 mm |
| Weight | 195 |
| M8 | Max. 0.4 Nm |
| M12 | Max. 0.6 Nm |
