B&R X67AT1402

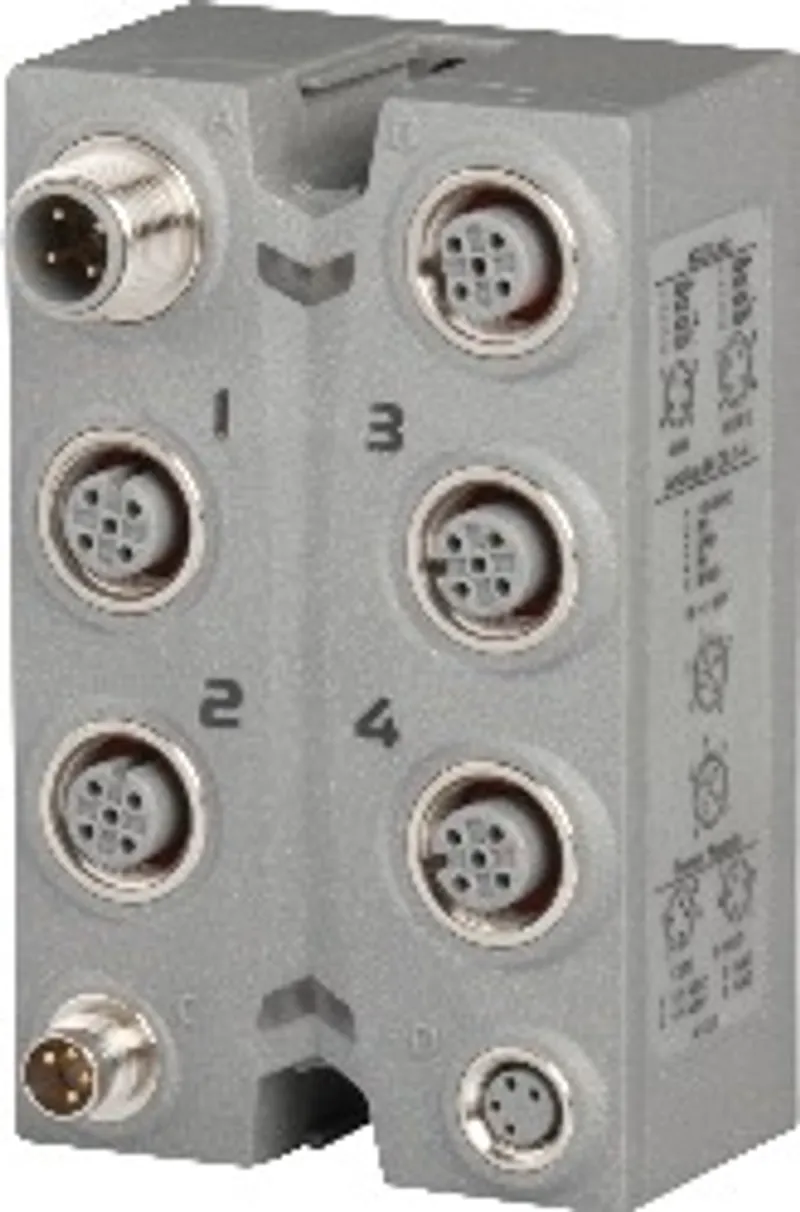

I/O module, 4 inputs for thermocouple sensors

MPN
X67AT1402
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the B&R X67AT1402?

4 inputs for thermocouple sensors

Sensor types J, K, N, R and S

Additional direct raw value measurement for other sensor types

Terminal temperature compensation

The module is a temperature module for type J, K, N, R and S thermocouple sensors. The selected sensor type is used for all 4 inputs.

Specifications

Short description

I/O module4 inputs for thermocouple sensors

General information

Diagnostics – InputsYes, using LED status indicator and software
Diagnostics – I/O power supplyYes, using LED status indicator and software
Connection type – X2X LinkM12, B-coded
Connection type – Inputs4x M12, A-coded
Connection type – I/O power supplyM8, 4-pin
Power consumption – Internal I/O2.6 W
Power consumption – X2X Link power supply0.75 W
Certifications – CEYes
Certifications – UKCAYes
Certifications – CRA (Cyber Resilience Act)In preparation
Certifications – ATEXZone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – ULcULus E115267; Industrial control equipment
Certifications – HazLoccCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KCYes
B&R ID code0x1486
Status indicatorsI/O function per channel, supply voltage, bus function

I/O power supply

Nominal voltage24 VDC
Voltage range18 to 30 VDC
Integrated protective functionReverse polarity protection

Thermocouple temperature inputs

Measurement range – Type J: Fe-CuNi-210 to 1200°C
Measurement range – Type K: NiCr-Ni-270 to 1372°C
Measurement range – Type N: NiCrSi-NiSi-270 to 1300°C
Measurement range – Type S: PtRh10-Pt-50 to 1768°C
Measurement range – Type R: PtRh13-Pt-50 to 1768°C
Measurement range – Terminal temperature-25 to 85°C
Measurement range – Raw value±65.534 mV
Resolution – Sensor temperature1 LSB = 0.1°C
Resolution – Terminal temperature1 LSB = 0.1°C
Resolution – Raw value output with respect to gain1 LSB = 1 µV or 2 µV
Normalization – Type J: Fe-CuNi-210.0 to 1200.0°C
Normalization – Type K: NiCr-Ni-270.0 to 1372.0°C
Normalization – Type N: NiCrSi-NiSi-270.0 to 1300.0°C
Normalization – Type S: PtRh10-Pt-50.0 to 1768.0°C
Normalization – Type R: PtRh13-Pt-50.0 to 1768.0°C
Monitoring – Range undershoot0x8001
Monitoring – Range overshoot0x7FFF
Monitoring – Open circuit0x7FFF
Monitoring – Open inputs0x7FFF
Monitoring – General fault0x8000
Max. error at 25°C – Type J: Fe-CuNi±0.024% (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. error at 25°C – Type K: NiCr-Ni±0.030% (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. error at 25°C – Type N: NiCrSi-NiSi±0.035% (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. error at 25°C – Type S: PtRh10-Pt±0.088% (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. error at 25°C – Type R: PtRh13-Pt±0.078% (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. error at 25°C – Gain±0.040% (note: Refers to the current measurement without consideration of the reference junction measurement error.)
Max. offset drift – Type J: Fe-CuNi0.0024%/°C (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. offset drift – Type K: NiCr-Ni0.0030%/°C (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. offset drift – Type N: NiCrSi-NiSi0.0035%/°C (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. offset drift – Type S: PtRh10-Pt0.0089%/°C (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Max. offset drift – Type R: PtRh13-Pt0.0079%/°C (note: Based on the entire measurement range without consideration of the cold junction measurement error.)
Common-mode rejection – DC>70 dB
Common-mode rejection – 50 Hz>70 dB
Input filter – Cutoff frequency4 Hz / First-order filter
Input filter – Slope-20 dB
InputThermocouple
Digital converter resolution16-bit
Filter timeConfigurable between 2 and 20 ms
Output formatINT
Terminal temperature compensationUsing thermocouple connector X67AC9A02 (accessory) (note: At least one terminal temperature sensor is required to determine the temperature measured at the J, K and S thermocouple sensors.)
Sensor standardIEC 60584-1
Conversion procedureSigma-delta
Linearization methodSoftware
Permissible input signalShort-term ±30 VDC
Max. gain drift0.0123%/°C (note: Refers to the current measurement without consideration of the reference junction measurement error.)
Nonlinearity<0.002% (note: Based on the entire measurement range)
Common-mode range±12 VDC
Crosstalk between channels<-70 dB
Terminal temperature errorTyp. ±2°C after 10 min. (note: For slight temperature differences between environment and module mounting area.)
Insulation voltage between channel and bus500 V eff
Conversion time62 ms per channel with 50 Hz filter + 62 ms per cycle for terminal temperature measurement with 50 Hz filter

Electrical properties

Electrical isolationChannel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – AnyYes
Installation elevation above sea level – 0 to 2000 mNo limitation
Installation elevation above sea level – >2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP67

Ambient conditions

Temperature – Operation-25 to 60°C
Temperature – Derating-
Temperature – Storage-40 to 85°C
Temperature – Transport-40 to 85°C

Mechanical properties

Dimensions – Width53 mm
Dimensions – Height85 mm
Dimensions – Depth42 mm
Torque for connections – M8Max. 0.4 Nm
Torque for connections – M12Max. 0.6 Nm
Weight205 g

X67AT1402: frequently asked questions

When can X67AT1402 be shipped?

X67AT1402 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67AT1402 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67AT1402 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67AT1402, subject to availability and destination.
