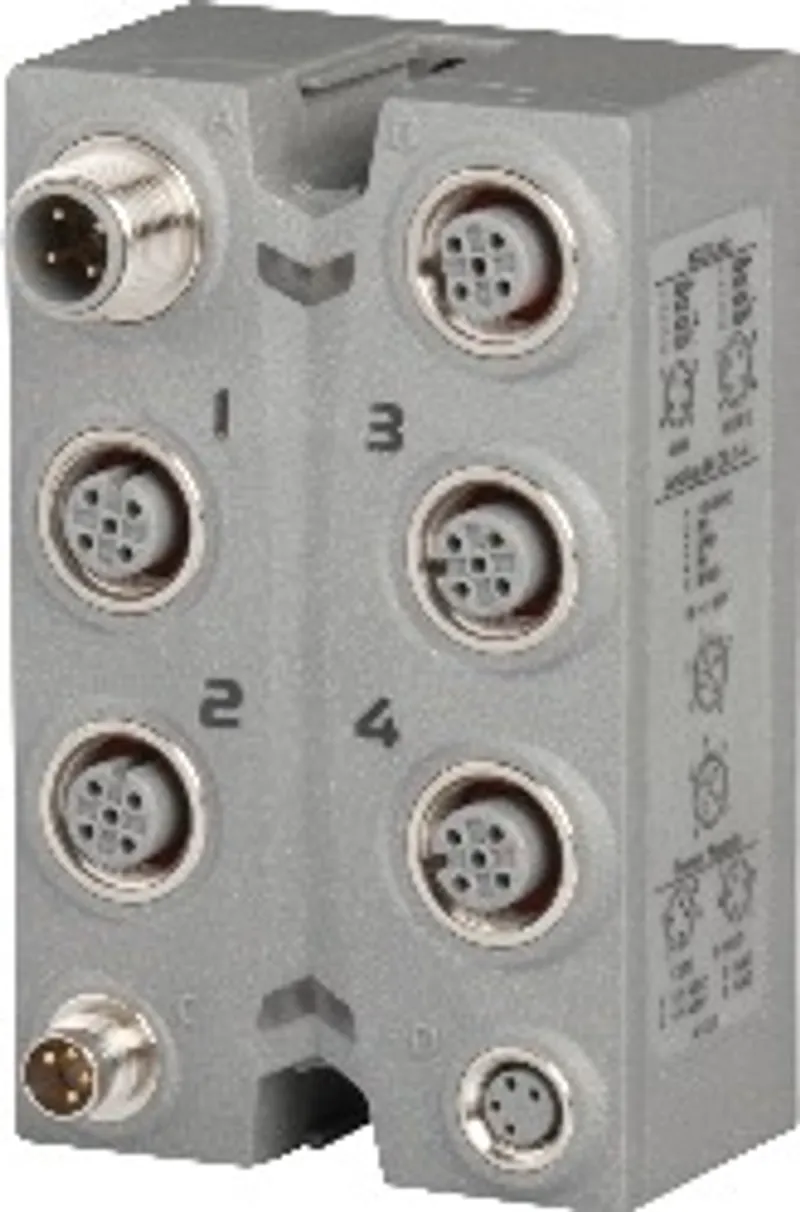

B&R X67AT1322

I/O module, 4 inputs for KTY10-6, KTY84-130

MPN: X67AT1322
Category: Temperature modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67AT1322?

4 inputs for resistance temperature measurement

PT100, PT1000 and other resistance temperature sensors

Direct resistance measurement

Configurable sensor type per channel

2-wire and 4-wire measurement

The module is a temperature module for KTY10, KTY84, Pt100 and Pt1000 resistance temperature sensors. The sensors can be connected with 2-wire or 4-wire connections. The sensor type can be set selectively for each input.

Specifications

Short description

I/O module

4 inputs for KTY10-6, KTY84-130, Pt100 or Pt1000 resistance temperature measurement

General information

Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	1.5 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1488
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Resistance measurement temperature inputs

Conversion time – Same sensor types	75 ms per channel with 50 Hz filter
Conversion time – When switching sensor type	195 ms per channel with 50 Hz filter
Sensor – Sensor type	Configurable per channel
Sensor – KTY10-6	-50 to 145°C
Sensor – KTY84-130	-40 to 300°C
Sensor – Pt100	-200 to 850°C
Sensor – Pt1000	-200 to 850°C
Max. error at 25°C – Gain	0.01% (note: Based on the current measured resistance value.)
Max. error at 25°C – Offset	0.015% (note: Based on the entire resistance measurement range.)
Temperature sensor resolution – KTY10-6	1 LSB = 0.1°C (note: Based on the full converter resolution for resistance measurement without correction calculation.)
Temperature sensor resolution – KTY84-130	1 LSB = 0.1°C (note: Based on the full converter resolution for resistance measurement without correction calculation.)
Temperature sensor resolution – Pt100	1 LSB = 0.1°C (note: Based on the full converter resolution for resistance measurement without correction calculation.)
Temperature sensor resolution – Pt1000	1 LSB = 0.1°C (note: Based on the full converter resolution for resistance measurement without correction calculation.)
Resistance measurement resolution – G = 1	1 LSB = Typ. 69.1223 mΩ ±0.1%
Resistance measurement resolution – G = 2	1 LSB = Typ. 34.5611 mΩ ±0.1%
Input filter – Cutoff frequency	115 Hz / First-order filter
Input filter – Slope	-20 dB
Common-mode rejection – 50 Hz	>70 dB
Common-mode rejection – DC	>70 dB
Temperature measurement monitoring – Range undershoot	0x8001
Temperature measurement monitoring – Range overshoot	0x7FFF
Temperature measurement monitoring – Open circuit	0x7FFF
Temperature measurement monitoring – General fault	0x8000
Temperature measurement monitoring – Open inputs	0x7FFF
Resistance measurement monitoring – Range undershoot	0x0000
Resistance measurement monitoring – Range overshoot	0xFFFF
Resistance measurement monitoring – Open circuit	0xFFFF
Resistance measurement monitoring – General fault	0xFFFF
Resistance measurement monitoring – Open inputs	0xFFFF
Input	Resistance measurement with constant current supply for 2- or 4-wire connections
Digital converter resolution	16-bit
Filter time	Configurable between 2 and 20 ms
Conversion procedure	Sigma-delta
Output format	INT or UINT for resistance measurement
Resistance measurement range	0.1 to 4500 Ω / 0.05 to 2250 Ω
Sensor standard	EN 60751
Common-mode range	±1 VDC
Insulation voltage between channel and bus	500 V eff
Linearization method	Software
Measuring current	250 µA ±1.25%
Reference	4530 Ω ±0.1%
Permissible input signal	Short-term max. ±30 V
Max. gain drift	0.003 %/°C (note: Based on the current measured resistance value.)
Max. offset drift	5.25 mΩ/°C (note: Based on the entire resistance measurement range.)
Nonlinearity	<0.002% (note: Based on the entire resistance measurement range.)
Crosstalk between channels	<-70 dB

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	200 g
