B&R X67AO1323

I/O module, 4 analog outputs 0 to 20 mA

MPN: X67AO1323
Category: Analog output modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

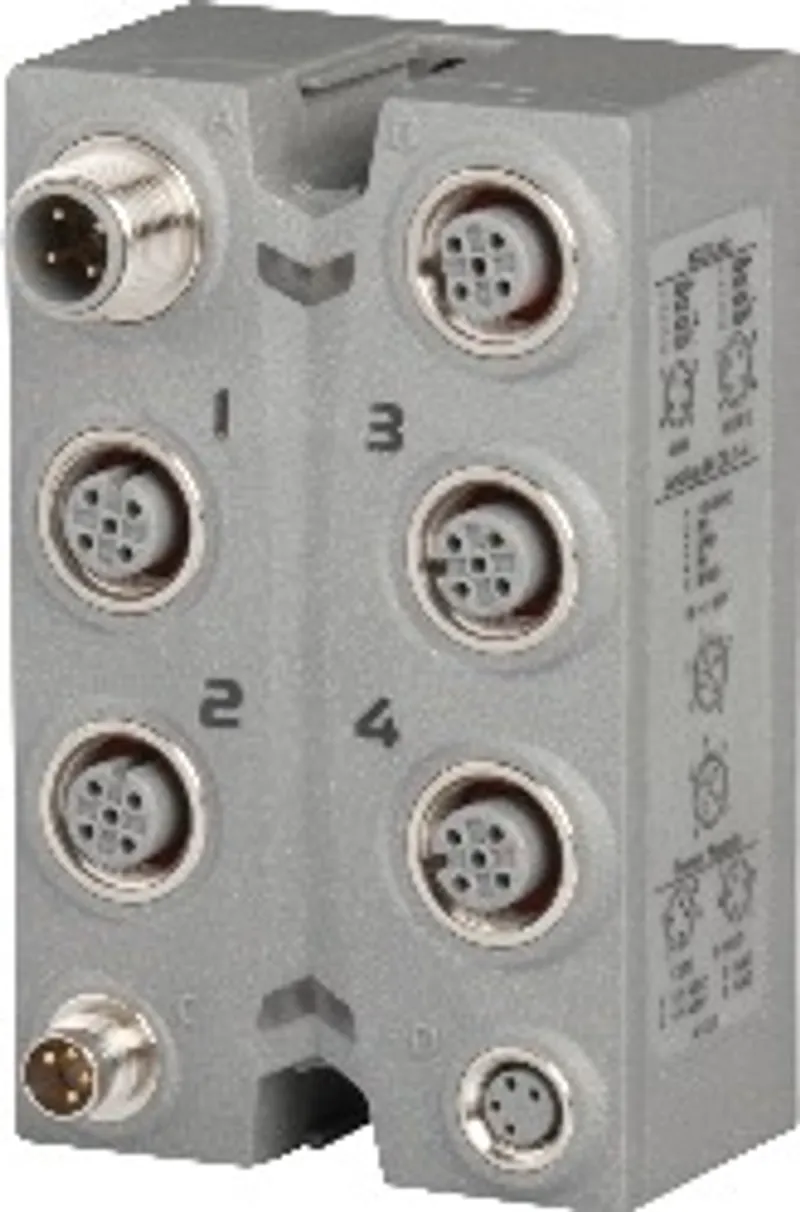

What is the B&R X67AO1323?

4 analog outputs 0 to 20 mA

Integrated enable relay for initial phase

Very short cycle times

Optimal shield grounding on all channels

The module is equipped with 4 outputs with 12-bit digital converter resolution. The range of the output signal is 0 to 20 mA .

Specifications

Short description

I/O module

4 analog outputs 0 to 20 mA

General information

Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Outputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	4.5 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x16F4
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Actuator power supply	Max. 12 W (note: The power consumption of the sensors connected to the module is not permitted to exceed 12 W.)
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Analog outputs

Short-circuit proof – Current limiting	±40 mA
Short-circuit proof – To GND	Yes
Short-circuit proof – To sensor or I/O power supply	Yes
Max. error at 25°C and 50 Ω load – Gain	0.2% (note: Based on the current output value.)
Max. error at 25°C and 50 Ω load – Offset	0.05% (note: Based on the entire output range.)
Output	0 to 20 mA
Digital converter resolution	12-bit
Conversion time	400 µs for all outputs
Settling time on output change over entire range	Approx. 1 ms
Switch on/off behavior	Internal enable relay for startup and errors
Output protection	Protection against wiring with supply voltage, short-circuit proof
Output format	Example: INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Load per channel	Max. load is 400 Ω
Output filter	Example: First-order low-pass filter / cutoff frequency 1.5 kHz
Max. gain drift	0.015%/°C (note: Based on the current output value.)
Max. offset drift	0.032%/°C (note: Based on the entire output range.)
Error caused by load change	Max. 0.5%, from 1 Ω → 400 Ω, resistive
Nonlinearity	<0.1% (note: Based on the entire output range.)
Insulation voltage between channel and bus	500 V eff
Output response when the power supply is switched on/off	An enable relay is switched on at a defined value ≠ 0, default setting = 10 kΩ to GND

Actuator power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	190 g
