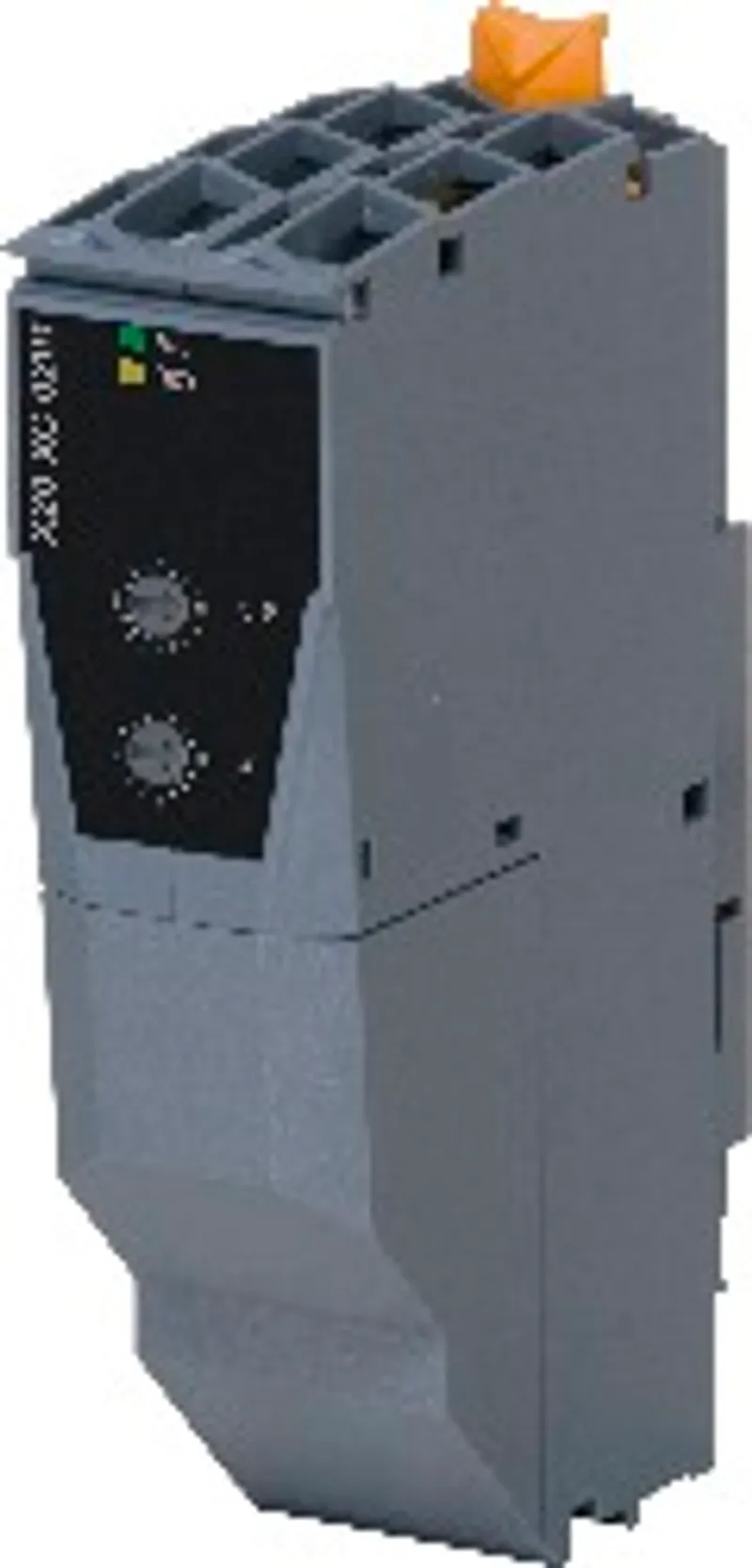

B&R X20XC0201

System module, CPU

MPN: X20XC0201

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20XC0201?

Embedded µP16 with additional I/O processor

100 kB User SRAM

1 MB User FlashPROM

Up to 2 slots for fieldbus modules

Only 62.5 mm wide

Battery-free

Fieldbus CPUs are variations of Compact CPUs. In addition to these features, there is also the option of connecting fieldbus modules to the left side. These CPUs make applications possible in which data preprocessing has to take place remotely within the I/O bus connection.

The X20XC0201 is the entry-level X20 Fieldbus CPU. This CPU is used when a cycle time of 2 ms (typ. 5 ms) is sufficient and the cost/performance ratio is a key factor.

Specifications

Short description

System module

CPU

General information

Diagnostics – CPU function	Yes, using LED status indicator
Support – ACOPOS support	Limited (User PROM) via CAN bus
Support – Visual Components support	Limited (User PROM)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x2563
Status indicators	CPU function
Temperature sensor	No
Power consumption	2 W
Additional power dissipation caused by actuators (resistive) [W]	-

Controller

Processor – Type	Embedded µP 16
Permanent variables – Retention time	>10 years
Permanent variables – Memory	2.75 kB FRAM (note: This FRAM stores its contents ferroelectrically. A backup battery is therefore no longer required.)
Standard memory – User PROM	1 MB FlashPROM
Standard memory – User RAM	100 kB SRAM (note: Not backed up.)
Slots for interface modules – X20BB3x	1
Slots for interface modules – X20BB4x	2
Real-time clock	Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C (note: The real-time clock is backed up for approx. 1000 hours by a gold foil capacitor. The gold foil capacitor is completely charged after 18 continuous hours of operation.)
Integrated I/O processor	Processes I/O data points in the background
Backup battery	No
Shortest task class cycle time	4 ms
Typical instruction cycle time	0.8 µs

Interfaces

On base module – X20BB32 and X20BB42	Fieldbus CPU base module with integrated RS232 interface (note: For technical data, see the data sheet for power supply module X20PS9500.)
On base module – X20BB37 and X20BB47	Fieldbus CPU base module with integrated RS232 and CAN interface (note: For technical data, see the data sheet for power supply module X20PS9502.)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch – X20BB3x	62.5 +0.2 mm (note: The pitch is based on the width of Fieldbus CPU base X20BB3x/4x. The CPU always requires up to two fieldbus modules and one X20PS9500 or X20PS9502 power supply module.)
Pitch – X20BB4x	87.5 +0.2 mm (note: The pitch is based on the width of Fieldbus CPU base X20BB3x/4x. The CPU always requires up to two fieldbus modules and one X20PS9500 or X20PS9502 power supply module.)
Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9500 or X20PS9502 separately.; Order 1x Fieldbus CPU base X20BB3x/4x separately.

Accessories

Required accessories (order separately)

X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20PS9502	Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Cost-effective power supply module for small X20 system…
X20PS9500	Undefined — Supply for Compact or Fieldbus CPU, X2X Link network and internal I/O power supply; Electrical isolation of supply and CPU / X2X Link power…
X20BB47	Undefined — Base for all X20 Fieldbus CPUs; 2 slots for interface modules; RS232 connection; CAN bus connection; Integrated terminating resistor for CA…
X20BB42	Undefined — Base for all X20 Fieldbus CPUs; 2 slots for interface modules; RS232 connection The bus module is a base for all X20 Fieldbus CPUs. It is e…
X20BB37	Undefined — Base for all X20 Fieldbus CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is the bas…
X20BB32	Undefined — Base for all X20 Fieldbus CPUs; RS232 connection The bus module is the base for all X20 Fieldbus CPUs. The left and right end cover plates…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.
