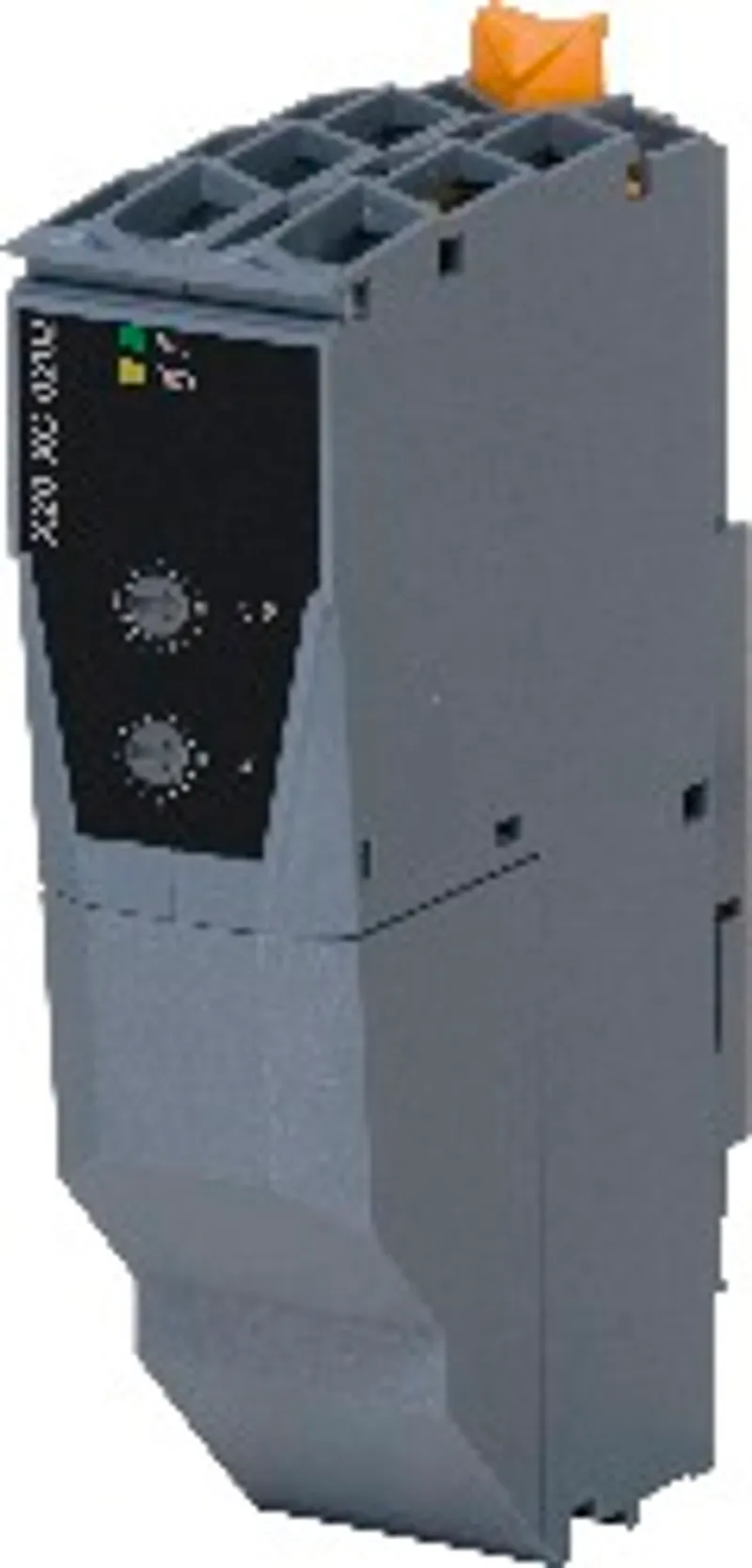

B&R X20XC0202
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20XC0202 be shipped?
X20XC0202 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20XC0202 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20XC0202 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20XC0202, subject to availability and destination.
Embedded µP25 with additional I/O processor750 kB User SRAM3 MB User FlashPROMUp to 2 slots for fieldbus modulesOnly 62.5 mm wideBattery-free Fieldbus CPUs are variations of Compact CPUs. In addition to these features, there is also the option of connecting fieldbus modules to the left side. These CPUs make applications possible in which data preprocessing has to take place remotely within the I/O bus connection. Equipped with Embedded µP 25 and additional memory, the X20XC0202 is predestined for drive and visualization applications.
Specifications
Specifications
| System module | CPU |
| B&R ID code | 0x2564 |
| Status indicators | CPU function |
| CPU function | Yes, using LED status indicator |
| Overtemperature | Yes, using software |
| Temperature sensor | Yes |
| ACOPOS support | Yes, via CAN bus |
| Visual Components support | Yes |
| Power consumption | 2.2 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| Real-time clock | Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C |
| Type | Embedded µP 25 |
| Integrated I/O processor | Processes I/O data points in the background |
| Backup battery | No |
| Shortest task class cycle time | 2 ms |
| Typical instruction cycle time | 0.5 µs |
| Retention time | >10 years |
| Memory | 2.75 kB FRAM |
| User PROM | 3 MB FlashPROM |
| User RAM | 750 kB SRAM |
| X20BB3x | 62.5+0.2 mm |
| X20BB4x | 87.5+0.2 mm |
| X20BB32 and X20BB42 | Fieldbus CPU base module with integrated RS232 interface |
| X20BB37 and X20BB47 | Fieldbus CPU base module with integrated RS232 and CAN interface |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9500 or X20PS9502 separately. Order 1x Fieldbus CPU base X20BB3x/4x separately |
