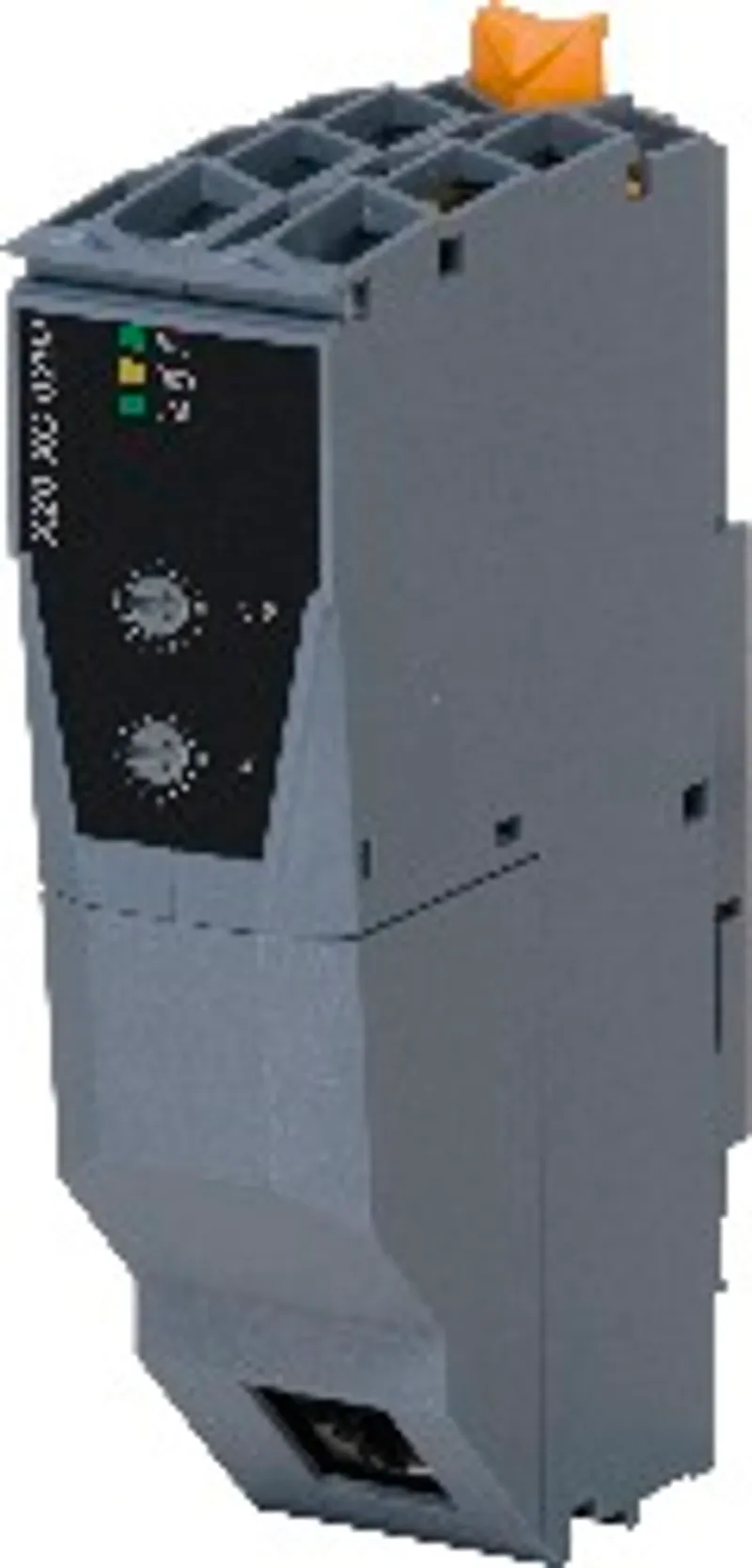

B&R X20XC0292

Name: B&R X20XC0292
Brand: B&R
SKU: X20XC0292

MPN: X20XC0292 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20XC0292 be shipped?

X20XC0292 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20XC0292 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20XC0292 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20XC0292, subject to availability and destination.

Embedded µP25 with additional I/O processor750 kB User SRAM3 MB User FlashPROMOnboard EthernetUp to 2 slots for fieldbus modulesOnly 62.5 mm wideBattery-free Fieldbus CPUs are variations of Compact CPUs. In addition to these features, there is also the option of connecting fieldbus modules to the left side. These CPUs make applications possible in which data preprocessing has to take place remotely within the I/O bus connection. Equipped with Embedded µP 25 and additional memory, the X20XC0292 is predestined for drive and visualization applications. Unlike X20XC0202, the X20XC0292 is equipped with an onboard Ethernet interface.

Specifications

Interfaces	1x onboard Ethernet
System module	CPU
B&R ID code	0xA252
Status indicators	CPU function, Ethernet
CPU function	Yes, using LED status indicator
Ethernet	Yes, using LED status indicator
Overtemperature	Yes, using software
Temperature sensor	Yes
ACOPOS support	Yes, via CAN bus
Visual Components support	Yes
Power consumption	2.8 W
Additional power dissipation caused by actuators (resistive) [W]	-
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS	Yes
LR	ENV1
KR	Yes
ABS	Yes
BV	EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC	Yes
Real-time clock	Yes, resolution 1 s, -18 to 28 ppm accuracy at 25°C
Type	Embedded µP 25
Integrated I/O processor	Processes I/O data points in the background
Backup battery	No
Shortest task class cycle time	2 ms
Typical instruction cycle time	0.5 µs
Retention time	>10 years
Memory	2.75 kB FRAM
User PROM	3 MB FlashPROM
User RAM	750 kB SRAM
X20BB3x	62.5+0.2 mm
X20BB4x	87.5+0.2 mm
Signal	Ethernet
Variant	1x RJ45 shielded
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Physical layer	100BASE-TX
Half-duplex	Yes
Full-duplex	No
Autonegotiation	No
Auto-MDI/MDIX	Yes
X20BB32 and X20BB42	Fieldbus CPU base module with integrated RS232 interface
X20BB37 and X20BB47	Fieldbus CPU base module with integrated RS232 and CAN interface
Horizontal	Yes
Vertical	Yes
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
Operation	5 to 95%, non-condensing
Note	Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9500 or X20PS9502 separately. Order 1x Fieldbus CPU base X20BB3x/4x separately
